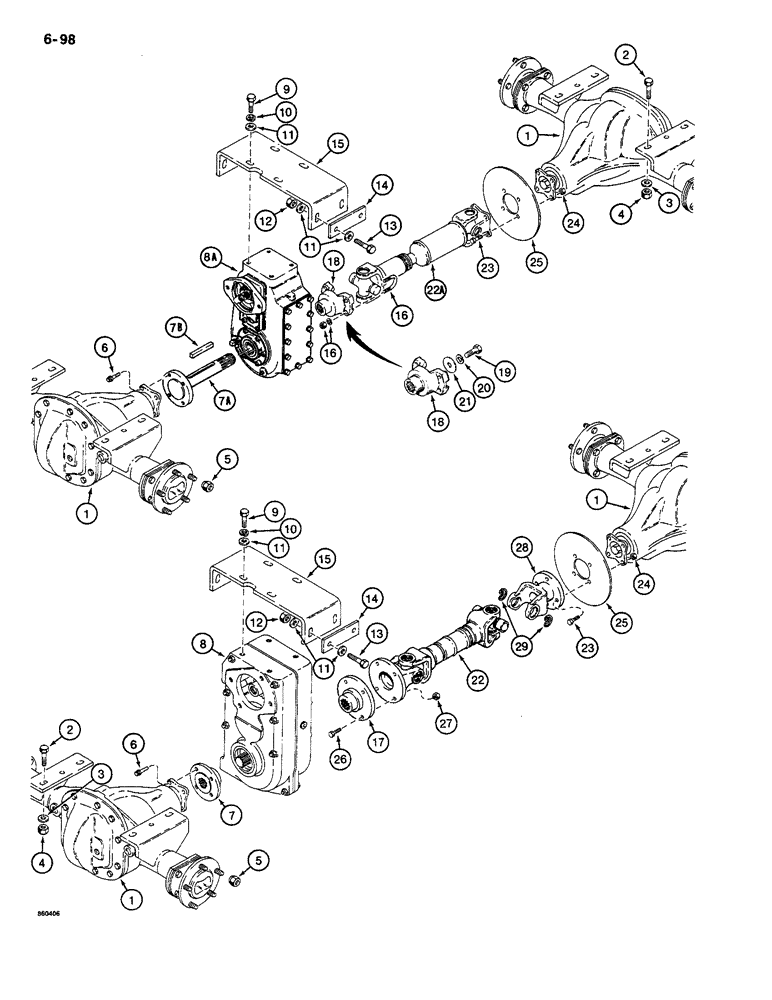

Запчасти Case CASE (6-098) - DRIVE LINE MOUNTING (06) - POWER TRAIN

1

REF

INSTRUCTION

AXLE ASSEMBLY - for correct assembly and component parts see figures 6-112 - 6-114

2шт.

2

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

3

H274894

WASHER

- special

8шт.

4

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC, plated

8шт.

5

N4221

WHEEL NUT

- wheel

20шт.

6

166-543

12 PT SCREW,Flg, 3/8" - 24 x 3/4", Gr 8

BOLT - special

4шт.

7

H415497

SHIN

FLANGE - companion, used with H660126 transmission

1шт.

7a

H629246

SHAFT

- adapter, used with H633578 and H655571 transmission

1шт.

7b

H33308

KEY

- shaft, used with item 7A

1шт.

8

H660126

TRANSMISSION

ASSEMBLY - ground drive, see figure 6-108

1шт.

8a

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - ground drive, for correct assembly and components see figures 6-100 through 6-106

1шт.

9

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

11

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", hardened, plated

12шт.

12

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC, plated

4шт.

13

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

14

H343764

SPACER

- transmission mount

2шт.

15

H343715

CROSSMEMBER

BRACKET - transmission mount

1шт.

16

H183566

BOLT

U-BOLT - includes hardware

2шт.

17

H627547

YOKE - transmission to drive shaft, used with H660126 transmission

1шт.

18

H343707

YOKE

- transmission to drive shaft, used with H633578 or H655571 transmission

1шт.

19

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Used with ref. 18 Hex, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

20

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Used with ref. 18 1/2"

1шт.

21

H343723

BOLT - special, used with ref. 18

1шт.

22

H661199

DRIVE SHAFT

ASSEMBLY - square end, see figure 6-110

1шт.

22a

H588541

DRIVE SHAFT

ASSEMBLY - splined end, see figure 6-110

1шт.

23

H264523

BOLT

BOLT - special, drive shaft to brake disc

4шт.

24

131-1133

NUT,3/8"-24, GC

NUT - hex, self-locking, 3/8" - 24 NF, plated

4шт.

25

H258095

DISC

- brake

1шт.

26

H339598

BOLT

- special, yoke to drive shaft

4шт.

27

131-1119

LOCK NUT,7/16"-24, GA

NUT - hex, self-locking, 7/16" - 20 NF, plated

4шт.

28

H661207

YOKE - drive shaft to axle, Includes: Ref. 29

2шт.

29

NSS

NOT SOLD SEPARAT

SNAP RING - bearing retaining

2шт.
