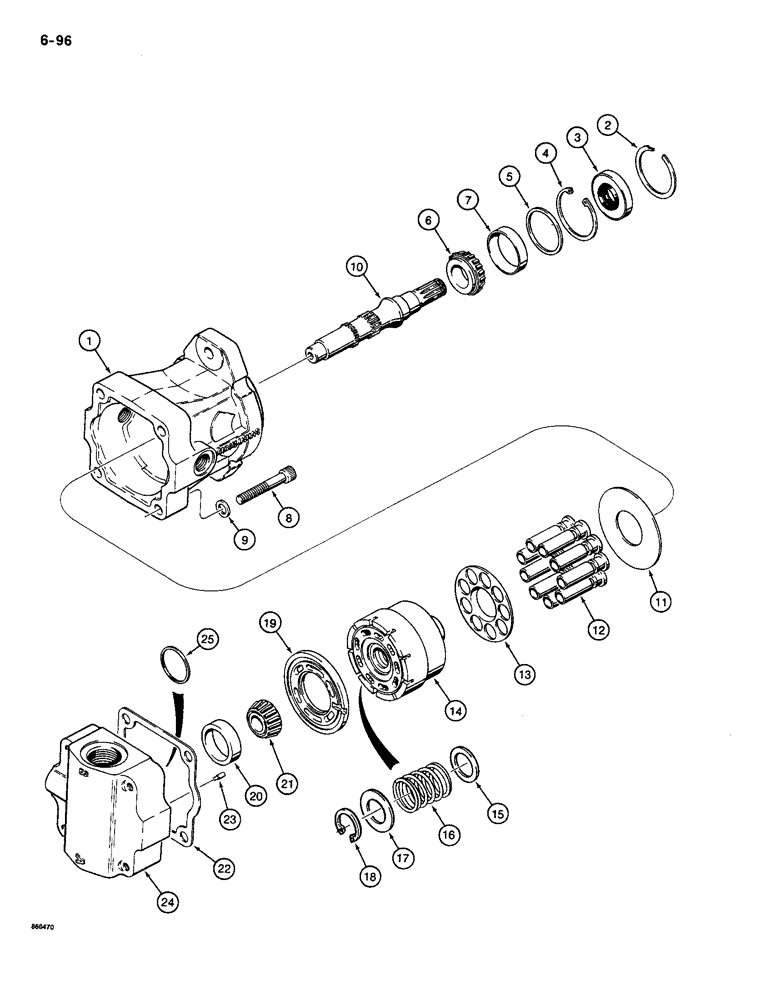

Запчасти Case CASE (6-096) - GROUND DRIVE MOTOR (06) - POWER TRAIN

H624759

MOTOR, ELECTRIC

MOTOR ASSEMBLY - ground drive, Sundstrand No. 18-3027, Includes: Refs. 1-25

1шт.

1

H354118

HOUSING

- output shaft end

1шт.

2

H757898

RING

RETAINING RING - seal

1шт.

3

H756296

SEAL

- shaft, output

1шт.

4

B13252

RING, SNAP

RETAINING RING - bearing, shaft

1шт.

5

H354050

WASHER

- special

1шт.

H632505

CUP

BEARING KIT - output shaft, outer, Includes: Refs. 6, 7

1шт.

6

D29266

ROLLER BEARING,1" ID x 0.58"

CONE - bearing

1шт.

7

D29267

BEARING CUP,1.98" OD x 0.42"

CUP - bearing

1шт.

8

61-740

HEX SOC SCREW,7/16"-14 x 2 1/2"

SCREW - hex socket head, 7/16" - 16 NC x 2-1/2"

4шт.

9

195-105

WASHER,7/16"

- flat, , plated 7/16"

4шт.

10

H354100

SHAFT

- output

1шт.

11

H351379

PLATE, THRUST

PLATE - thrust

1шт.

H632489

BLOCK

KIT - cylinder block, motor, Includes: Refs. 12-18

1шт.

12

NSS

NOT SOLD SEPARAT

PISTON - motor

9шт.

13

NSS

NOT SOLD SEPARAT

RETAINER - piston

1шт.

14

NSS

NOT SOLD SEPARAT

BLOCK - piston cylinder

1шт.

15

NSS

NOT SOLD SEPARAT

THRUST WASHER - spring, inner

1шт.

16

NSS

NOT SOLD SEPARAT

SPRING - block

1шт.

17

NSS

NOT SOLD SEPARAT

WASHER - spring, outer

1шт.

18

NSS

NOT SOLD SEPARAT

SNAP RING - block

1шт.

19

H351387

LARGE PLATE

PLATE - valve

1шт.

H632497

KIT

BEARING - output shaft, inner, Includes: Refs. 20, 21

1шт.

20

B12410

BEARING, CUP,1.782" OD

CUP - bearing

1шт.

21

B12411

ROLLER BEARING,0.75" ID x 0.655"

CONE - bearing

1шт.

22

H354076

GASKET

- housing

1шт.

23

H351445

PIN

- housing alignment

1шт.

24

H354084

CAP

END CAP - motor

1шт.

25

N9525

SHIM,.010" Thk

(0.25 mm), if required .010" Thk

1шт.
