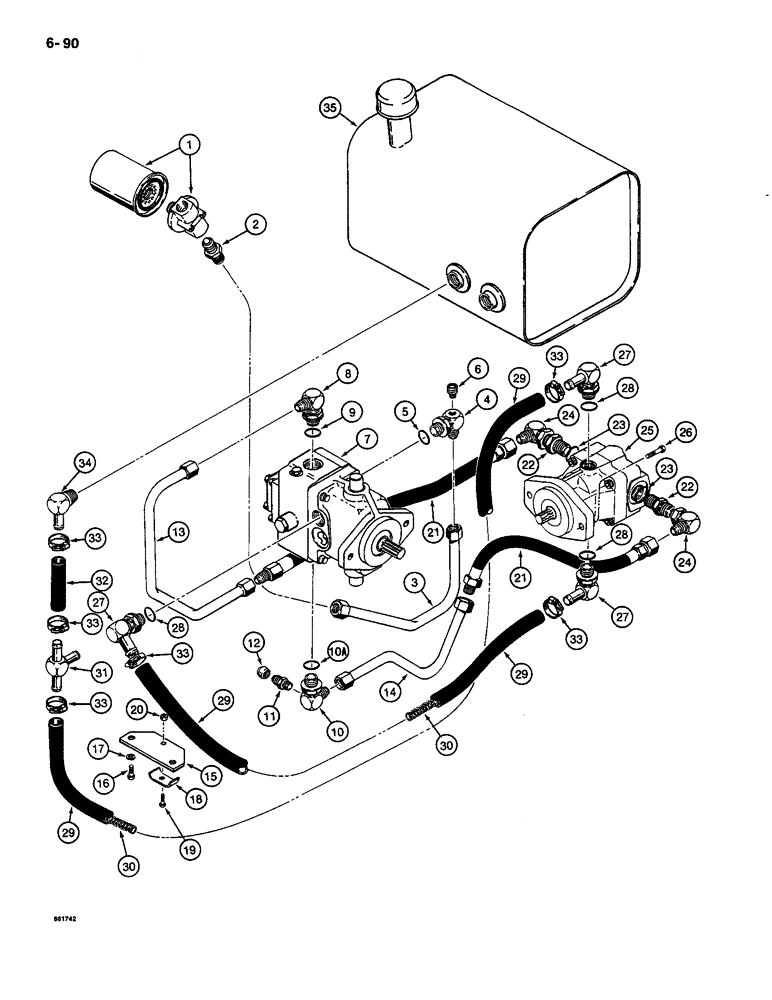

Запчасти Case CASE (6-090) - GROUND DRIVE HYDRAULIC SYSTEM (06) - POWER TRAIN

1

REF

INSTRUCTION

FILTER - hydraulic oil, see figure 8-134 for related parts at hydraulic reservoir

1шт.

2

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight, male

1шт.

3

H633057

TUBE,0.75" OD

- suction, filter to ground drive pump

1шт.

4

H356543

ELBOW

- 90 degree, special, Includes: Ref. 5

1шт.

5

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

6

H287466

GAUGE ASSY.

INDICATOR - vacuum, tee

1шт.

7

H628040

PUMP, HYDRAULIC

PUMP ASSEMBLY - ground drive, parts list figure 6-92

1шт.

8

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, adjustable, Includes: Ref. 9

1шт.

9

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

10

H219568

ADAPTER

ELBOW - 90 degree, special, Includes: Ref. 10A

1шт.

10a

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

11

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER - straight, male

1шт.

12

218-755

CAP,37 Degree, 3/4"-16

1шт.

13

H633032

TUBE ASSY.,0.75" OD

TUBE - upper port of pump to "B" port of motor

1шт.

14

H633040

TUBE,15.9 mm OD

- lower port of pump to "A" port of motor

1шт.

15

H353201

PLATE - tube clamp mounting

1шт.

16

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

17

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

18

H239061

CLAMP

-, Serial Range: tube-plate

1шт.

19

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

20

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

1шт.

21

H429605

HOSE ASSY.

HOSE - 24" (610 mm) long, to "A" and "B" ports of motor

2шт.

22

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. 23

2шт.

23

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

24

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

Street 90º, 1 1/16"-12, 37º x 1 1/16"-12, 37º Fem Sw

2шт.

25

H624759

MOTOR, ELECTRIC

MOTOR ASSEMBLY - ground drive, parts list figure 6-96

1шт.

26

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

27

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

STEM FITTING - 90 degree, adjustable, Incl. Ref. 28

3шт.

28

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

29

H307767

HOSE - 3/4" (19 mm) ID x 42" (1067 mm) long, case drain from pump and motor to return tee, cut from H381962, see below

2шт.

30

H309906

SPRING

- hose support, 12" (305 mm) long

3шт.

31

L53940

TEE

- special, return, Serial Range: hoses-reservoir

1шт.

32

A9156

HOSE,0.75" ID x 4.50"

- return tee to reservoir cut from D55911, see below 0.75" ID x 4.50"

1шт.

33

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

6шт.

34

217-330

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1" Male NPTF

STEM FITTING - 90 degree, hose to reservoir

1шт.

35

REF

INSTRUCTION

RESERVOIR - hydraulic oil, parts list figure 8-130

1шт.

H381962

HOSE

- bulk, 3/4" (19 mm) ID x 118" (2997 mm) long, use to make ref. 29

1шт.

D55911

HOSE

- bulk, 3/4" (19 mm) ID x (711 mm) long, use top make ref. 32

1шт.
