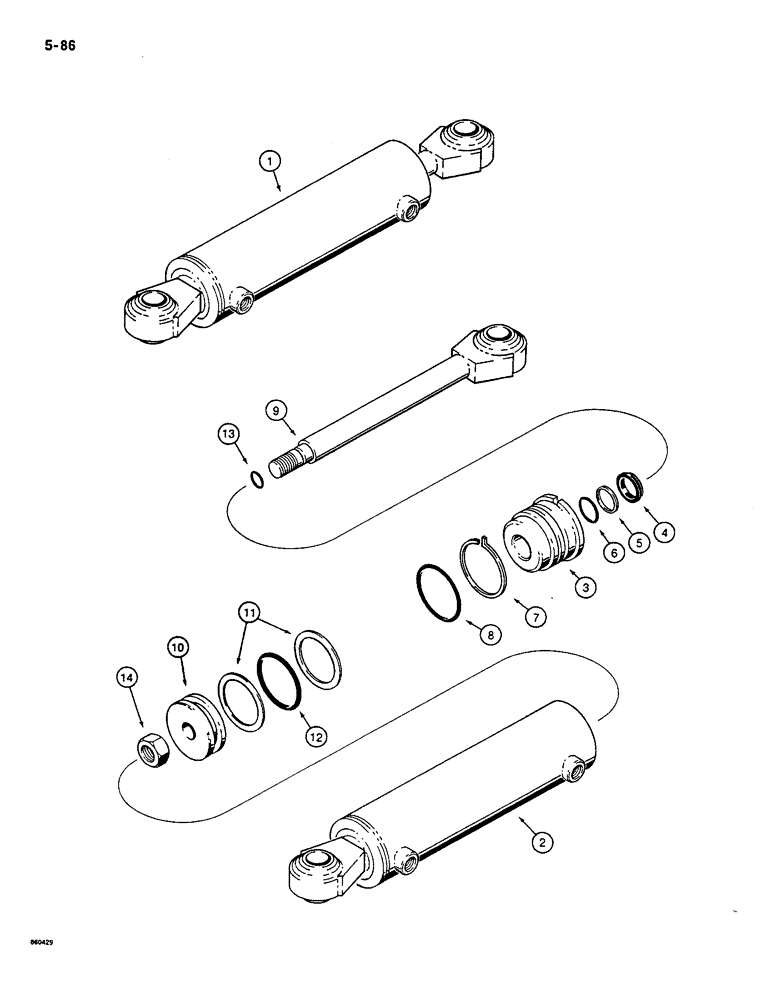

Запчасти Case CASE (5-86) - STEERING CYLINDER (05) - STEERING

1

H624528

STEERING CYLINDER

CYLINDER ASSEMBLY - 2-3/8" (61 mm) ID x 5" (127 mm) stroke, steering, Includes: Refs. 2-14

1шт.

2

H636845

CYLINDER

TUBE - cylinder

1шт.

3

H347765

GLAND

- cylinder

1шт.

4

H755793

RETAINER

WIPER - rod

1шт.

Part of seal kit P/N H630186

1шт.

5

A35899

RING

BACKUP RING - small O-ring, gland inner, piston rod

1шт.

Part of seal kit P/N H630186

1шт.

6

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- small, gland inner, piston rod

1шт.

Part of seal kit P/N H630186

1шт.

7

H207027

LOCK ASSY

WIRE - gland locking

1шт.

Part of seal kit P/N H630186

1шт.

8

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- gland, outer

1шт.

Part of seal kit P/N H630186

1шт.

9

H636852

PISTON ROD

ROD - piston, 1" (25 mm) diameter

1шт.

10

H347757

PISTON

- cylinder

1шт.

11

B17300

O-RING

BACKUP RING - piston seal, outer

2шт.

Part of seal kit P/N H630186

1шт.

12

A30916

O-RING,1.475" ID x 1.875" OD x 0.21"

SEAL - piston, outer

1шт.

Part of seal kit P/N H630186

1шт.

13

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- piston, inner, rod

1шт.

Part of seal kit P/N H630186

1шт.

14

131-172

LOCK NUT,3/4"-16, GA

NUT - hex, self-locking, 3/4" - 16 NF, plated

1шт.

H630186

GASKET KIT

KIT - seal, Includes: Refs. 4 - 8, 11, 12 and 13

1шт.
