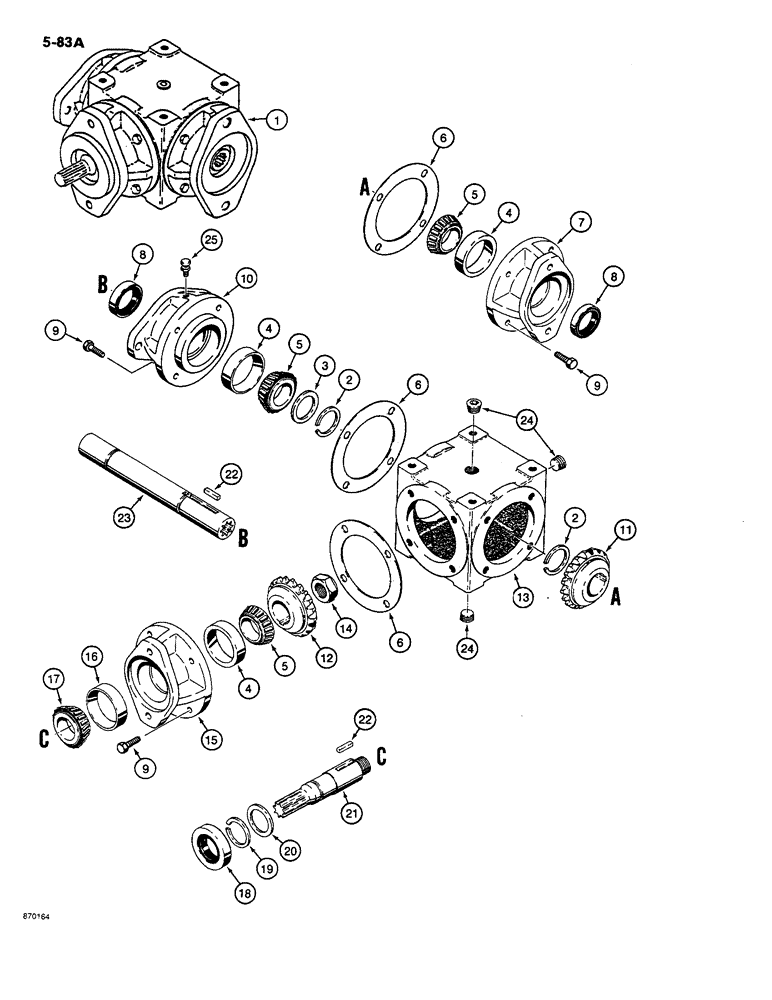

Запчасти Case CASE (5-83A) - PRIMARY DRIVE PUMP (05) - STEERING

1

H624650

PUMP

- drive, primary, Includes: Refs. 2-25

1шт.

2

R21976

RING

SNAP RING - retaining

2шт.

3

T40125

WASHER

SPACER - mounting

1шт.

4

G57451

BEARING, CUP

CUP - tapered roller bearing

3шт.

5

G57452

ROLLER BEARING

TAPERED ROLLER BEARING - mounting cover

3шт.

6

T40128

GASKET

GASKET - mounting cover

1шт.

7

H363135

FRAME

COVER - mounting

1шт.

8

T40123

SEAL

- cover

2шт.

9

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

12шт.

10

D53684

CYLINDER END CAP

COVER - output shaft

1шт.

N14109

KIT

GEAR SET - pump, Includes: Refs. 11, 12

1шт.

11

NSS

NOT SOLD SEPARAT

GEAR - output shaft

1шт.

12

NSS

NOT SOLD SEPARAT

GEAR - pinion shaft

1шт.

13

T40113

CASE

- pump

1шт.

14

131-39

NUT,1"-14

NUT - hex, self-locking, 1" - 14 NF

1шт.

15

H363150

COVER

- pinion shaft

1шт.

16

651817R1

BEARING CUP

CUP - bearing

1шт.

17

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - bearing

1шт.

18

D60701

SEAL

- pinion shaft

1шт.

19

A27012

RING

SNAP RING - pinion shaft

1шт.

20

H363168

WASHER

- pinion shaft

1шт.

21

H363176

SHAFT

- pinion

1шт.

22

F11313

KEY

- pinion shaft

2шт.

23

H363184

SHAFT

OUTPUT SHAFT - pump

1шт.

24

221-844

PLUG,Hex Soc, 1/2"-14

- hex socket head, 1/2" NPT

3шт.

25

L33264

BREATHER

- pump, pressure release

1шт.
