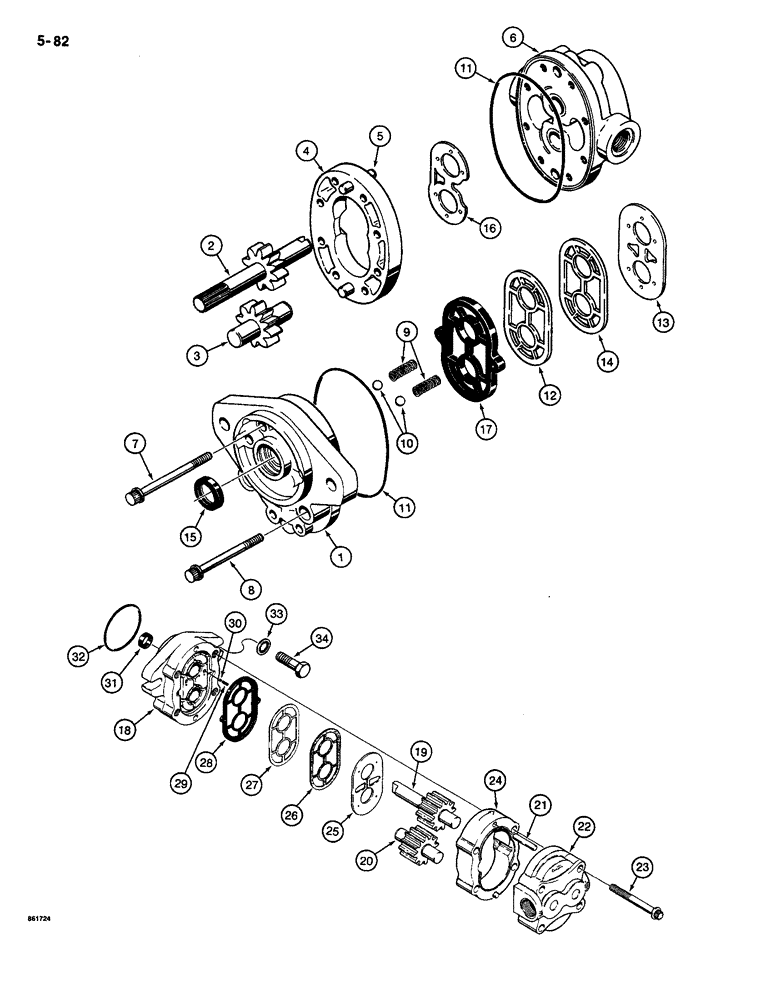

Запчасти Case CASE (5-82) - DUAL PUMP ASSEMBLY (05) - STEERING

REF

INSTRUCTION

PUMP ASSEMBLY - dual, no longer available, order components, Includes: Refs. 1-34

1шт.

H565572

PUMP

ASSEMBLY - plow, Includes: Refs. 1-17

1шт.

1

D48879

COVER

- drive shaft end

1шт.

2

H565846

SHAFT

DRIVE GEAR - pump

1шт.

3

H565853

GEAR WHEEL

DRIVEN GEAR - pump

1шт.

4

H210724

BODY

HOUSING - gear

1шт.

5

H754325

DOWEL

PIN - housing

1шт.

6

H582627

PLATE ASSY.

COVER - port end

1шт.

7

166-52

12 PT SCREW,Flg, 3/8" - 16 x 2 3/4", Gr 8

BOLT - Ferry head, 3/8" - 16 NC x 2-3/4"

4шт.

8

166-51

12 PT SCREW,Flg, 3/8" - 16 x 2 1/2", Gr 8

BOLT - Ferry head, 3/8" - 16 NC x 2-1/2"

4шт.

D59656

GASKET KIT

KIT - seal, Includes: Refs. 9-17

1шт.

9

D31403

SPRING

- ball retaining

2шт.

10

211-312

BALL,13/32" Dia

- 13/32", grade 100, carbon steel

2шт.

11

H756221

O-RING,4.987" ID x 5.193" OD

- covers

2шт.

12

H260927

GASKET

- pump

1шт.

13

H335331

DIAPHRAGM

- pump

1шт.

14

H260935

GASKET

- protector

1шт.

15

A25139

SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk

- shaft

1шт.

16

A45358

PLATE

- thrust

1шт.

17

H273912

SEAL

- diaphragm

1шт.

H582874

PUMP

ASSEMBLY - steering, Includes: Refs. 18-31

1шт.

18

H371922

PLATE ASSY.

COVER - drive shaft end

1шт.

19

H582940

GEAR

DRIVE GEAR - pump

1шт.

20

H582924

GEAR

DRIVEN GEAR ASSEMBLY - pump

1шт.

21

H755777

DOWEL

PIN - housing

2шт.

22

H658955

BACK PLATE

COVER - port end

1шт.

23

166-29

12 PT SCREW,Flg, 5/16" - 18 x 1 3/4", Gr 8

BOLT - Ferry head, 5/16" - 18 NC x 1-3/4"

4шт.

24

H246744

BODY

HOUSING - gear

1шт.

H218388

SEAL ASSY.

KIT - seal, no longer available, order refs. 25 - 31, Includes: Refs. 25-31

1шт.

25

H89524

DIAPHRAGM

- pump

1шт.

26

H218362

GASKET

- backup

1шт.

27

H218354

GASKET

- protector

1шт.

28

H218347

SEAL

- diaphragm

1шт.

29

F9883

SPRING

- ball retaining

2шт.

30

211-205

BALL

- steel, 7/32"

2шт.

31

H89540

SEAL

SEAL - shaft

1шт.

32

G32926

O-RING,0.103" Thk x 1.987" ID, -136, Cl 5, 75 Duro

- pumps

1шт.

33

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

34

26-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

- hex head, 3/8" - 16 NC x 1", grade 8

2шт.
