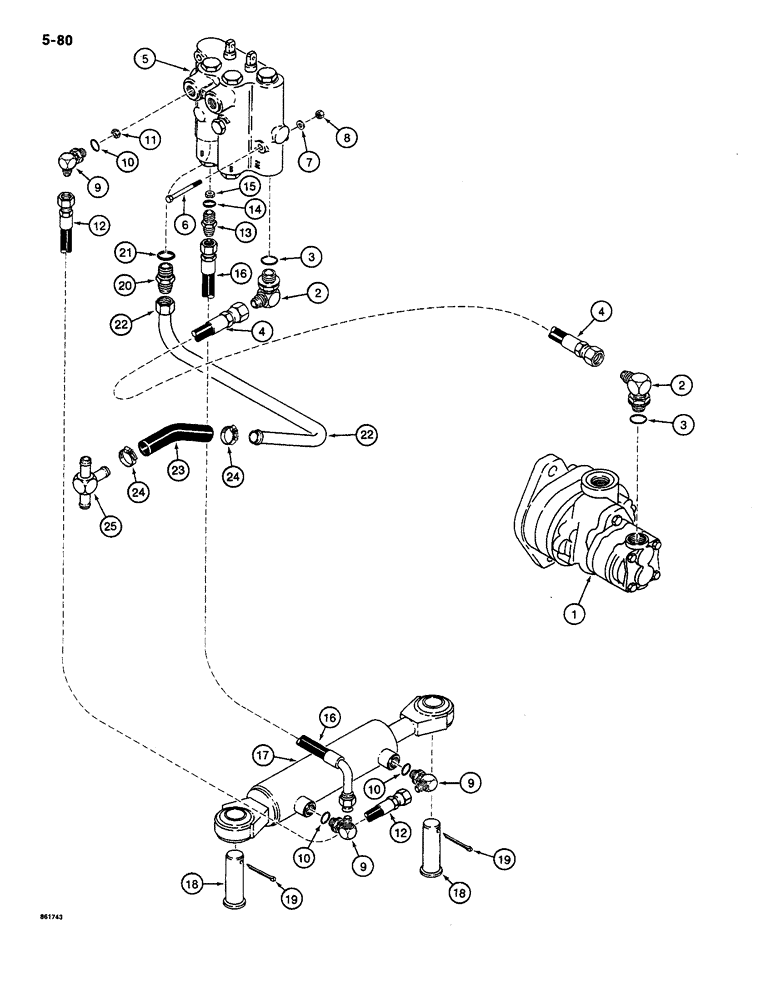

Запчасти Case CASE (5-80) - STEERING HYDRAULIC CIRCUIT (05) - STEERING

1

H626069

PUMP

ASSEMBLY - dual, parts list figure 5-82

1шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adjustable, Includes: Ref. 3

2шт.

4

H433054

HOSE ASSY.

HOSE - 19" (483 mm) long, pressure pump to valve inlet

1шт.

5

H550079

LOCK VALVE

CONTROL VALVE ASSEMBLY - steering and attachment lift, parts list figure 5-84

1шт.

6

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

2шт.

7

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

2шт.

8

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.

9

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, adjustable, Includes: Ref. 10

3шт.

10

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

11

H759084

ORIFICE

- "C" PORT

1шт.

12

H433050

HYDRAULIC HOSE,6.35 mm ID x 900.00 mm, SAE 100R2

HOSE - 33" (838 mm) long, "C" port of valve to steering cylinder, Rod end

1шт.

13

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - straight, male, Incl. Ref. 14

1шт.

14

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

15

H757815

PORT

ORIFICE - "D" port

1шт.

16

H433467

HOSE

- 27-1/2" (700 mm) long, "D" port of valve to steering cylinder, closed end

1шт.

17

H624528

STEERING CYLINDER

CYLINDER ASSEMBLY - steering, parts list figure 5-86

1шт.

18

H67272

PIN,25.3mm OD x 84.93mm L

CLEVIS PIN - 1" x 2-25/32", special

2шт.

19

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

2шт.

20

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , straight, male, Incl. Ref. 21 7/8"-14, 37º x 3/4"-16, O-Ring

1шт.

22

H627505

TUBE,0.62" OD

- return, valve to tee

1шт.

23

REF

INSTRUCTION

HOSE - 5/8" (16 mm) ID x 9" (228 mm) long, return tube to tee, cut from L106433, seee below

1шт.

24

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

2шт.

25

L53940

TEE

- special, return, Serial Range: hoses-reservoir

1шт.

L106433

HOSE

- 5/8" (16 mm) ID x 22" (559 mm) long

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.

21

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.
