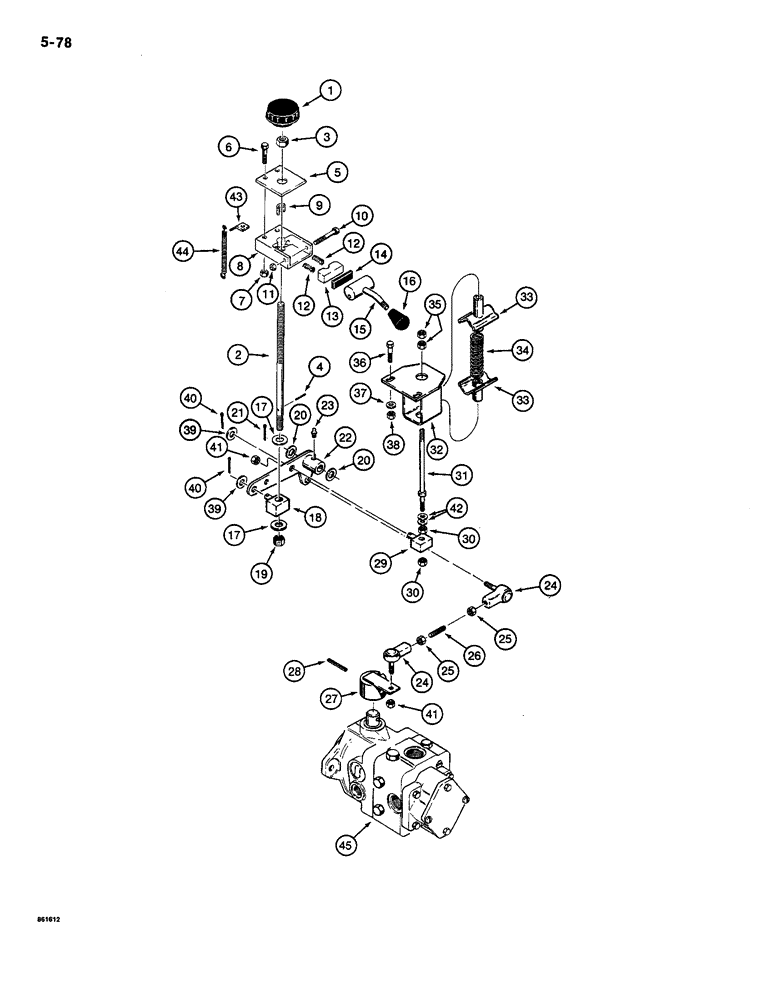

Запчасти Case CASE (5-78) - CREEP CONTROL LEVER AND STEERING CONTROL VALVE LINKAGE (05) - STEERING

1

H239004

KNOB

- creep control

1шт.

2

H255158

CONTROL BLOCK

ROD - creep control

1шт.

3

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

4

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

5

H233767

COVER ASSY

PLATE - control base

1шт.

6

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

7

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.

8

H608885

CONTROL BLOCK

BASE ASSEMBLY - control, Includes: Ref. 9

1шт.

9

H299164

BUSHING

- friction

1шт.

10

113-46

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

- hex head, 1/4" - 20 NC x 2-3/4", plated

1шт.

11

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

12

H253864

VALVE SPRING

SPRING - creep lock

2шт.

H608877

BLOCK

ASSEMBLY - creep lock, Includes: Refs. 13, 14

1шт.

13

H299131

BLOCK

- half nut, locking

1шт.

14

H299149

BLOCK

CUSHION - friction

1шт.

15

H618504

CAM

LEVER - cam locking, with bent handle

1шт.

16

A14051

GRIP

KNOB - creep control lock

1шт.

17

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

2шт.

18

H237701

BLOCK

- creep control

1шт.

19

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC, plated

1шт.

20

195-541

WASHER,5/8", SAE

- flat, 5/8", plated

2шт.

21

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4"

1шт.

22

H625699

ARM ASSY.

BELLCRANK - creep control

1шт.

23

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

24

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

JOINT - 5/16" - 24 NF, plated

2шт.

25

86637933

JAM NUT,5/16" - 24, Gr 5

Jam, 5/16"- 24, G5

2шт.

26

H107623

STUD

ROD - bellcrank to pump arm

1шт.

27

H625707

ARM ASSY.

ARM - pump control

1шт.

28

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

1шт.

29

H359307

PIVOT

- neutral centering

1шт.

30

131-1133

NUT,3/8"-24, GC

NUT - hex, self-locking, 3/8" - 24 NF, plated

2шт.

31

D70310

ROD

- return, right-hand

1шт.

32

H635060

HOUSING

BRACKET - neutral centering

1шт.

33

D72749

VALVE SPRING

RETAINER - spring

2шт.

34

D70304

COMPRESSION SPRING,0.955" OD x 4.00" L

- centering

1шт.

35

129-123

NUT,3/8"-24, G5

2шт.

36

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

37

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

38

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.

39

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

40

132-334

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

41

131-1169

LOCK NUT,5/16"-24, GA

NUT, LOCK, 5/16"-24, GA

2шт.

42

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

43

H52555

HOOK

BRACKET - spring, if used

1шт.

44

H28662

VALVE SPRING

SPRING - control base to bellcrank, if used

1шт.

45

H628040

PUMP, HYDRAULIC

PUMP ASSEMBLY - ground drive, parts list figure 6-92

1шт.
