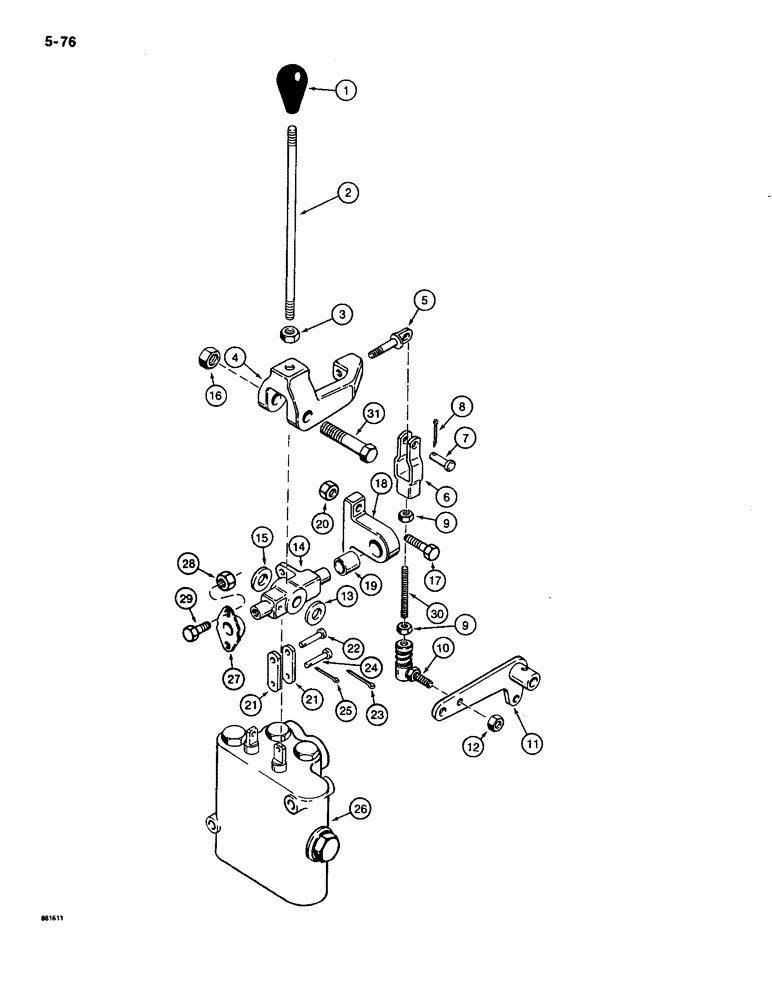

Запчасти Case CASE (5-76) - DIRECTIONAL CONTROLS AND NEUTRAL CONTROL (05) - STEERING

1

H182113

KNOB

- steering

1шт.

2

H242693

HANDLE

ROD - steering

1шт.

3

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

4

H181982

CASTING

LEVER BASE - directional control

1шт.

5

H217109

BOLT

EYE BOLT - directional control lever

1шт.

6

H165688

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS - special, 1/4"

1шт.

7

H169318

CLEVIS COUPLING,6.35mm OD x 22.62mm L

CLEVIS PIN - special, 1/4" x 51/64" long

1шт.

8

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

9

425-154

JAM NUT,Jam, 1/4"-28, G5

2шт.

10

H169920

BALL JOINT

- 1/4" - 28 NF

1шт.

11

H625699

ARM ASSY.

BELLCRANK - creep and directional control

1шт.

12

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

13

H256305

WASHER

- special, friction, .062" (1.57 mm) thick, if used

1шт.

14

H181974

SHAFT

- directional control

1шт.

15

H182097

WASHER

- special, friction, .125" (3.04 mm) thick

1шт.

16

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC, plated

1шт.

17

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

18

H558411

BEARING

ASSEMBLY - directional control, Includes: Ref. 19

1шт.

19

H151894

BUSHING

- bearing

1шт.

20

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.

21

H196857

LINK

- directional control

2шт.

22

D23693

AXLE PIN

CLEVIS PIN - special, 1/4" x 1" long

1шт.

23

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

24

H35279

AXLE PIN,4.72mm OD x 23.76mm L

CLEVIS PIN - special, 3/16" x 57/64" long

1шт.

25

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

26

H550079

LOCK VALVE

CONTROL VALVE ASSEMBLY - directional and attachment lift, parts list figure 5-84

1шт.

27

H755785

FLANGED BEARING,15.88mm ID

BEARING - directional control shaft

1шт.

28

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

29

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

30

H195503

ROD

- adjusting, 2-1/2" long, if used

1шт.

30

H246678

LINK

ROD - adjusting, 1-1/4" long, if used

1шт.

31

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex head, 1/2" - 13 NC x 2-1/2", plated

1шт.
