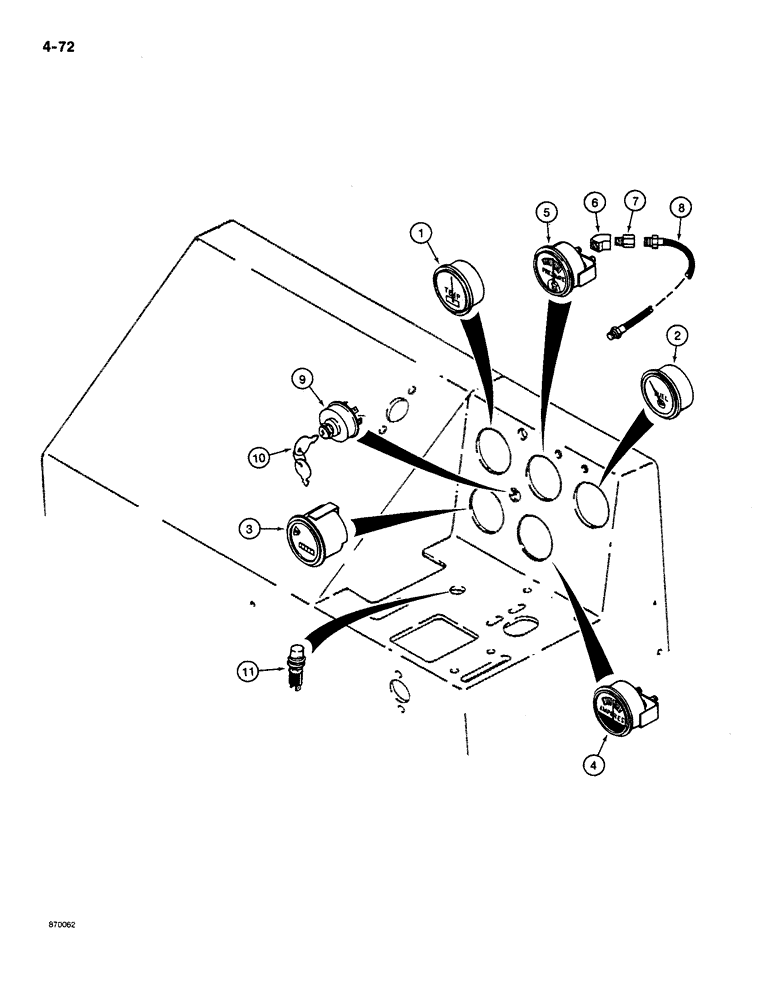

Запчасти Case CASE (4-72) - INSTRUMENTS AND MOUNTING (04) - ELECTRICAL SYSTEMS

1

H347872

GAUGE ASSY.

GAUGE - water temperature

1шт.

2

H142794

ELECTRICAL GAUGE

GAUGE - fuel

1шт.

3

H347898

HOURMETER

- engine, if used

1шт.

4

R18748

AMMETER

GAUGE - ammeter

1шт.

5

H331850

GAUGE ASSY.

GAUGE - oil pressure

1шт.

6

221-1365

ELBOW,45 Degree, 1/8" NPT

- 45 degree, 1/8" NPT

1шт.

7

218-909

HYD CONNECTOR,1/8" NPT x 1/4" NPSM Fem

UNION - swivel, 1/8" NPT

1шт.

8

H103606

HOSE,0.25" ID x 17.00", SAE 100R3

to Oil Pressure Gauge 0.25" ID x 17.00", SAE 100R3

1шт.

9

H71498

SWITCH

- ignition and keys, Includes: Ref. 10

1шт.

10

A24509

KEY

- ignition start, Set of 2

1шт.

11

H603852

LIGHT

LAMP - oil temperature

1шт.

H35048 = switch for glow plugs

1шт.
