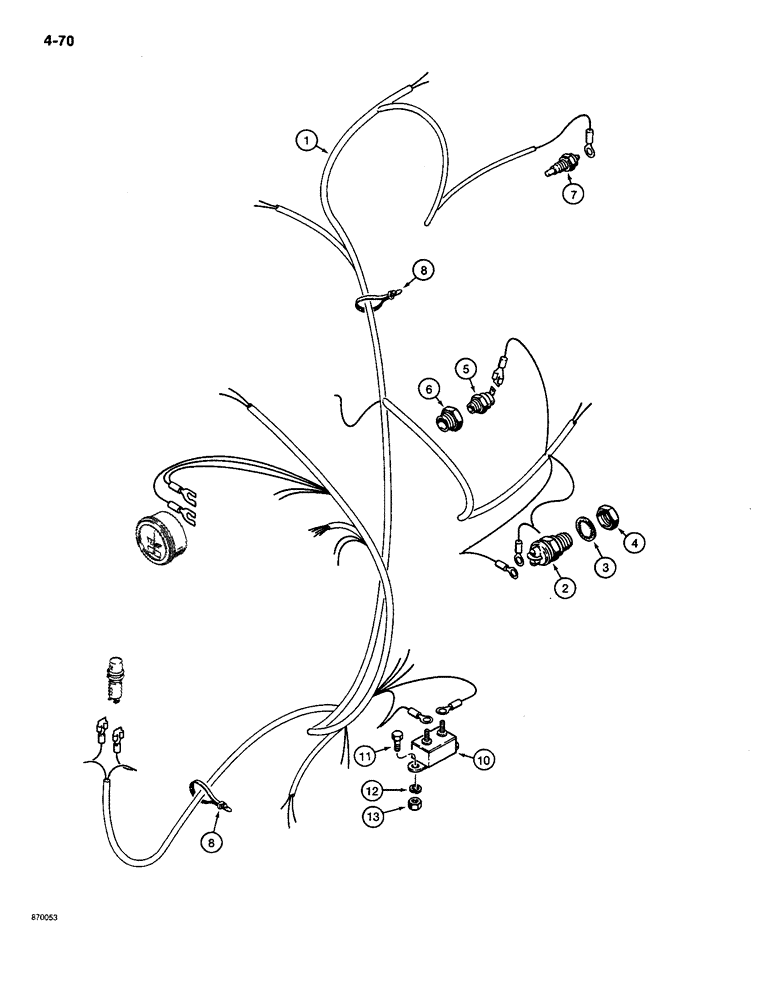

Запчасти Case CASE (4-70) - MAIN WIRING HARNESS AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

H428474

HARNESS

- main wiring

1шт.

2

S114679

SWITCH

- neutral start

1шт.

3

193-61

LOCK WASHER,Int Tooth, 3/4"

WASHER, LOCK, Int Tooth, 3/4"

1шт.

4

131-404

LOCK NUT,PAL, 3/4"-16

NUT - hex, special locking, 3/4" - 16 NF

1шт.

5

H81935

SENDER UNIT

SENDER - oil temperature

1шт.

6

221-612

REDUCER - 1-1/2" x 1/2" NPT, bottom of reservoir

1шт.

7

H344580

SENDER UNIT

SWITCH - water temperature

1шт.

8

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

9

E36495

GLOW PLUG

PLUG - glow, used on models before engine SN 18V/738B/D4608, no longer used, order E44243 glow plug and Refs. 10 - 14 for service

1шт.

9

E44243

GLOW PLUG

PLUG - glow, used on models with engine SN 18V/738B/D4608 and after

1шт.

10

A22877

BREAKER,40A

CIRCUIT BREAKER - 40 amperes

1шт.

11

223-51

TERMINAL CONNECTOR,12 - 19

TERMINAL - wire

2шт.

12

163-32

SCREW,Hex, #10 - 24 x 1/2"

MACHINE SCREW - hex head, No. 10 - 24 NC x 1/2"

2шт.

13

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

14

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

NUT, LOCK, #10-24, GA

2шт.

H35048 =is preheater switch for glow plugs

1шт.
