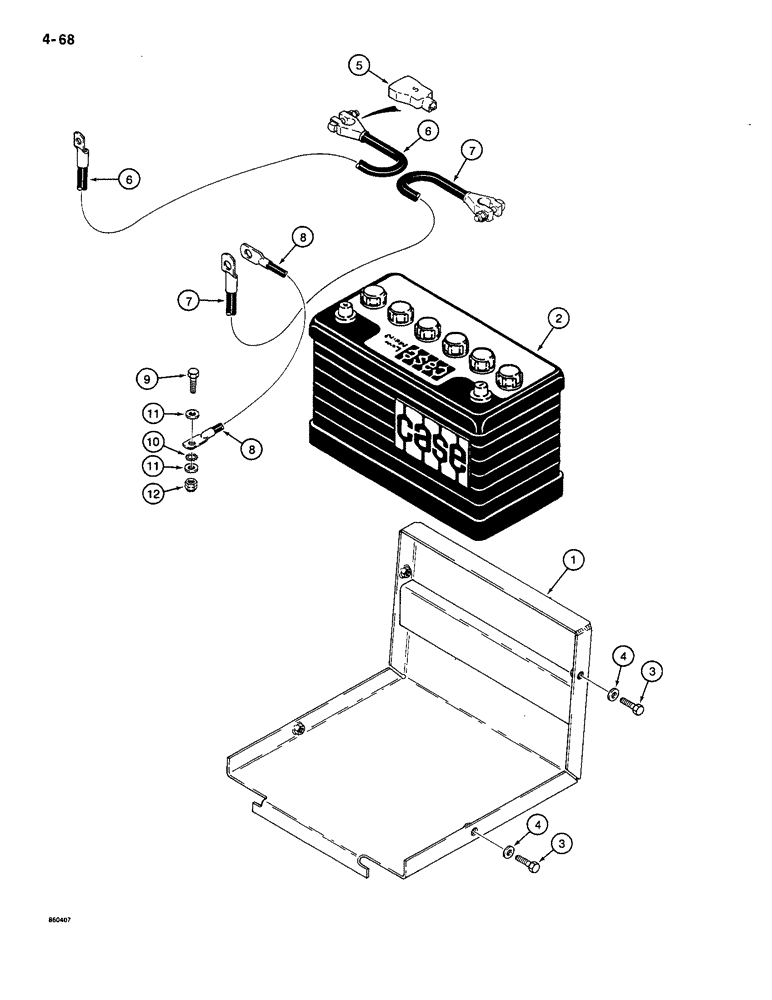

Запчасти Case CASE (4-68) - BATTERY, MOUNTING, AND CABLES (04) - ELECTRICAL SYSTEMS

1

H625673

RACK

BRACKET - battery retaining

1шт.

2

BHC30

BATTERY, DRY

BATTERY - 12 volt, with caps, dry type

1шт.

3

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

SCREW - hex head, self-tapping, 5/16" - 18 NC x 1", plated

4шт.

4

H426775

WASHER

- flat, hardened, plated

4шт.

5

H102681

COVER ASSY

COVER - battery terminal

1шт.

6

H84707

NEG BATTERY CABLE

CABLE - battery, positive

1шт.

7

H106096

CABLE PULLING GRIP

CABLE - battery, negative

1шт.

8

H256990

CABLE PULLING GRIP

CABLE - ground, Serial Range: engine-frame

1шт.

9

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - external tooth lock, No. 3

1шт.

11

H426775

WASHER

- flat, hardened, plated

2шт.

12

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

1шт.
