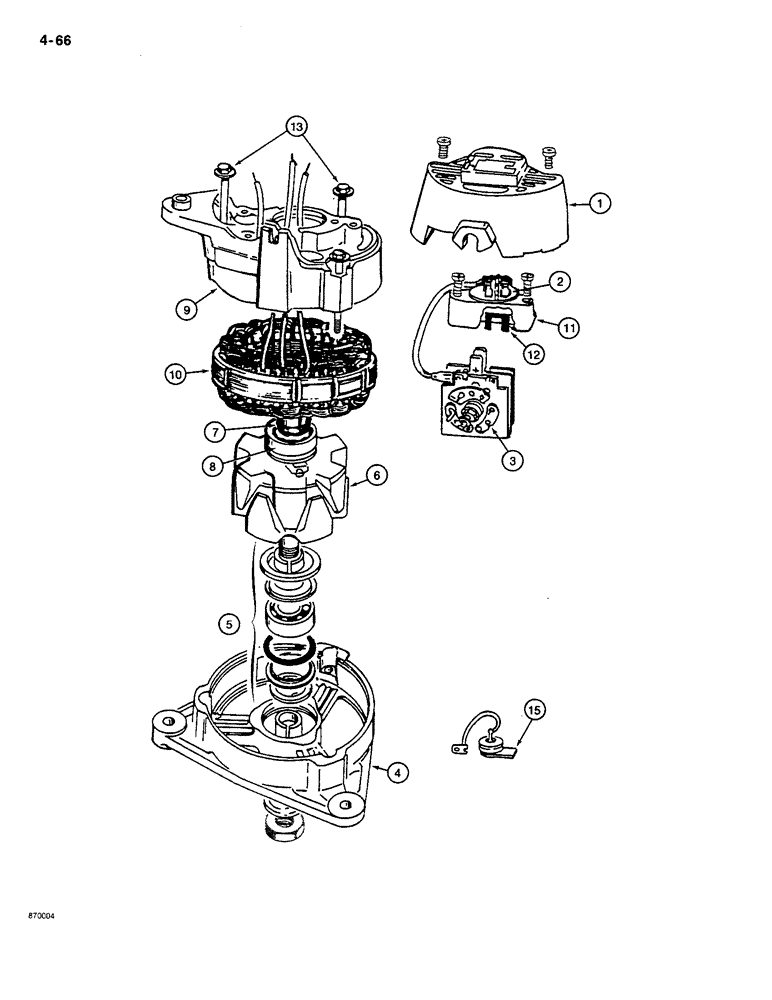

Запчасти Case CASE (4-66) - ALTERNATOR ASSEMBLY (04) - ELECTRICAL SYSTEMS

E36638

ALTERNATOR

ASSEMBLY - engine, Includes: Refs. 1-15

1шт.

1

H402537

COVER

- alternator

1шт.

2

K962774

REGULATOR

VOLTAGE REGULATOR - alternator

1шт.

3

K962783

RECTIFIER

- alternator

1шт.

4

K963919

BRACKET

HOUSING - drive end, Includes: Ref. 5

1шт.

5

K963778

BEARING ASSY

KIT - drive end bearing

1шт.

6

NSS

NOT SOLD SEPARAT

ROTOR ASSEMBLY - alternator, Includes: Refs. 7, 8

1шт.

7

K964178

SLIP RING

RING - slip

1шт.

8

K963779

KIT

BEARING - slip ring end

1шт.

9

K964180

BRACKET

HOUSING - slip ring end

1шт.

10

NSS

NOT SOLD SEPARAT

STATOR ASSEMBLY - alternator

1шт.

11

K963772

BOX

BRUSH ASSEMBLY - alternator, Includes: Ref. 12

1шт.

12

K964151

BRUSH, COMMUTATOR

BRUSH - alternator

1шт.

13

K964181

BOLT (MACHINE)

BOLT - special

3шт.

14

K963927

KIT

- hardware, not shown

1шт.

15

K964182

PROTECTOR

CAPACITOR - alternator

1шт.
