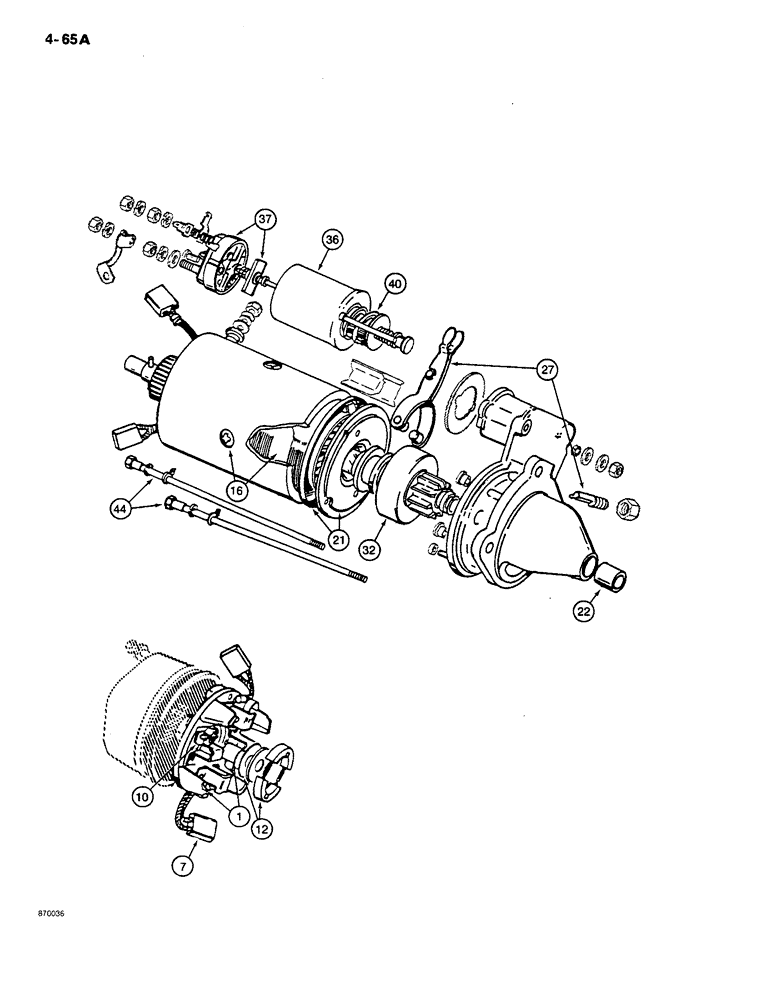

Запчасти Case CASE (4-65A) - STARTER ASSEMBLY (04) - ELECTRICAL SYSTEMS

E43498

STARTING MOTOR

STARTER ASSEMBLY - engine, continued from figure 4-64, Includes: Refs. 44-56

1шт.

44

H658385

KIT - through bolt, Includes: Refs. 45-48

1шт.

45

NSS

NOT SOLD SEPARAT

BOLT - through, not shown

2шт.

46

NSS

NOT SOLD SEPARAT

WASHER - spring, not shown

2шт.

47

NSS

NOT SOLD SEPARAT

WASHER - lock, not shown

2шт.

48

NSS

NOT SOLD SEPARAT

RING - sealing, not shown

2шт.

49

K964185

ARMATURE

KIT - armature, not shown, Includes: Refs. 50, 51

1шт.

50

NSS

NOT SOLD SEPARAT

ARMATURE - starter, not shown

1шт.

51

NSS

NOT SOLD SEPARAT

PIN - shaft, not shown

1шт.

52

H658443

BRACKET

KIT - bracket, drive end, not shown, Includes: Refs. 53-56

1шт.

53

NSS

NOT SOLD SEPARAT

BRACKET - drive end, not shown

1шт.

54

NSS

NOT SOLD SEPARAT

DOWEL - drive end, not shown

1шт.

55

NSS

NOT SOLD SEPARAT

BUSHING - drive end, not shown

1шт.

56

NSS

NOT SOLD SEPARAT

BUSHING - sealing, not shown

1шт.
