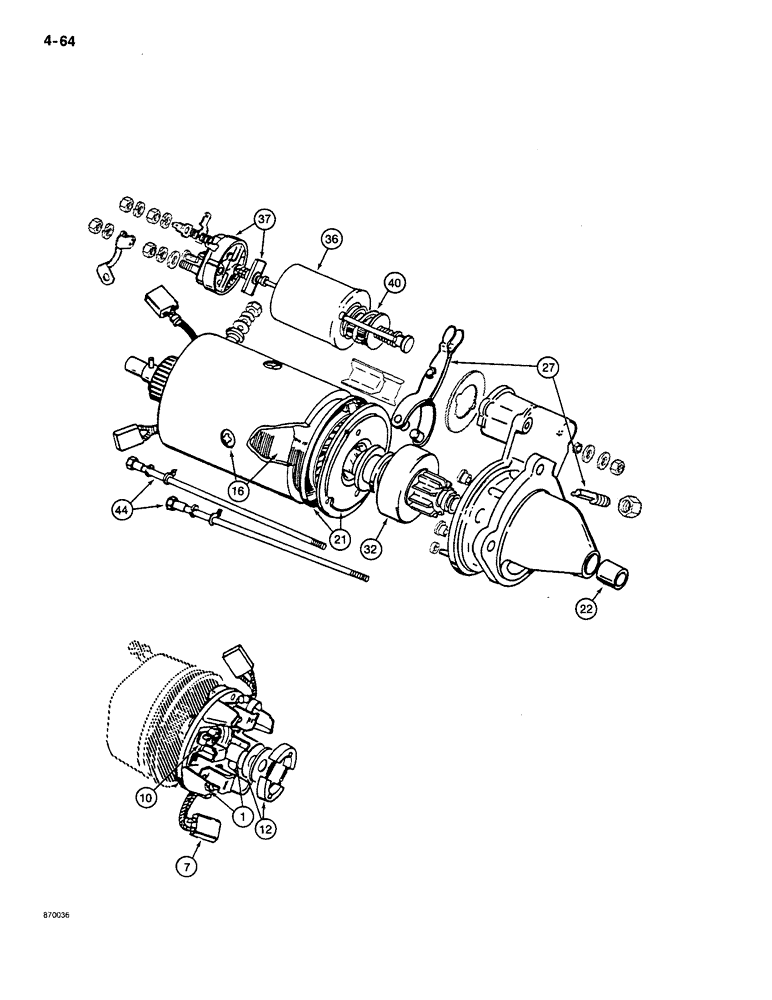

Запчасти Case CASE (4-64) - STARTER ASSEMBLY (04) - ELECTRICAL SYSTEMS

E43498

STARTING MOTOR

STARTER ASSEMBLY - engine, Includes: Refs. 1-43

1шт.

1

H658203

BRACKET

KIT - bracket, commutator end, Includes: Refs. 2-6

1шт.

2

NSS

NOT SOLD SEPARAT

BRACKET - commutator end, not shown

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - commutator end, not shown

1шт.

4

NSS

NOT SOLD SEPARAT

DOWEL PIN - commutator end, not shown

1шт.

5

NSS

NOT SOLD SEPARAT

BRUSHES - grounded, not shown

2шт.

6

NSS

NOT SOLD SEPARAT

SCREW - terminal, not shown

1шт.

7

H658393

BRUSH ASSY.

KIT - brushes, Includes: Refs. 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

BRUSH - grounded, not shown

2шт.

9

NSS

NOT SOLD SEPARAT

BRUSH - insulating, not shown

2шт.

10

K963798

SPRING

KIT - brush spring, Includes: Ref. 11

1шт.

11

NSS

NOT SOLD SEPARAT

SPRING - brush, not shown

4шт.

12

K963857

BRAKE

KIT - brake, Includes: Refs. 13-15

1шт.

13

NSS

NOT SOLD SEPARAT

SHOE - brake, not shown

2шт.

14

NSS

NOT SOLD SEPARAT

SPRING - brake, not shown

2шт.

15

NSS

NOT SOLD SEPARAT

WASHER - thrust, not shown

2шт.

16

H658401

KIT

- field coil, Includes: Refs. 17-20

1шт.

17

NSS

NOT SOLD SEPARAT

COIL - field, not shown

1шт.

18

NSS

NOT SOLD SEPARAT

TERMINAL - field coil, not shown

1шт.

19

NSS

NOT SOLD SEPARAT

SCREW - pole, not shown

4шт.

20

NSS

NOT SOLD SEPARAT

INSULATOR - yoke, not shown

1шт.

21

NSS

NOT SOLD SEPARAT

BRACKET - intermediate

1шт.

22

K963931

KIT

- bushing, Includes: Refs. 23-25

1шт.

23

NSS

NOT SOLD SEPARAT

BUSHING - commutator end, not shown

1шт.

24

NSS

NOT SOLD SEPARAT

BUSHING - drive end, not shown

1шт.

25

NSS

NOT SOLD SEPARAT

BUSHING - intermediate, not shown

1шт.

26

H658336

KIT

- seal, not shown

1шт.

27

H662718

KIT

- solenoid, Includes: Refs. 28-31

1шт.

28

NSS

NOT SOLD SEPARAT

PINION - solenoid, not shown

1шт.

29

NSS

NOT SOLD SEPARAT

LEVER - engaging, not shown

1шт.

30

NSS

NOT SOLD SEPARAT

PIVOT - eccentric, not shown

1шт.

31

NSS

NOT SOLD SEPARAT

NUT - lock, not shown

1шт.

32

H658351

DRIVE

ASSEMBLY - starter, Includes: Refs. 33-35

1шт.

33

NSS

NOT SOLD SEPARAT

DRIVE - starter, not shown

1шт.

34

NSS

NOT SOLD SEPARAT

COLLAR - thrust, not shown

1шт.

35

NSS

NOT SOLD SEPARAT

RING - retaining, not shown

1шт.

36

H658435

SOLENOID

- starter, Includes: Refs. 37-39

1шт.

37

NSS

NOT SOLD SEPARAT

CAP - end

1шт.

38

NSS

NOT SOLD SEPARAT

CONTACTS - solenoid, not shown

2шт.

39

NSS

NOT SOLD SEPARAT

SPINDLE - solenoid, not shown

1шт.

40

NSS

NOT SOLD SEPARAT

SPRING - plunger return

1шт.

41

NSS

NOT SOLD SEPARAT

BOOT ASSEMBLY - solenoid, not shown, Includes: Refs. 42, 43

1шт.

42

NSS

NOT SOLD SEPARAT

BOOT - solenoid, not shown

1шт.

43

NSS

NOT SOLD SEPARAT

PLATE - support, not shown

1шт.
