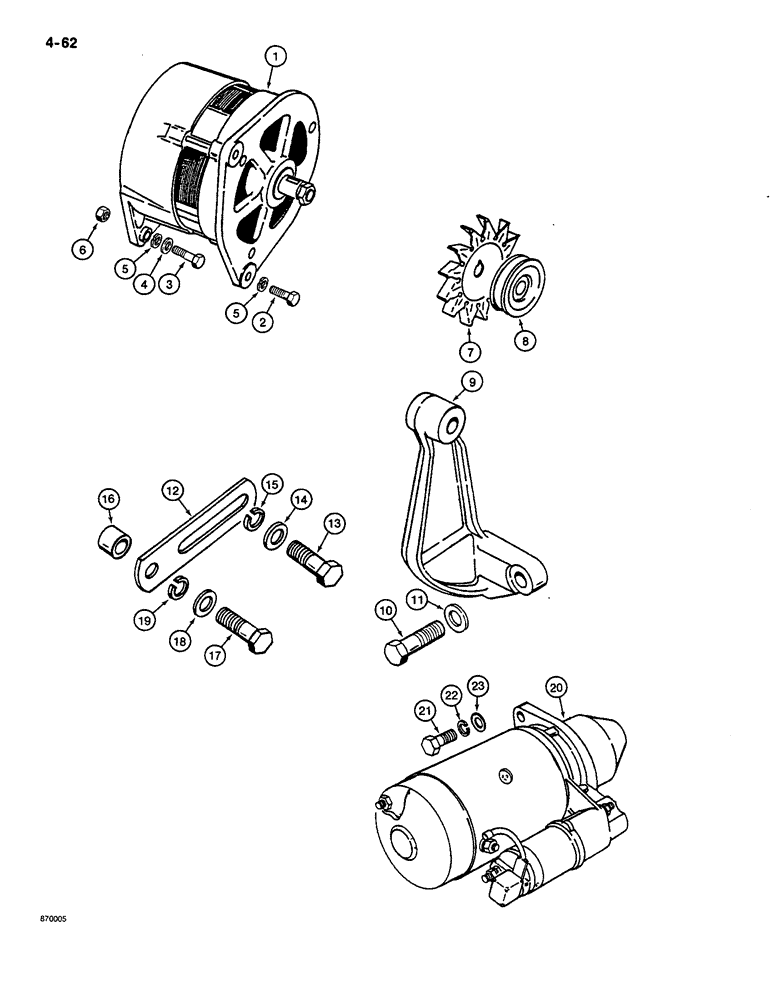

Запчасти Case CASE (4-62) - STARTER AND ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

E36638

ALTERNATOR

ASSEMBLY - engine, part list figure 4-66

1шт.

2

E36659

BOLT

- 5/16" - 24 NF x 1-3/4", alternator

1шт.

3

E36660

BOLT

- 5/16" - 24 NF x 2", Serial Range: alternator-bracket

1шт.

4

195-52

WASHER

- flat, 11/32"

1шт.

5

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

6

129-122

NUT,5/16"-24, G5

1шт.

7

E36639

FAN

- alternator

1шт.

8

E36640

PULLEY

- alternator, hub protudes 1-1/2", if used

1шт.

8

E36641

PULLEY

- alternator, hub protrudes, 1-1/4", if used

1шт.

9

E36642

BRACKET

- alternator, rear

1шт.

10

E36671

SCREW

BOLT - 5/16" - 24 NF x 7/8", mounting, Serial Range: plate-block

2шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

12

NLS

NO LONGER SERVICED

- adjusting

1шт.

13

E36659

BOLT

- 5/16" - 24 NF x 1-3/4", alternator

1шт.

14

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

1шт.

15

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

16

E41364

SPACER

- alternator to mounting plate

1шт.

17

114-107

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

- hex head, 5/16" - 24 NF x 1-1/2", plated

1шт.

18

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

1шт.

19

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

20

E43498

STARTING MOTOR

STARTER ASSEMBLY - engine, parts list figure 4-64

1шт.

21

E36675

BOLT,M4 x 12mm

- 3/8" - 24 NF x 1-1/8", if used

1шт.

21

E36676

BOLT - 3/8" - 16 NC x 1-5/8", if used

1шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

23

196-525

WASHER - flat, 3/8", plated

2шт.
