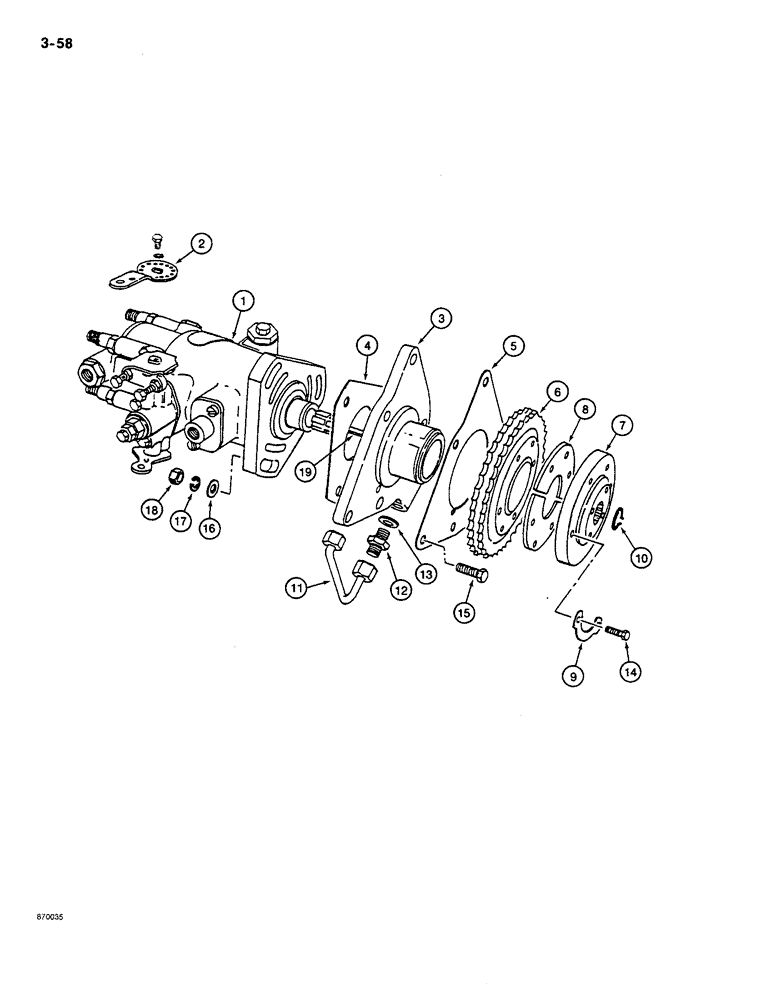

Запчасти Case CASE (3-58) - FUEL INJECTION PUMP (03) - FUEL SYSTEM

1

E36612

PUMP

ASSEMBLY - fuel injection, Includes: Ref. 2

1шт.

2

E36644

LEVER

- throttle

1шт.

3

E36645

HUB

- injection pump

1шт.

4

E36673

GASKET

-, Serial Range: pump-hub

1шт.

5

E36674

GASKET

- hub to front plate

1шт.

6

E36677

GEAR

- driving

1шт.

7

E36678

FLANGE

- driving

1шт.

8

E36679

PLATE

- locating, flange

1шт.

9

E36680

PLATE

- locking

2шт.

10

E36681

RING, SNAP

RETAINING RING - flange

1шт.

11

E36682

PIPE

- oil

1шт.

12

E36683

UNION

- oil pipe

2шт.

13

E36684

WASHER

- seal

2шт.

14

E36669

SCREW

- locking plate

4шт.

15

E36669

SCREW

- hub

3шт.

16

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

3шт.

17

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

18

129-122

NUT,5/16"-24, G5

3шт.

19

N8551

BAR

- torsion

1шт.
