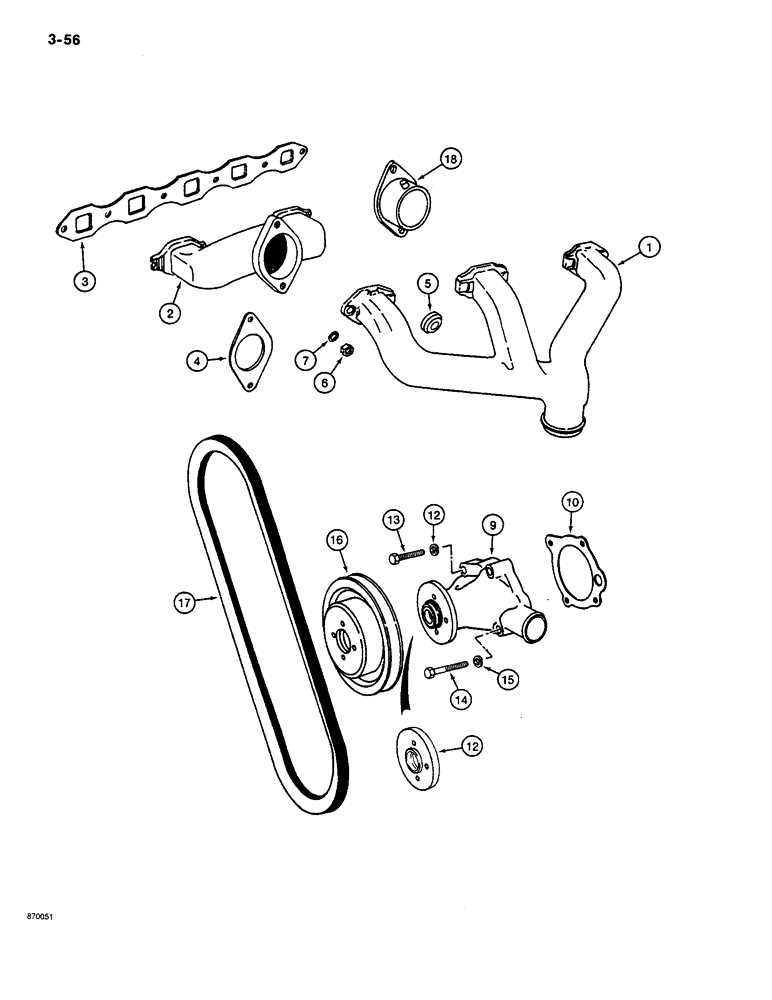

Запчасти Case CASE (3-56) - INTAKE AND EXHAUST MANIFOLD, WATER PUMP, AND FAN BELT (03) - FUEL SYSTEM

1

H362277

MANIFOLD

- exhaust

1шт.

2

E36596

MANIFOLD

- intake

1шт.

3

E36597

GASKET

- manifolds to cylinder head

1шт.

4

E35635

GASKET

- intake tube

1шт.

5

E36598

YOKE

- manifold

4шт.

6

E36668

NUT

- special, manifold to cylinder head

6шт.

7

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

2шт.

8

E36314

CLAMP

- pipe to manifold, not shown

2шт.

9

H662726

PUMP

ASSEMBLY - water, Includes: Refs. 10-12

1шт.

10

E42038

GASKET

- water pump

1шт.

11

H418574

HUB - water pump

1шт.

12

H421156

SPACER

- water pump

1шт.

13

E36659

BOLT

- 5/16" - 24 NF x 1-3/4"

2шт.

14

E36666

BOLT

-, Serial Range: pump-crankcase

2шт.

15

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

16

E41075

PULLEY

- fan and water pump

1шт.

17

H429357

V-BELT,9.70 mm W

Fan 9.70 mm W

1шт.

18

H628081

AIR INTAKE TUBE,1.68" L

TUBE - intake

1шт.

19

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

Not shown Hex, 5/16"-18 x 1 1/4", G5

2шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Not shown 5/16"

2шт.

21

NSS

NOT SOLD SEPARAT

STUD - exhaust manifold, not shown

2шт.

22

E36481

STUD

- exhaust manifold, not shown

4шт.
