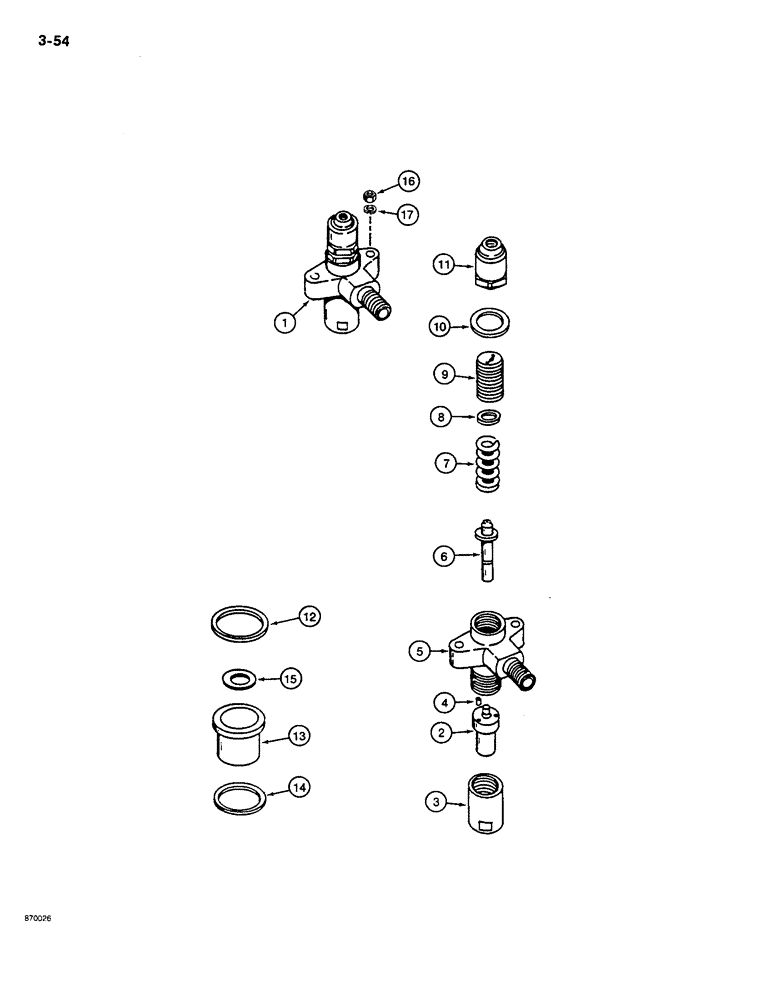

Запчасти Case CASE (3-54) - INJECTOR NOZZLE AND HOLDER (03) - FUEL SYSTEM

1

E36549

NOZZLE CAP

NOZZLE AND HOLDER ASSEMBLY - fuel injector, Includes: Refs. 2-11

4шт.

2

E36550

NOZZLE CAP

NOZZLE - fuel injector

1шт.

3

E36551

NUT

- nozzle cap

1шт.

4

E36552

DOWEL

PIN - 2.93 mm oversize

2шт.

4

E36553

DOWEL

PIN - 2.94 mm oversize

2шт.

5

E36554

BODY

- fuel injection nozzle

1шт.

6

E36555

SPINDLE

- nozzle

1шт.

7

E36556

SPRING

- nozzle pressure

1шт.

8

E36557

WASHER

- shim

1шт.

9

E36558

NUT

- spring cap

1шт.

10

E36559

WASHER

- nozzle

1шт.

11

NSS

NOT SOLD SEPARAT

NUT - nozzle holder cup

1шт.

12

E36561

WASHER

GASKET - nozzle holder

4шт.

13

E36563

CAP

SHIELD - heat, nozzle

4шт.

14

E36564

WASHER

- special, shield

4шт.

15

E36565

WASHER

- corrugated, atomizer seal

4шт.

16

E37965

NUT

- nozzle holder stud

8шт.

17

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.
