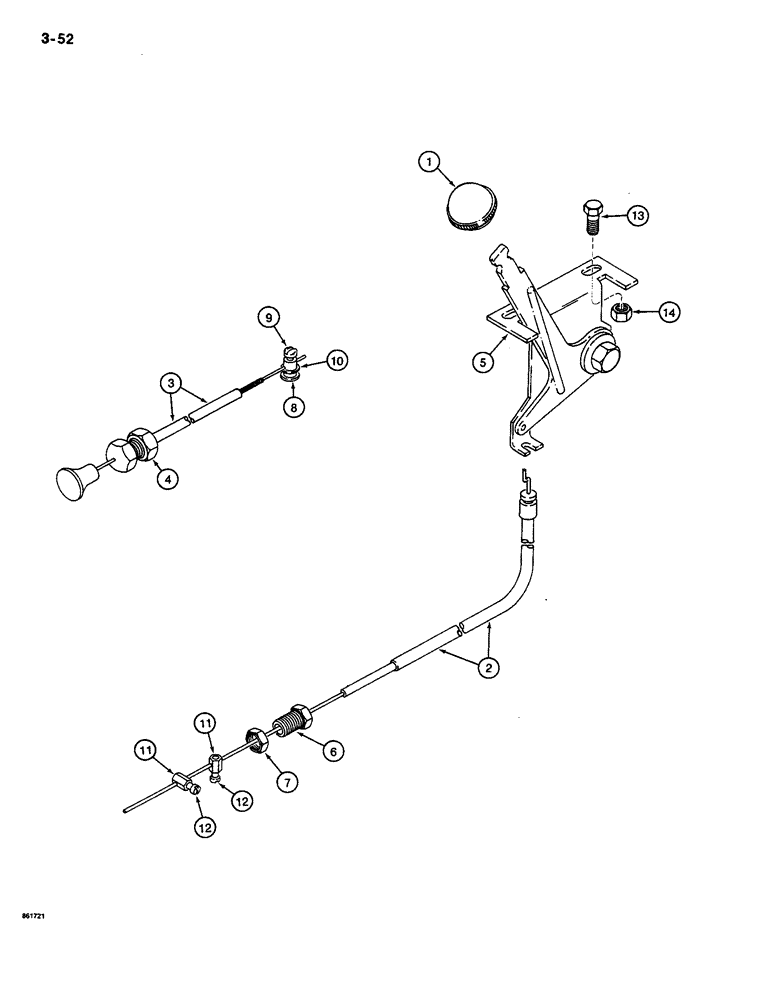

Запчасти Case CASE (3-52) - THROTTLE AND ENGINE CONTROLS (03) - FUEL SYSTEM

1

H244434

KNOB

- throttle

1шт.

2

H433045

CABLE PULLING GRIP

CABLE - throttle control

1шт.

3

H429134

CABLE

- fuel shut off, Includes: Ref. 4

1шт.

4

86585245

SPECIAL NUT,JAM, 5/8" - 18

- hex, jam, 3/8" - 24 NF, plated

1шт.

5

H657346

CONTROL

BRACKET - cable

1шт.

6

H99457

PIPE CLAMP

NUT - special

1шт.

7

129-123

NUT,3/8"-24, G5

1шт.

8

H43034

JOINT TURNING

SWIVEL - wire, fuel shut off, Includes: Refs. 9, 10

1шт.

9

182-82

SCREW,Slotted Pan Hd, #8-32 x 1/4"

MACHINE SCREW - pan head slotted, No. 8 - 32 NC x 1/4"

1шт.

10

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

1шт.

11

H42796

STOP

- wire, throttle control cable, Includes: Ref. 12

2шт.

12

169-133

SCREW,Sl Fil Hd, #8 - 32 x 3/8"

MACHINE SCREW - Fillister head, #8 - 32 NC x 3/8", plated

1шт.

13

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

14

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.
