(3-50) - FUEL TANK AND LINES

Запчасти Case CASE (3-50) - FUEL TANK AND LINES (03) - FUEL SYSTEM

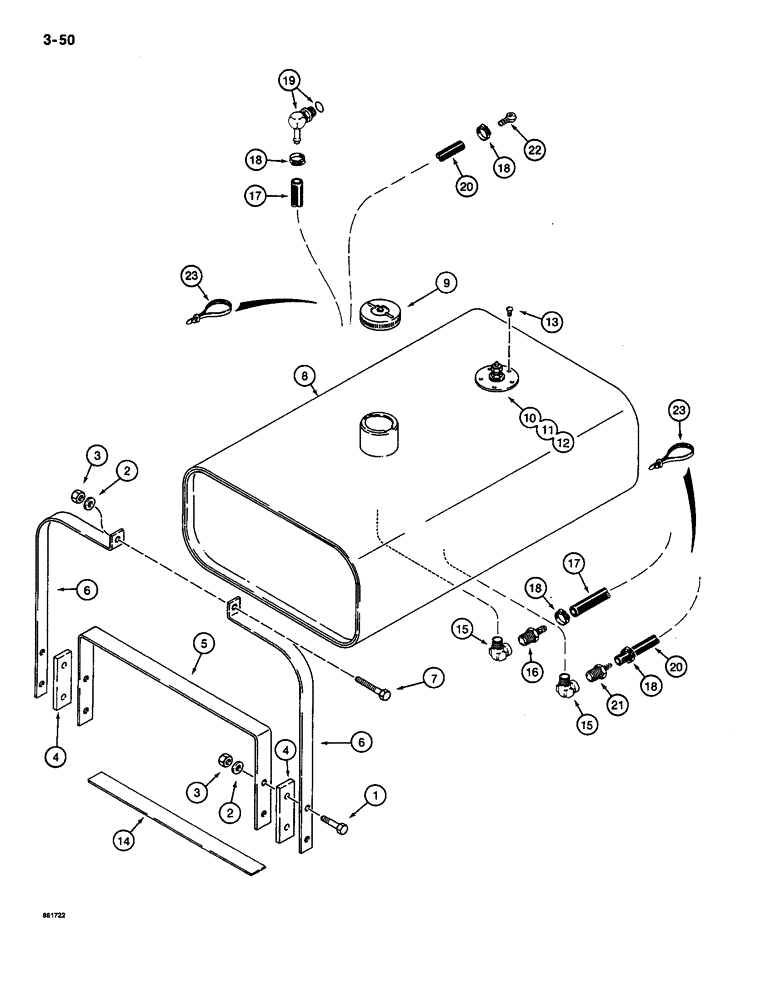

Схема запчастей Case CASE - (3-50) - FUEL TANK AND LINES (03) - FUEL SYSTEM
23
2
18
21
15
23
15
4
11
22
6
4
8
5
16
6
12
13
3
18
1
18
10
18
20
7
14
3
17
9
19
20
2
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

8шт.

2

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

10шт.

3

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

10шт.

4

H343830

SPACER

- fuel tank mounting

4шт.

5

H343855

SUPPORT

- fuel tank

2шт.

6

H343848

STRAP

- fuel tank

4шт.

7

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

H669531

FUEL TANK

TANK ASSEMBLY - fuel, Includes: Refs. 8-13

1шт.

8

NSS

NOT SOLD SEPARAT

TANK - fuel

1шт.

9

H151274

CYLINDER END CAP

CAP - fuel tank

1шт.

N13697

SENDER UNIT

SENDER ASSEMBLY - fuel tank, Includes: Refs. 10-13

1шт.

10

NSS

NOT SOLD SEPARAT

SENDER - fuel tank

1шт.

11

NSS

NOT SOLD SEPARAT

FLOAT - sender

1шт.

12

NSS

NOT SOLD SEPARAT

GASKET - sender

1шт.

13

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

MACHINE SCREW - pan head slotted, No. 10 - 24 NC x 1/2", plated

5шт.

14

H10363

STRIP

PAD - fuel tank

2шт.

15

217-1015

ELBOW,1/4" - 18 Female x 1/4" - 18 Male

90°, 1/4"-18 Female x 1/4"-18 Male

2шт.

16

217-119

FITTING,1/4" Hose x 1/4" NPTF, Barbed

BARB FITTING - straight

1шт.

17

H433367

FUEL HOSE,6.80 mm ID x 1375.00 mm, SAE 30R2

HOSE - 1/4" (6 mm) ID x 60" (1524 mm) long, Cut from H400184 bulk hose, See below

1шт.

18

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

s #4, 0.25/0.62 Type F Worm

1шт.

19

217-369

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/2" - 20 Male ORB

STEM FITTING - 90 degree, adjustable

1шт.

20

H341370

HOSE ASSY.

HOSE - 3/16" (5 mm) ID x 60" (1524 mm) long, cut from S118575 bulk hose, see below

1шт.

21

217-126

FITTING,3/16" Hose Barb x 1/4" Male NPTF

BARB FITTING - straight

1шт.

22

E36685

FITTING

UNION - engine

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

H400184

FUEL HOSE,6.35 mm ID x 1905.00 mm, SAE 30R1, SAE 30R3

6.35 mm ID x 1905.00 mm Bulk, SAE 30R1, SAE 30R3, Cut from Bulk Hose

1шт.

S118575

HOSE,0.19" ID x 300.00", SAE 30R3

- Bulk 0.19" ID x 300.00", SAE 30R3

1шт.
