Запчасти Case CASE (3-48) - FUEL LIFT PUMP (03) - FUEL SYSTEM

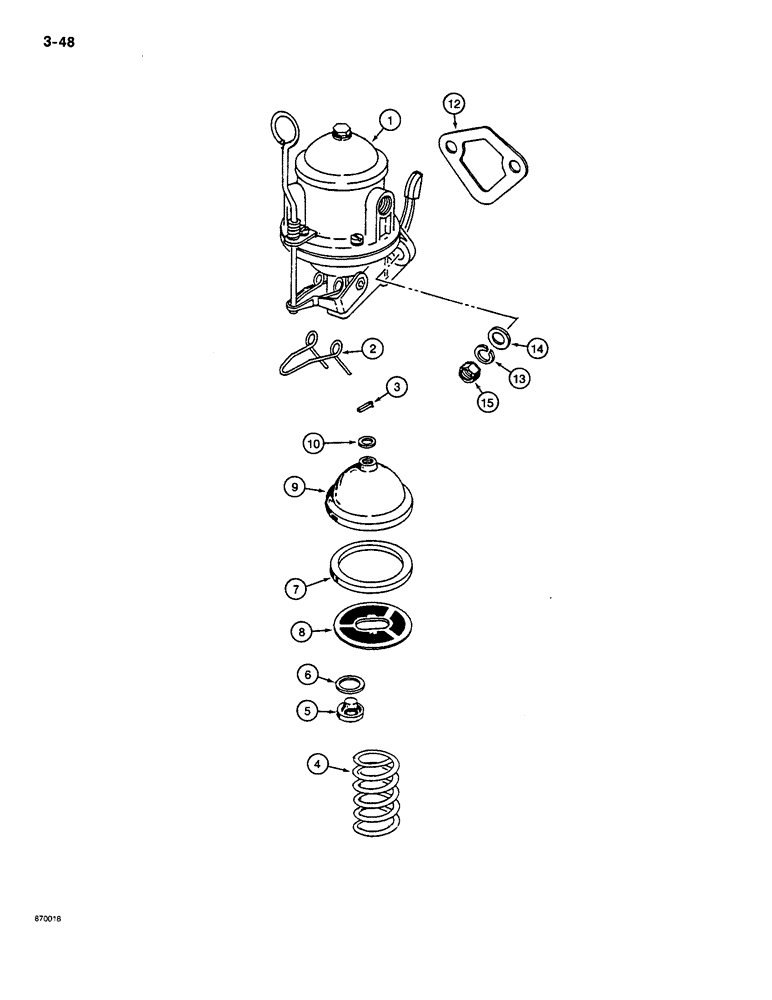

Схема запчастей Case CASE - (3-48) - FUEL LIFT PUMP (03) - FUEL SYSTEM
7
2
14
3
6
12
8
13
4
9
5
10
1
15

Артикул

Название

Примечание

Количество

1

E36566

PUMP

ASSEMBLY - fuel lift, Includes: Refs. 2-11

1шт.

2

E36567

SPRING

- pump

1шт.

3

E36568

RETAINER

- rocker arm pin

2шт.

4

E36569

VALVE SPRING

SPRING - diaphragm

1шт.

5

E36570

LOCK VALVE

VALVE - fuel lift pump

2шт.

6

E36571

GASKET

- valve

2шт.

7

E36572

GASKET

- filter cover

1шт.

8

E36573

FILTER

SCREEN - filter

1шт.

9

E36574

COVER ASSY

COVER - filter

1шт.

10

E36575

WASHER

- cover screw

1шт.

11

E36667

SCREW

- cover, not shown

1шт.

12

E36576

GASKET

-, Serial Range: pump-block

1шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

14

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

2шт.

15

129-122

NUT,5/16"-24, G5

2шт.

REPAIR KIT E36689 INCLUDES REFS. 5-6-7-8 &10

1шт.

GASKET SET USED AFTER SN-18V920BD216 IS E41738 (LEYLAND ENG.)

1шт.
