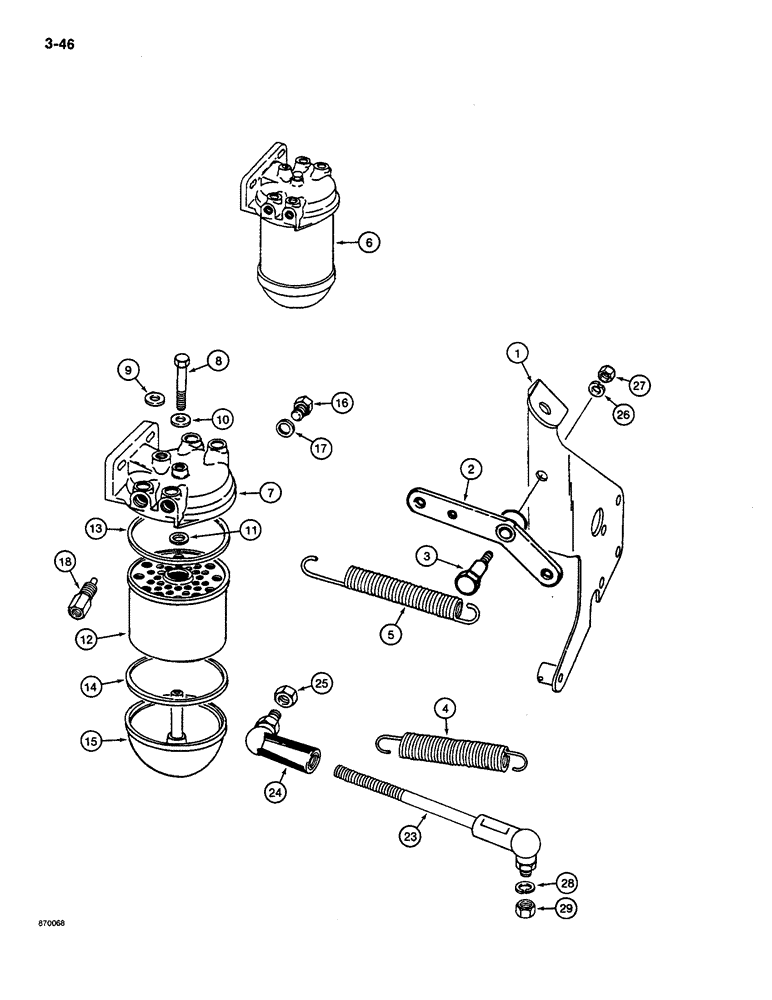

Запчасти Case CASE (3-46) - FUEL FILTER AND CONTROL CABLE BRACKET (03) - FUEL SYSTEM

1

E36614

BRACKET

- control calbe, used on models before engine SN 18V/920B/D101

1шт.

2

E41076

LEVER

- bellcrank, used on models with engine SN 18V/920B/D101 thru 18V/920B/D320

1шт.

2

E44147

LEVER

- bellcrank, used on models with engine SN 18V/920B/D321 and after

1шт.

3

E41353

BOLT

BOLT - pivot, used on models with engine SN 18V/920B/D101 thru 18V/920B/D320

1шт.

3

E44148

BOLT

- pivot, used on models with engine SN 18V/920B/D321 and after

1шт.

4

E36615

SPRING

- return, fuel cut-off lever

1шт.

5

E36616

SPRING

- return, throttle lever

1шт.

6

E36617

FILTER

ASSEMBLY - fuel, Includes: Refs. 7-15

1шт.

7

E36618

COVER

- filter

1шт.

8

E36619

BOLT

BOLT - center

1шт.

9

E36620

RING

WASHER - sealing

1шт.

10

K963895

WASHER

- fuel filter

1шт.

11

E36622

RING

- element sealing

1шт.

12

K960911

FUEL FILTER,Single pkg qty. For multi pkg [qty.10] order K960911MP

ELEMENT - fuel filter

1шт.

13

K965801

RING

- cover sealing

1шт.

14

K965802

RING

- base sealing

1шт.

15

E36625

BASE

- fuel filter

1шт.

16

E36626

PLUG

- filter

1шт.

17

E36627

WASHER

- plug

1шт.

18

E36628

VALVE

- non-return

1шт.

19

E41357

BRACKET - fuel filter, not shown

1шт.

20

E41358

SPACER - bracket to pillar unit, not shown

2шт.

21

E41359

SCREW - hex head 3/8" - 24 NF x 1-1/4", not shown

2шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Not shown 3/8"

2шт.

23

E41352

JOINT

ROD - pump

1шт.

24

E41351

BALL JOINT

- rod

1шт.

25

129-37

NUT,#10-32

1шт.

26

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

27

129-121

NUT,1/4"-28, G5

Special 1/4"-28, G5

1шт.

28

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

29

129-121

NUT,1/4"-28, G5

2шт.
