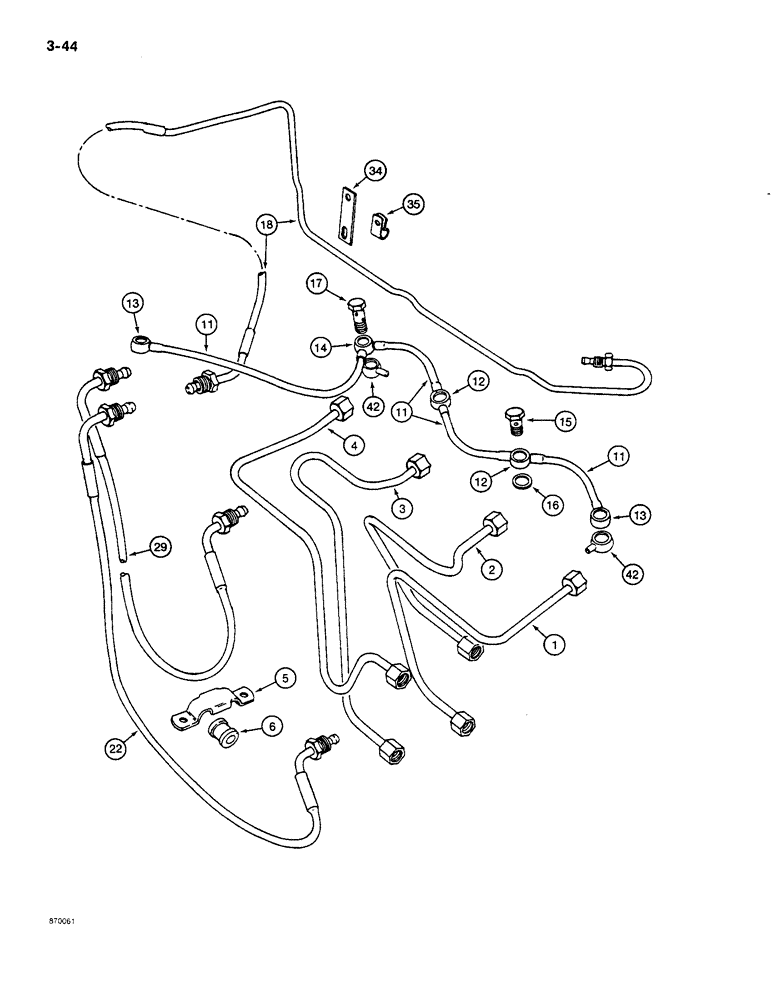

Запчасти Case CASE (3-44) - FUEL LINES (03) - FUEL SYSTEM

1

E36577

TUBE

PIPE - No. 1 Cylinder

1шт.

2

E36578

TUBE

PIPE - No. 2 Cylinder

1шт.

3

E36579

TUBE

PIPE - No. 3 Cylinder

1шт.

4

E36580

TUBE

PIPE - No. 4 Cylinder

1шт.

5

E36581

CLAMP

- injection pipe

4шт.

6

E36582

BUSHING

- injection pipe

4шт.

7

E36667

SCREW

- cover, not shown

4шт.

8

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Not shown 1/4"

4шт.

9

129-121

NUT,1/4"-28, G5

Not shown 1/4"-28, G5

4шт.

10

E36583

PIPE

ASSEMBLY -, Serial Range: injector-filter

1шт.

11

H404038

FUEL HOSE,4.80 mm ID x 2159.00 mm, SAE 30R3

Includes: Refs. 12-14 4.80 mm ID x 2159.00 mm, SAE 30R3

1шт.

12

E41406

FITTING

BANJO - double, union

2шт.

13

E36685

FITTING

BANJO UNION - spill pipe, single

2шт.

14

E41179

FITTING

BANJO UNION - 90 degree

1шт.

15

E36584

BOLT

- banjo union

4шт.

16

E36585

WASHER

- special

11шт.

17

E36586

BOLT

- banjo leak pipe to No. 4 injector

1шт.

18

E41071

PIPE

- lift, Serial Range: pump-filter

1шт.

19

E41074

TUBE

HOSE - pipe, not shown

1шт.

20

E41052

FERRULE

SLEEVE - compression, not shown

2шт.

21

E36592

SCREW

NUT - tube, not shown

2шт.

22

E41072

PIPE

- filter to injection pump

1шт.

23

E41074

TUBE

HOSE - pipe, not shown

1шт.

24

E36590

FITTING

ELBOW - pipe, not shown

1шт.

25

E41052

FERRULE

SLEEVE - compression, not shown

1шт.

26

E36592

SCREW

NUT - tube, not shown

2шт.

27

E41073

CONNECTOR, ELEC

CONNECTOR - pipe, not shown, Includes: Ref. 28

1шт.

28

E41052

FERRULE

SLEEVE - compression, not shown

1шт.

29

E36589

FUEL TUBE

PIPE - injection pump to filter, Includes: Refs. 30, 31

1шт.

30

E41074

TUBE

HOSE - pipe, not shown

1шт.

31

E36590

FITTING

ELBOW - pipe, not shown

2шт.

32

E36592

SCREW

NUT - tube, not shown

2шт.

33

E41052

FERRULE

SLEEVE - compression, not shown

2шт.

34

E36593

BRACKET

- pipe to side cover

1шт.

35

E36594

CLIP

-, Serial Range: pipe-bracket

1шт.

36

E36657

SCREW

- special, not shown

1шт.

37

195-518

WASHER,1/4", SAE

- flat, 1/4", plated, not shown

1шт.

38

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Not shown 1/4"

1шт.

39

E36594

CLIP

- fuel pipe to rear plate

1шт.

40

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

Hex, 3/8"-24 x 1", G5, Full Thd (Not shown)

1шт.

41

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Not shown 3/8"

1шт.

42

E36685

FITTING

BANJO UNION - single, Serial Range: return-reservoir

2шт.
