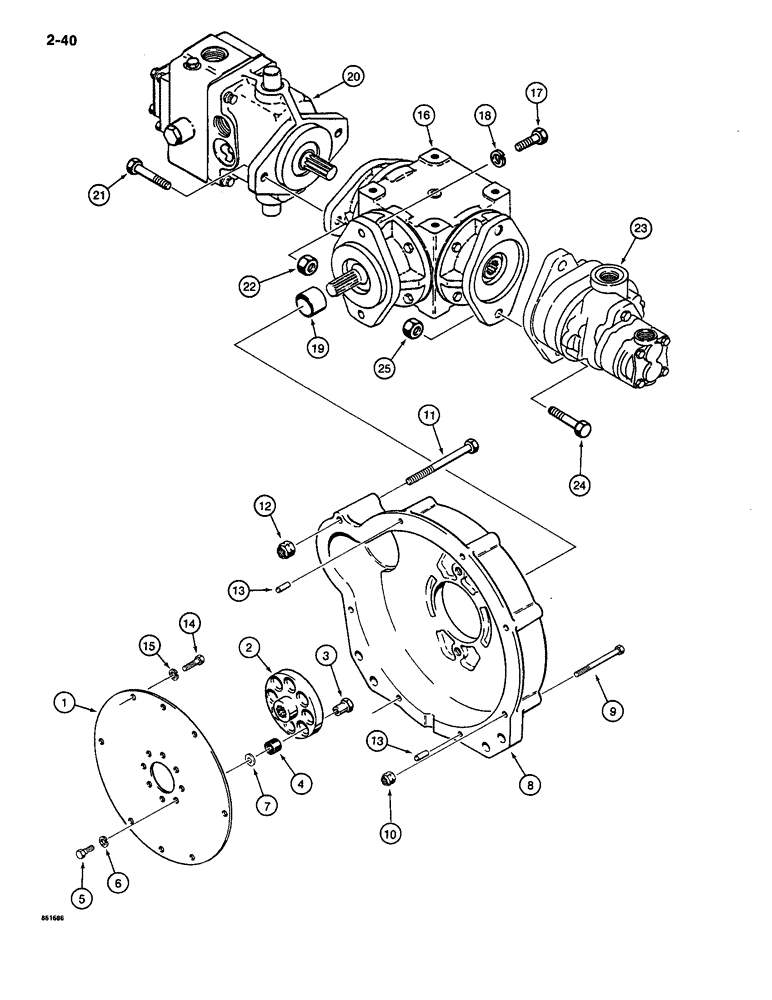

Запчасти Case CASE (2-40) - FLYWHEEL HOUSING AND DRIVE PUMPS (02) - ENGINE

1

H334631

PLATE

- flex

1шт.

H630053

HUB CAP

HUB ASSEMBLY - flex drive, Includes: Refs. 2-7

1шт.

2

NSS

NOT SOLD SEPARAT

HUB - drive

1шт.

3

N7967

BUSHING

NUT - special, steel

8шт.

4

N7968

BLOCK

BUSHING - special, neoprene

8шт.

5

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

8шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

7

195-103

WASHER,5/16"

- flat, , plated 5/16"

8шт.

8

H335653

HOUSING

- flywheel

1шт.

9

113-138

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

5шт.

10

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

5шт.

11

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

1шт.

12

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

1шт.

13

H753855

GUIDE

DOWEL PIN - housing to engine, locating

2шт.

14

114-102

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

6шт.

15

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

16

H624650

PUMP

ASSEMBLY - primary drive, parts list figure 5-83A

1шт.

17

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

18

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

19

H409169

SPACER

- primary drive pump

1шт.

20

H628040

PUMP, HYDRAULIC

PUMP ASSEMBLY - ground drive, parts list figure 6-92

1шт.

21

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

22

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC, plated

2шт.

23

H626069

PUMP

ASSEMBLY - dual, plow and steering, parts list figure 5-82

1шт.

24

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

25

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC, plated

2шт.
