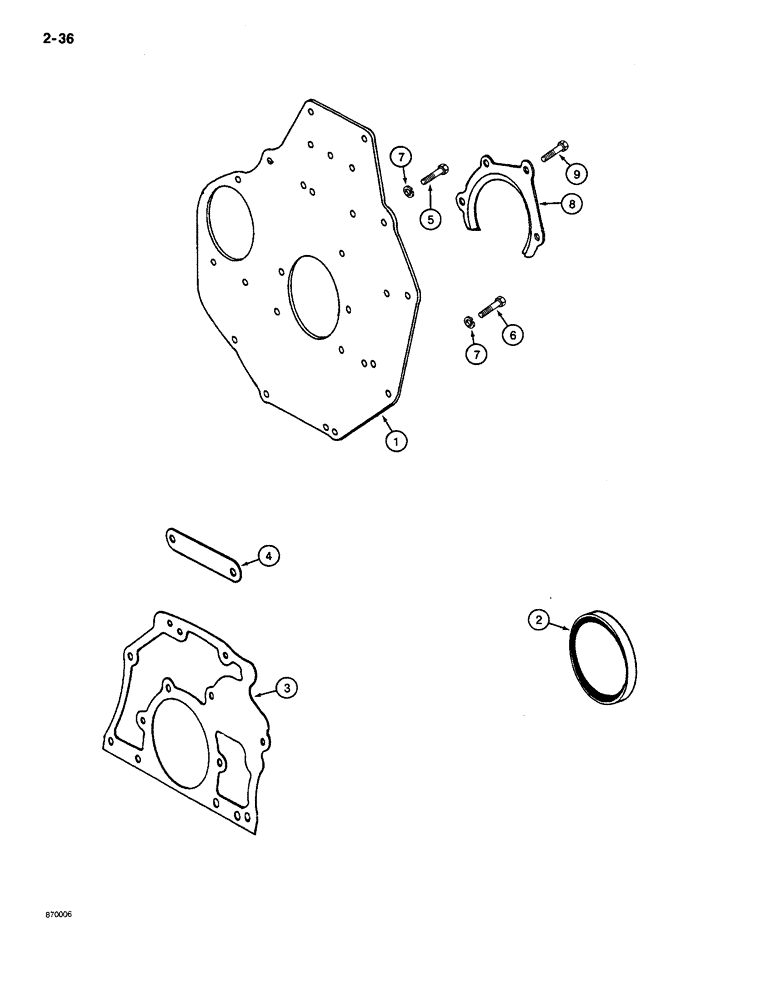

Запчасти Case CASE (2-36) - REAR MOUNTING PLATE, REAR OIL SEAL (02) - ENGINE

1

H362285

PLATE

- mounting, rear

1шт.

2

E36605

SEAL

- oil, crankshaft, rear

1шт.

3

E36606

GASKET

-, Serial Range: plate-crankcase

1шт.

4

E36608

GASKET

- plate to block, upper

1шт.

5

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

Hex, 3/8"-24 x 1", G5, Full Thd

2шт.

6

E36670

PIPE

SCREW - mounting, Serial Range: plate-block

8шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

8

E36609

WASHER

- lock, oil seal retaining

1шт.

9

E36671

SCREW

BOLT - 5/16" - 24 NF x 7/8", mounting, Serial Range: plate-block

4шт.
