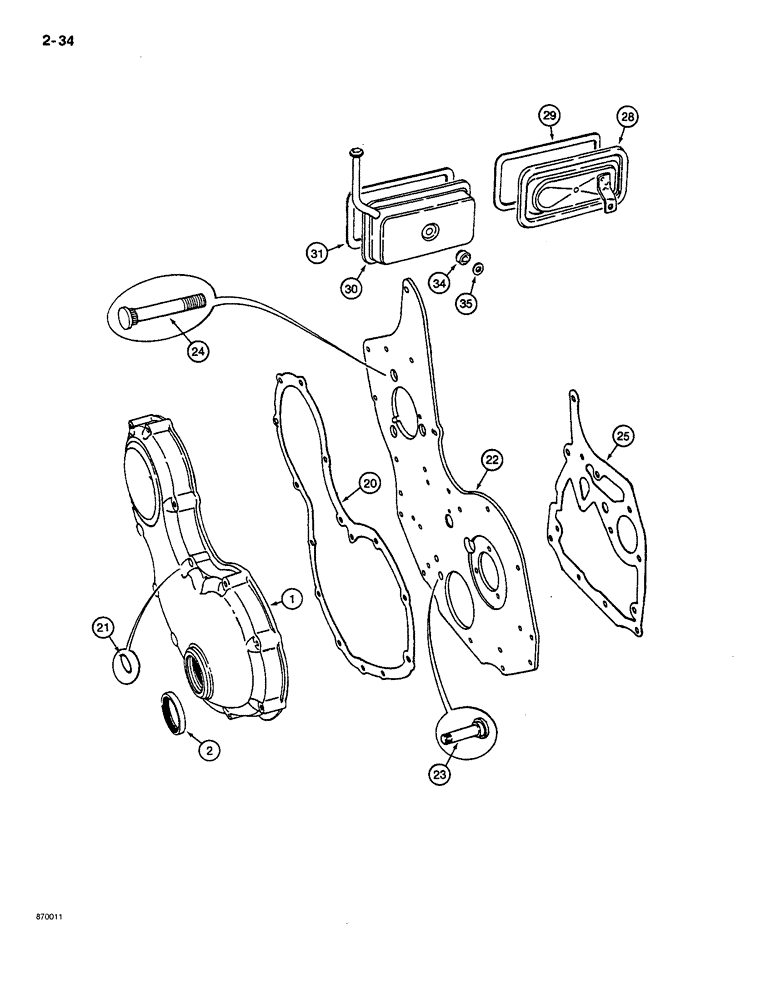

Запчасти Case CASE (2-34) - TIMING CHAIN COVER AND SIDE COVERS (02) - ENGINE

E36535

COVER

ASSEMBLY - timing chain, Includes: Refs. 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - timing chain

1шт.

2

E36536

SEAL

- oil

1шт.

3

E36659

BOLT

- 5/16" - 24 NF x 1-3/4", not shown

2шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Not shown 5/16"

3шт.

5

195-521

WASHER,5/16", SAE

- flat, 5/16", plated, not shown

2шт.

6

E36660

BOLT

- 5/16" - 24 NF x 2", not shown

3шт.

7

E36659

BOLT

- 5/16" - 24 NF x 1-3/4", not shown

3шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Not shown 5/16"

6шт.

9

195-521

WASHER,5/16", SAE

- flat, 5/16", plated, not shown

6шт.

10

E36661

BOLT

- cover and plate to bearing cap, not shown

2шт.

11

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Not shown 1/4"

2шт.

12

195-518

WASHER,1/4", SAE

- flat, 1/4", plated, not shown

2шт.

13

E36660

BOLT

- 5/16" - 24 NF x 2", not shown

1шт.

14

E36662

BOLT

BOLT - cover to mounting plate, not shown

2шт.

15

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Not shown 1/4"

2шт.

16

195-518

WASHER,1/4", SAE

- flat, 1/4", plated, not shown

2шт.

17

E36663

BOLT

BOLT - cover to plate and hub, not shown

2шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Not shown 5/16"

2шт.

19

195-521

WASHER,5/16", SAE

- flat, 5/16", plated, not shown

2шт.

20

E36537

GASKET

- timing chain cover

1шт.

21

E36538

O-RING

- timing chain cover

1шт.

22

E36539

PLATE

- engine mounting, front

1шт.

23

E36540

AXLE PIN

PIN - plate

1шт.

24

E36541

BOLT

- fuel injection pump and hub

3шт.

25

E36542

GASKET

- timing chain, Serial Range: cover-block

1шт.

26

E36664

COVER

SCREW - plate to crankcase, not shown

2шт.

27

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Not shown 5/16"

2шт.

28

E36543

COVER ASSY

COVER - cylinder side, front

1шт.

29

E36544

GASKET

- cylinder cover, front

1шт.

30

E36545

COVER ASSY

COVER - cylinder side, rear

1шт.

THE HOSE THAT CONNECT TO THIS REF IS E36631 AND CLIP E36630.ALSO REFERENCE FIGURE 2-16 REF. 11.

1шт.

31

E36546

GASKET

- rear cylinder cover

1шт.

32

E36665

SCREW

- side cover, not shown

1шт.

33

P36666

FIXED HINGE

SCREW - side cover, not shown

1шт.

34

E36547

BUSHING

- rear cylinder cover

2шт.

35

E36548

WASHER

- special

2шт.
