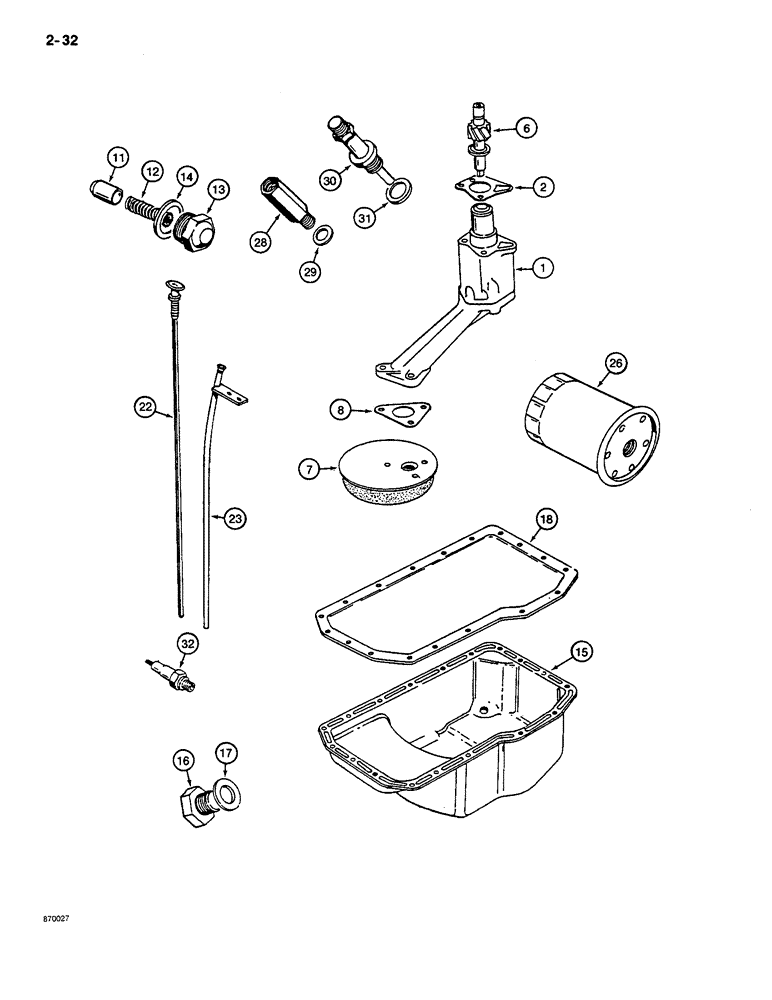

Запчасти Case CASE (2-32) - OIL PAN, OIL FILTER, AND OIL PUMP (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
E36520
PUMP
- oil
1шт.
2
E36521
GASKET
-, Serial Range: pump-crankcase
1шт.
3
195-521
WASHER,5/16", SAE
- flat, 5/16", plated, not shown
3шт.
4
E36650
WASHER
- lock, not shown
3шт.
5
E37965
NUT
- stud, not shown
3шт.
6
E36522
SPINDLE
- oil pump drive
1шт.
7
E36523
STRAINER ASSY.
STRAINER - oil
1шт.
8
E36524
GASKET
-, Serial Range: strainer-pump
1шт.
9
E36669
SCREW
- strainer to pump, not shown
3шт.
10
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, , Not shown 1/4"
3шт.
11
E36525
VALVE
- oil release
1шт.
12
E36526
SPRING
- valve
1шт.
13
E36527
NUT
- cap
1шт.
14
E36528
WASHER
- copper
1шт.
15
E36529
RESERVOIR
PAN - oil
1шт.
16
E36530
PLUG
- drain
1шт.
17
E36417
WASHER
- drain plug
1шт.
18
E36531
GASKET
- oil pan
1шт.
19
E36657
SCREW
- special, not shown
18шт.
20
193-60
LOCK WASHER,Int Tooth, 1/4"
WASHER, LOCK, , Not shown Int Tooth, 1/4"
18шт.
21
195-518
WASHER,1/4", SAE
- flat, 1/4", plated, not shown
18шт.
22
E36532
DIPSTICK
- engine oil level
1шт.
23
E36533
TUBE
- dipstick
1шт.
24
E36658
BOLT,Hex, M4 x 12mm, Cl 8.8
SCREW - bracket to pillar nut, not shown
2шт.
25
195-521
WASHER,5/16", SAE
- flat, 5/16", not shown
2шт.
26
E36534
FILTER
- oil, 5/8", used on models prior to engine SN 18V/738B/D460
1шт.
26
E38874
FILTER
- oil, 3/8", used on models with engine SN 18V/738B/D460 and after
1шт.
27
E36413
TUBE NUT
ADAPTER - oil filter, used on models prior to engine SN 18V/738B/D460, not shown
1шт.
27
E38869
TUBE NUT
ADAPTER - oil filter, used on models with engine SN 18V/738B/D460 and after, not shown
1шт.
28
E36633
ADAPTER
- switch
1шт.
29
E36417
WASHER
- adapter
1шт.
30
E36629
ADAPTER
- oil, Serial Range: pipe-cooler
1шт.
31
E36528
WASHER
- copper
1шт.
32
E36632
PRESSURE SWITCH
SENDER - oil pressure
1шт.
33
H390427
HOSE
- oil drain, not shown
1шт.
34
221-522
CAP,1/8" NPT
- pipe, , not shown 1/8" NPT
1шт.
Выбрано товаров: 36
