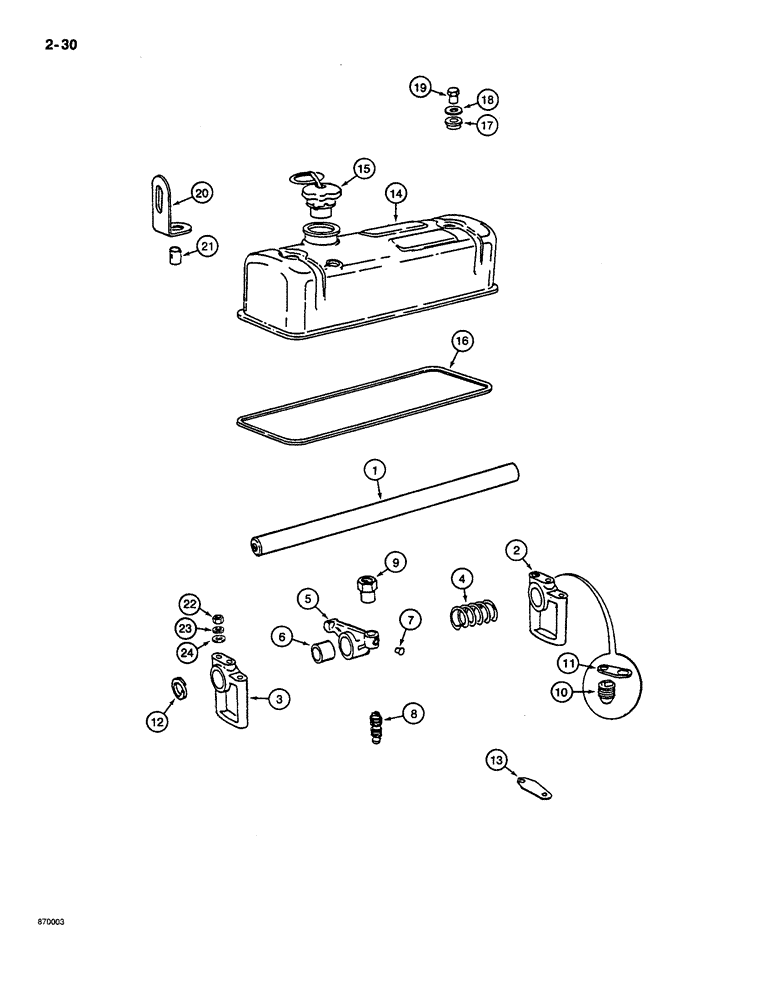

Запчасти Case CASE (2-30) - ROCKER ARMS AND COVER (02) - ENGINE

1

E36500

SHAFT

- valve rocker

1шт.

2

E36501

BRACKET

- rocker shaft, tapped

1шт.

3

E36502

BRACKET

- rocker shaft, plain

3шт.

4

E36503

SPRING

- rocker shaft

3шт.

E36504

ROCKER

ARM ASSEMBLY - valves, Includes: Refs. 5-7

8шт.

5

NSS

NOT SOLD SEPARAT

ROCKER ARM - valves

1шт.

6

E36505

BUSHING

- rocker arm

1шт.

7

E36506

RIVET

POP RIVET - rocker arm

1шт.

8

E36507

ADJUSTMENT SCREW

SCREW - adjusting

8шт.

9

E36508

NUT

- locking

1шт.

10

E36509

SCREW,3/8" - 24

- locating, rocker shaft

1шт.

11

E36510

PLATE

- locking

1шт.

12

E36656

WASHER

- spring

2шт.

13

E36511

SHIM

- rocker

2шт.

E36512

COVER

ASSEMBLY - valve, Includes: Refs. 14, 15

1шт.

14

NSS

NOT SOLD SEPARAT

COVER - valve

1шт.

15

E36513

CAP

- engine oil fill

1шт.

16

E36514

GASKET

- cover

1шт.

17

E36515

BUSHING

- cover, rubber

2шт.

18

E36516

CAP

WASHER - cover

2шт.

19

E36517

NUT

- cap

2шт.

20

E36518

BRACKET

- engine sling

2шт.

21

E36519

SPACER

- bracket

2шт.

22

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

4шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

24

E37965

NUT

WASHER - special

4шт.
