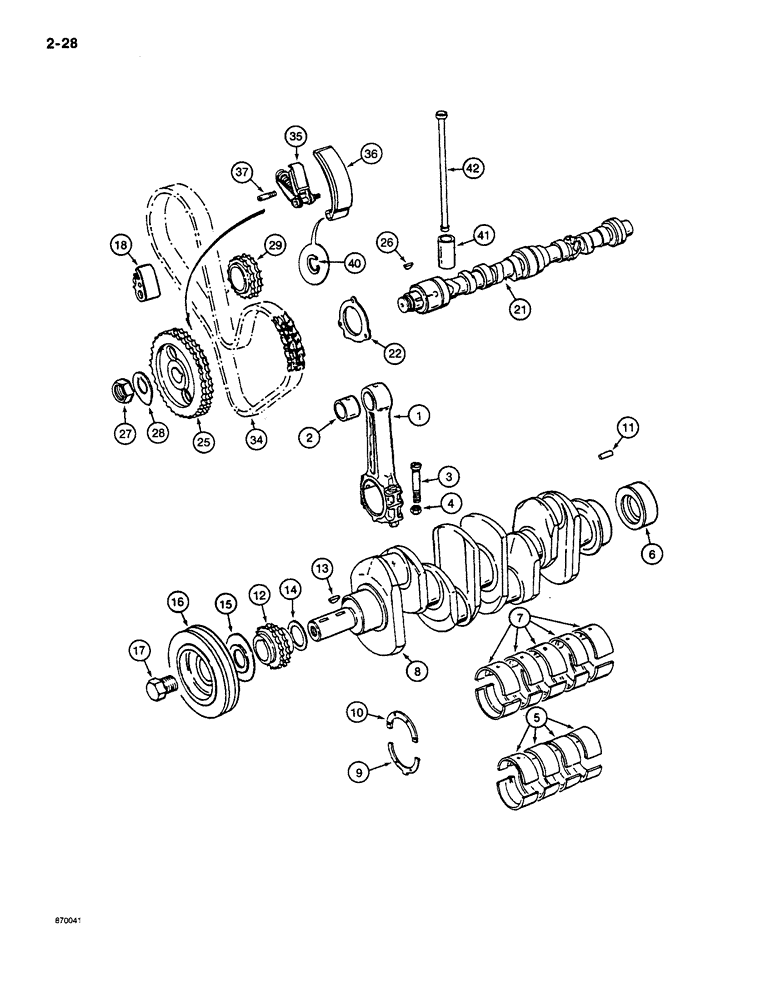

Запчасти Case CASE (2-28) - CRANKSHAFT, CONNECTING RODS, CAMSHAFT, TIMING CHAIN (02) - ENGINE

E42034

ROD

CONNECTING ROD ASSEMBLY - engine, Includes: Refs. 1-4

2шт.

1

NSS

NOT SOLD SEPARAT

CONNECTING ROD - engine

1шт.

2

E36434

BUSHING

- piston pin

1шт.

3

E36435

BOLT

- connecting rod bearing cap

2шт.

4

E36436

NUT

- bearing cap bolt

2шт.

E36437

CRANKSHAFT

ASSEMBLY - engine, Includes: Refs. 5-42

1шт.

5

E36438

SET

BEARING SET - rod, standard

1шт.

5

NSS

NOT SOLD SEPARAT

BEARING SET - rod, undersize

1шт.

Should be E36442 for .010 undersize.

1шт.

6

E42035

BUSHING

- crankshaft

1шт.

7

E36439

SET

MAIN BEARING SET - standard

1шт.

7

NSS

NOT SOLD SEPARAT

MAIN BEARING SET - undersize (0.010)

1шт.

Should be E36442 for .010 undersize.

1шт.

8

NSS

NOT SOLD SEPARAT

CRANKSHAFT - engine

1шт.

9

E43846

WASHER

- standard, set

1шт.

10

E44054

WASHER, THRUST

WASHER - undersize, set

1шт.

11

E36448

DOWEL

PIN - crankshaft

1шт.

12

E36449

DRIVE SPROCKET

GEAR - crankshaft

1шт.

13

E36450

KEY

- pulley and gear

2шт.

14

E36451

WASHER

- packing, gear

1шт.

15

E36452

SLINGER

- oil, crankshaft front

1шт.

16

E36453

SHEAVE

PULLEY - crankshaft, with damper

1шт.

17

E36647

BOLT

- retaining

1шт.

18

E36454

DAMPER

- vibration

1шт.

19

E36649

BOLT

- damper to block and hub, not shown

2шт.

20

E36650

WASHER

-lock, not shown

2шт.

21

E36455

CAMSHAFT

- engine, used on models before engine SN 18V/738B/D460

1шт.

21

E38870

CAMSHAFT

- engine, used on models with engine SN 18V/738B/460 and after

1шт.

22

E36456

PLATE

- camshaft locating

1шт.

23

E36651

SCREW

- special, not shown

3шт.

24

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Not shown 1/4"

3шт.

25

E36457

GEAR

- camshaft

1шт.

26

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

27

E36652

NUT

- camshaft

1шт.

28

E36653

LOCK

WASHER - locking

1шт.

29

E36459

GEAR

- idler

1шт.

30

E38871

HUB

- idler gear, not shown, Includes: Ref. 31

1шт.

31

138-4

PIN,1/16" x 3/8", Slotted

not shown 1/16" x 3/8", Slotted

1шт.

32

E36654

BOLT

BOLT - gear to front plate, not shown

1шт.

33

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Not shown 3/8"

1шт.

34

E36460

CHAIN (AG)

CHAIN - timing

1шт.

35

E36461

ADJUSTER

TENSIONER - chain

1шт.

36

E36462

SHOE

- chain tensioner

1шт.

37

E36463

PIN

- stop, tensioner

1шт.

38

E36655

NUT

- pin, not shown

1шт.

39

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Not shown 5/16"

1шт.

40

E36464

SNAP RING

- chain tension shoe

1шт.

41

E36465

TAPPET

- standard, push rod

8шт.

41

E36466

TAPPET

- undersize (0.010), push rod

8шт.

42

E36468

ROD

- push

8шт.
