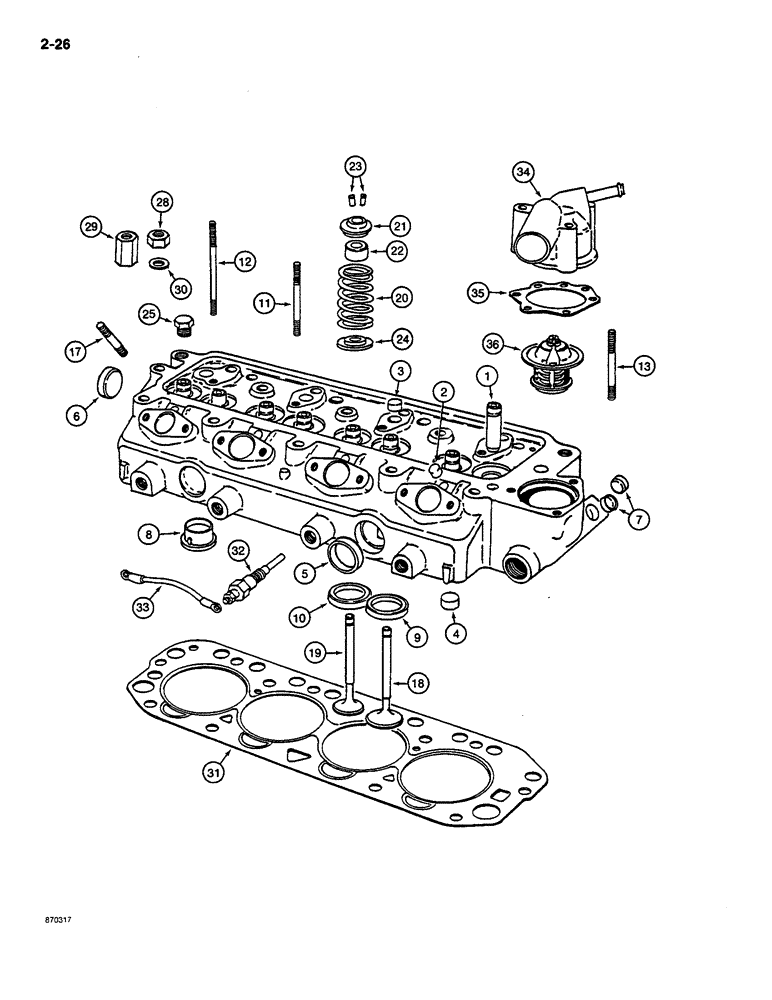

Запчасти Case CASE (2-26) - CYLINDER HEAD AND VALVES (02) - ENGINE
№
Артикул
Название
Примечание
Количество
E44106
HEAD (CYLINDER)
CYLINDER HEAD ASSEMBLY - engine, Includes: Refs. 1-10
1шт.
1
E36470
GUIDE
- valve
8шт.
2
E36404
PLUG
- taper, oil hole
5шт.
3
E41347
PLUG
- core, support hole
1шт.
4
E36472
PLUG
- core, support hole
7шт.
5
E36408
PLUG
- welsh
2шт.
6
E41348
PLUG
- oil hole
1шт.
7
E36473
PLUG
- core
2шт.
8
E44145
INSERT
- combustion chamber, prior to engine SN 18V/738B/D459, if used
1шт.
9
E36475
INSERT
- valve seat, inlet, prior to engine SN 18V/738B/D459, if used
1шт.
10
E36476
INSERT
- valve seat, exhaust
4шт.
11
E36477
STUD
- rocker bracket, short
2шт.
12
E36478
STUD
- rocker bracket, long
2шт.
13
E36479
STUD
- water outlet elbow
3шт.
14
195-521
WASHER,5/16", SAE
- flat, 5/16", plated, not shown
3шт.
15
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, , Not shown 5/16"
3шт.
16
129-122
NUT,5/16"-24, G5
Not shown 5/16"-24, G5
3шт.
17
E36482
STUD
- nozzle holder to cylinder head
8шт.
18
E42222
VALVE
- inlet
4шт.
19
E42223
VALVE
- exhaust
4шт.
20
E36485
SPRING
- valve
8шт.
21
E36486
COLLAR
- valve spring
8шт.
22
E36487
SEAL
- oil, valve stem
4шт.
23
E36488
PIN
COTTER - valve
8шт.
24
E36489
CUP
- valve spring
8шт.
25
E36490
PLUG
- heater boss
2шт.
26
E42231
PLUG
- cylinder head, used on engine SN 18V/738B/D4171 and after, if used, not shown
1шт.
27
E42232
WASHER
- special, used on engine SN 18V/738B/D4171 and after, if used, not shown
1шт.
28
E36491
NUT
- cylinder head stud
11шт.
29
D36492
NUT - cylinder head stud
2шт.
30
E36493
WASHER
- special
13шт.
31
E43469
GASKET
- cylinder head
1шт.
32
E36495
GLOW PLUG
PLUG - glow
4шт.
USING THIS GLOW PLUG IN NEW STYLE E44106 CYLINDER HEAD ALSO REQUIRES CONNECTOR H435974
1шт.
33
E36496
CONNECTOR, ELEC
CONNECTION - glow plug
3шт.
CANNOT BE USED IN NEW STYLE CYLINDER HEAD. USE H435974 AND GLOW PLUG H435973 (IF REQUIRED)
1шт.
34
E36497
MANIFOLD
ELBOW - water outlet
1шт.
35
E36498
GASKET
- elbow
1шт.
Выбрано товаров: 38
