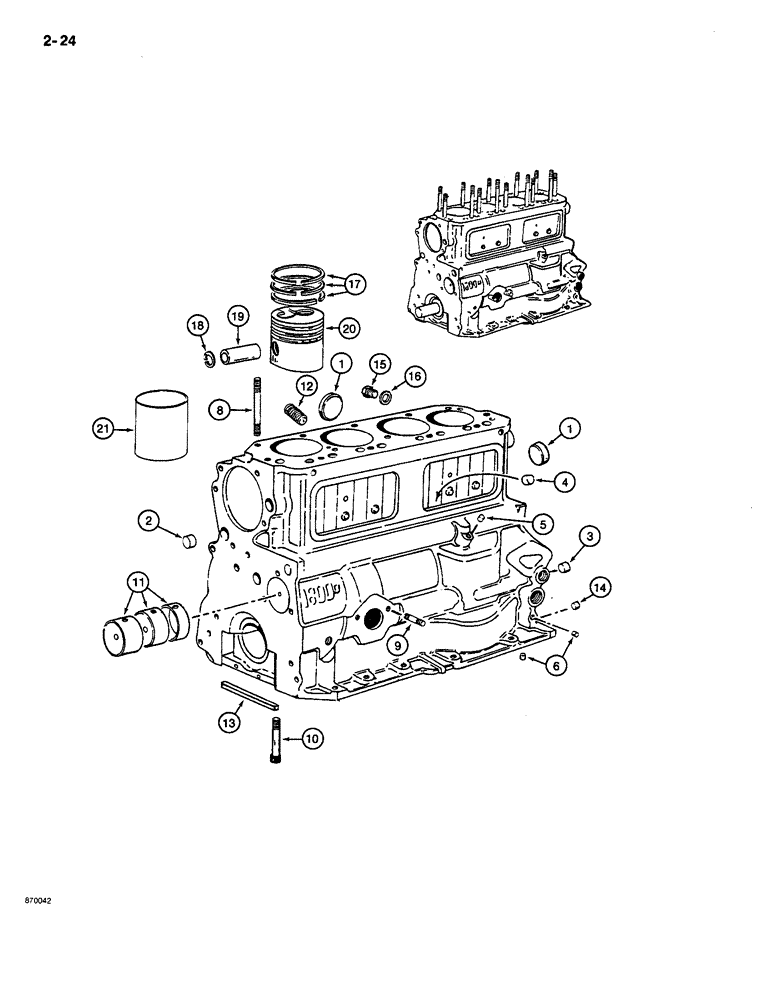

Запчасти Case CASE (2-24) - ENGINE ASSEMBLY, CYLINDER BLOCK, ROTORS, AND RINGS (02) - ENGINE

REF

INSTRUCTION

ENGINE ASSEMBLY - Maxi-Sneaker, no longer available, order components, Includes: Refs. 1-22

1шт.

1

E36401

PLUG

- core

2шт.

2

E36402

BLOCK

PLUG - oil gallery and oil feed hole

6шт.

3

E36403

PLUG

- taper, oil hole, end

1шт.

4

E36404

PLUG

- taper, oil hole, side

11шт.

5

E36406

PLUG

- drilling to camshaft bearing

1шт.

6

E36407

PLUG

- oil relief valve vent hole

2шт.

7

E36408

PLUG

- welsh

3шт.

8

E36409

STUD

- cylinder head, short

10шт.

9

NSS

NOT SOLD SEPARAT

STUD - fuel pump

2шт.

10

E36412

BOLT

- locating, main bearing

10шт.

11

E36405

BEARING LINER

LINER - camshaft bearing, set of 3, used on models with engine SN 18V/738B/D101 thru 18V/738B/D459, must be pressed into block and then, Serial Range: reamed-fit

1шт.

11

E38868

BEARING LINER

LINER - camshaft bearing, set of 3, used on models with engine SN 18V/738B/D460 and after, must be pressed into block and then, Serial Range: reamed-fit

1шт.

12

E36413

TUBE NUT

ADAPTER - oil filter, used on models with engine SN 18V/738B/D101 thru 18V/738B/D459

1шт.

12

E38869

TUBE NUT

ADAPTER - oil filter, used on models with engine SN 18V/738B/D460 and after

1шт.

13

E36414

GASKET

- main bearing cap

2шт.

14

E36415

DOWEL

PIN - gearbox mounting plate

2шт.

15

E36416

PLUG

- cylinder drain

1шт.

16

E36417

WASHER

- drain plug

1шт.

E36419

PISTON

ASSEMBLY - standard, includes Refs. 17- 20

1шт.

E36422

PISTON

ASSEMBLY - oversize (0.020), includes Refs. 17 - 20

1шт.

17

E36427

RING

SET - standard, for one piston

1шт.

17

E36428

RING, SET

RING SET - oversize (0.020), for one piston

1шт.

18

E36431

RING, SNAP

RETAINING RING - piston

1шт.

19

E36430

PIN

- piston

1шт.

20

NSS

NOT SOLD SEPARAT

PISTON - engine

1шт.

21

E36432

SLEEVE CYLINDER

LINER - cylinder

4шт.

22

E43241

STUD - bolt, long, not shown

4шт.
