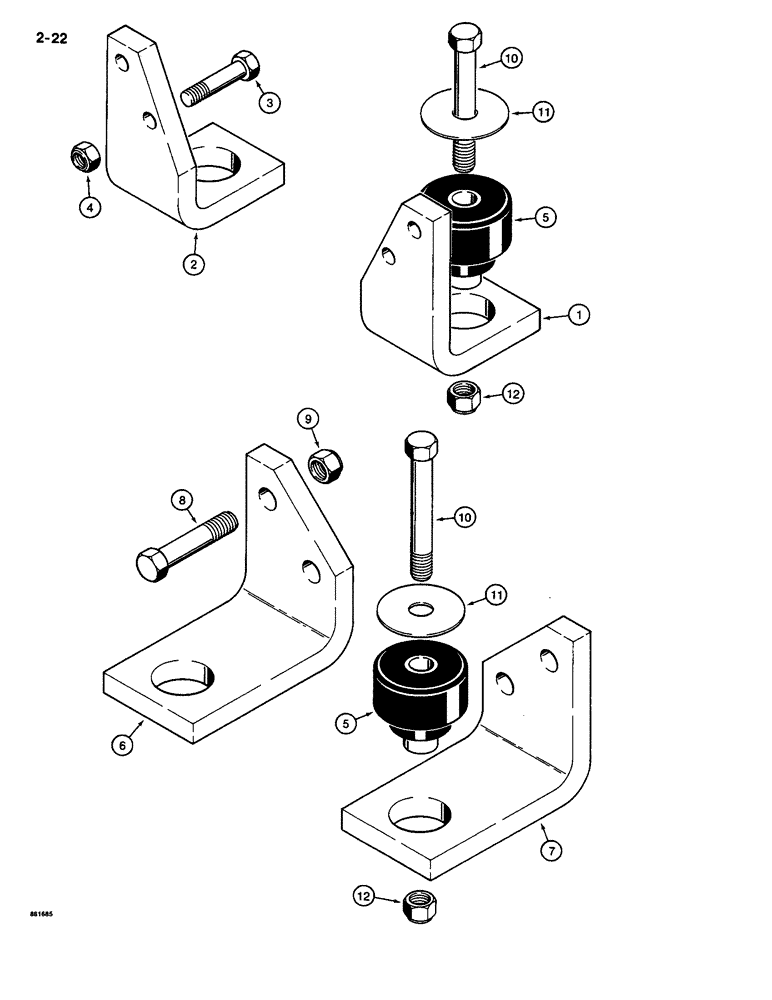

Запчасти Case CASE (2-22) - ENGINE MOUNTING (02) - ENGINE

1

H333823

MOUNTING PARTS

MOUNT - front of engine, right-hand

1шт.

2

H333815

MOUNTING PARTS

MOUNT - front of engine, left-hand

1шт.

3

113-2223

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- hex head, 3/8" - 16 NC x 1-1/2", plated, grade 8

4шт.

4

131-1216

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

4шт.

5

H340562

MOUNTING PARTS

MOUNT - engine

4шт.

6

H335232

MOUNT - rear of engine, left-hand

1шт.

7

H335240

BRACKET

MOUNT - rear of engine, right-hand

1шт.

8

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

9

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC, plated

4шт.

10

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

4шт.

11

H165720

WASHER

- flat, 1/2", special

4шт.

12

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC, plated

4шт.
