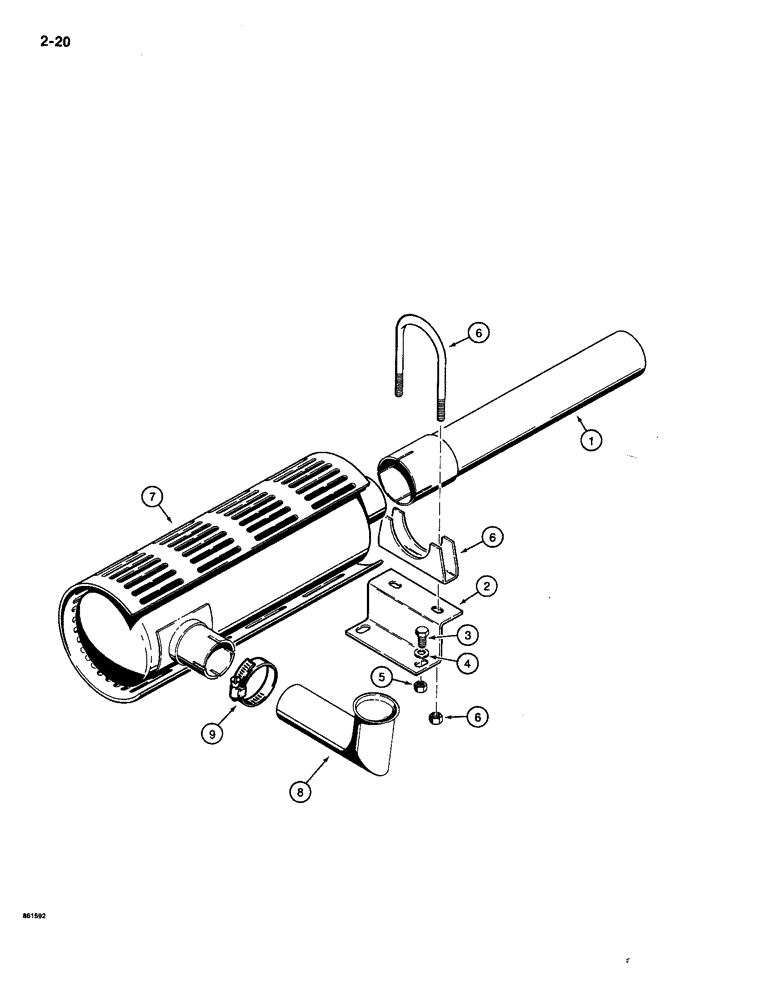

Запчасти Case CASE (2-20) - MUFFLER AND EXHAUST SYSTEM (02) - ENGINE

1

H340125

PIPE, EXHAUST SYSTEM

EXHAUST PIPE - muffler

1шт.

2

H346668

BRACKET

- muffler support

1шт.

3

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

4

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

2шт.

5

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.

6

H262550

CLAMP

- muffler, includes hardware

1шт.

7

H602581

MUFFLER

- exhaust

1шт.

8

H632398

PIPE, EXHAUST SYSTEM

ELBOW - exhaust, Serial Range: manifold-muffler

1шт.

CLAMP TO MANIFOLD IS E36314

1шт.

9

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - elbow

1шт.
