(2-18) - AIR CLEANER

Запчасти Case CASE (2-18) - AIR CLEANER (02) - ENGINE

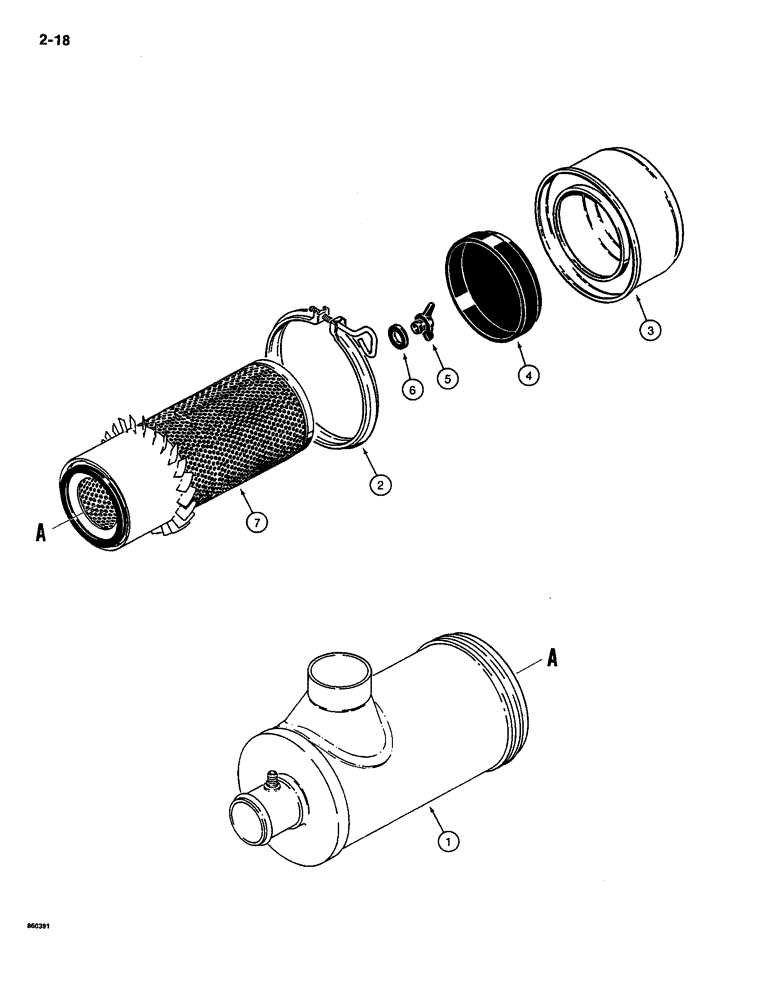

Схема запчастей Case CASE - (2-18) - AIR CLEANER (02) - ENGINE
6
2
3
4
5
7
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

H668939

AIR CLEANER

ASSEMBLY - engine, no longer used, service with D55203 air cleaner and ref. 16, A59569 indicator on figure 2-16

1шт.

D55203

CLEANER ASSY.

AIR CLEANER ASSEMBLY - engine, Includes: Refs. 1-7

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

2

D48199

CLAMP

ASSEMBLY - cup

1шт.

3

D48201

CUP

DUST CUP - air cleaner

1шт.

4

D48200

BAFFLE

- rubber

1шт.

D78354

WING NUT

WING NUT ASSEMBLY - element, Includes: Refs. 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

WING NUT - element

1шт.

6

D37976

GASKET,14.61mm ID x 27.43mm OD x 3.3mm Thk

- wing nut

1шт.

7

D48198

AIR CLEANER

ELEMENT - filter, air cleaner

1шт.
