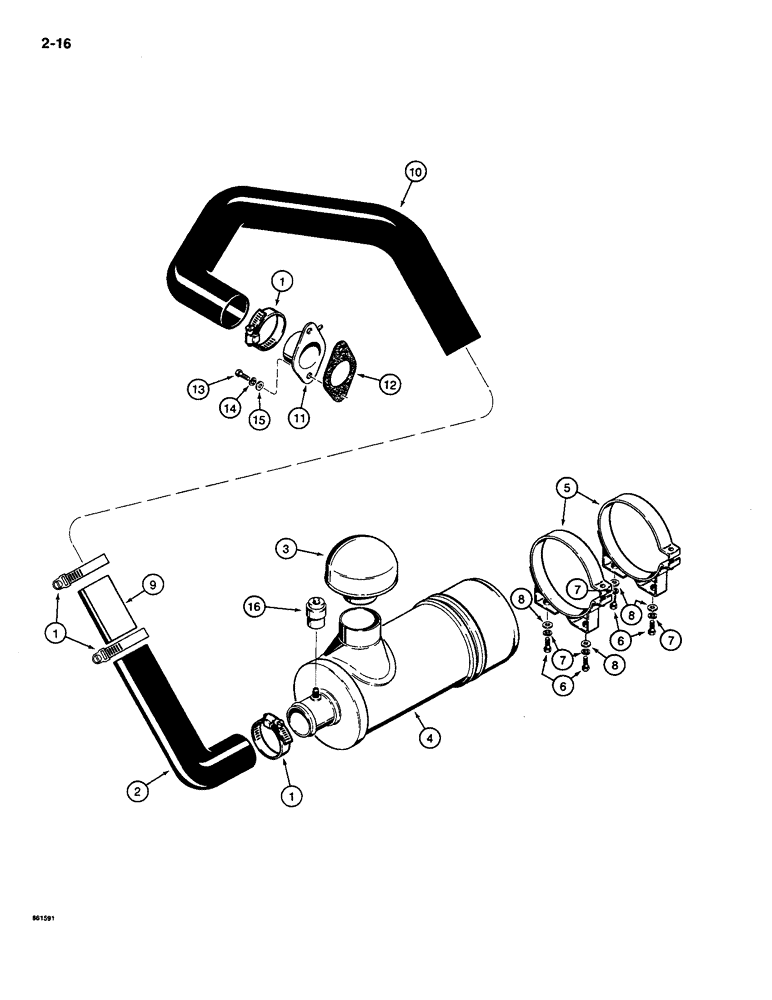

Запчасти Case CASE (2-16) - AIR CLEANER AND AIR INTAKE (02) - ENGINE

1

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

4шт.

2

H291633

INTAKE AIR HOSE,2.00" ID x 6.50", SAE 20R4 CLASS R

HOSE - air cleaner intake

1шт.

3

D22685

CAP

- air cleaner intake

1шт.

4

REF

INSTRUCTION

AIR CLEANER - engine, parts list figure 2-18

1шт.

5

R41654

COLLAR CLAMP

BAND - air cleaner mounting

2шт.

6

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

8

H426775

WASHER

- flat, 5/16", hardened, plated

4шт.

9

H341032

AIR INTAKE TUBE,2" OD

SLEEVE - air intake

1шт.

10

H347856

INTAKE AIR HOSE,2.00" ID x 17.10", SAE 20R4

- Intake to engine 2.00" ID x 17.10", SAE 20R4

1шт.

11

H628081

AIR INTAKE TUBE,1.68" L

ADAPTER - hose to engine

1шт.

HOSE THAT CONNECTS TO THIS REF IS E36631 AND THE CLIP IS PART E36630.ALSO REFERENCE FIGURE 2-34,HOSE & CLIP ATTACHES TO REF. 30 (E36545)

1шт.

12

H353334

GASKET

- adapter

1шт.

13

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

15

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

2шт.

16

A59569

INDICATOR

- air cleaner restriction, if used

1шт.
