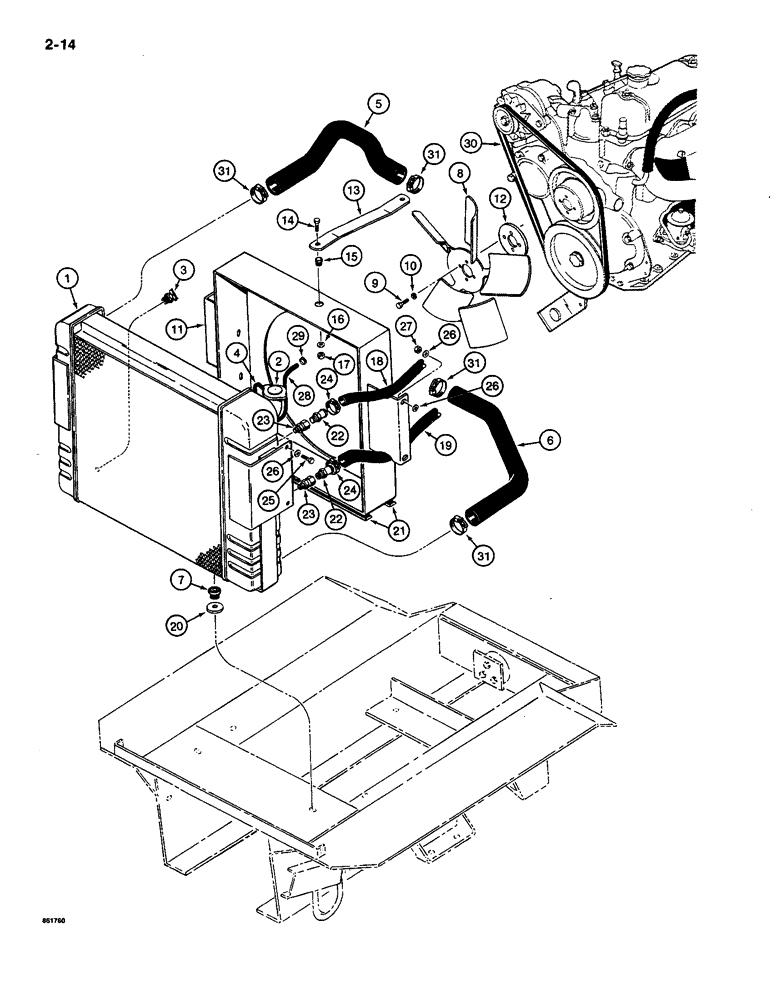

Запчасти Case CASE (2-14) - RADIATOR, FAN, AND MOUNTING (02) - ENGINE

H634618

RADIATOR

- engine cooling, Includes: Refs. 1-4

1шт.

1

NSS

NOT SOLD SEPARAT

RADIATOR - engine cooling

1шт.

2

80889R91

COVER

CAP - radiator

1шт.

3

A27862

COCK, DRAIN

VALVE - drain

1шт.

4

REF

INSTRUCTION

HOSE - 5/16" (8 mm) ID x 20" (508 mm) long, cut from A172261 bulk, overflow, see below

1шт.

5

H347807

RADIATOR HOSE,1.12" ID, 1.25" ID x 8.3", SAE 20R4

Upper 1.12" ID, 1.25" ID x 8.3", SAE 20R4

1шт.

6

H347815

RADIATOR HOSE,1.25" ID x 8.30", SAE 20R4

Lower 1.25" ID x 8.30", SAE 20R4

1шт.

7

H359000

MOUNTING PARTS

MOUNT - radiator

2шт.

8

A173044

FAN

- engine cooling

1шт.

9

114-4

BOLT,Hex, 1/4" - 28 x 1-1/2", Gr 5

- hex head, 1/4" - 28 NF x 1-1/2", plated

4шт.

10

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

11

H635052

DEFLECTOR

SHROUD - fan

1шт.

12

H421156

SPACER

- fan

1шт.

13

H359166

BAR

BRACKET - radiator support, top

1шт.

14

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

15

H340588

BUSHING

- radiator mount

1шт.

16

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

17

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

1шт.

18

H360131

HOSE

- engine oil cooler, upper

1шт.

19

H360123

HOSE

- engine oil cooler, lower

1шт.

20

H182691

RETAINER

- mount

2шт.

21

H291930

PAD - radiator mounting

2шт.

22

217-376

FITTING,5/8" Hose Barb x 3/8" Male NPTF

STEM FITTING - straight

2шт.

23

217-1012

ADAPTER,1/4" - 18 Male NPTF x 3/8" - 18 Female NPTF

- straight

2шт.

24

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

4шт.

25

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

26

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

27

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

4шт.

28

H360156

HOSE

- thermostat housing

1шт.

29

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

2шт.

30

H429357

V-BELT,9.70 mm W

Fan 9.70 mm W

1шт.

31

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

4шт.

A172261

HOSE,7.92mm ID x 1820mm L, SAE 30R6

- Bulk, Use to make Ref. 4 7.50 mm ID, 8.30 mm ID x 1820.00 mm, SAE 30R6 per J30

1шт.
