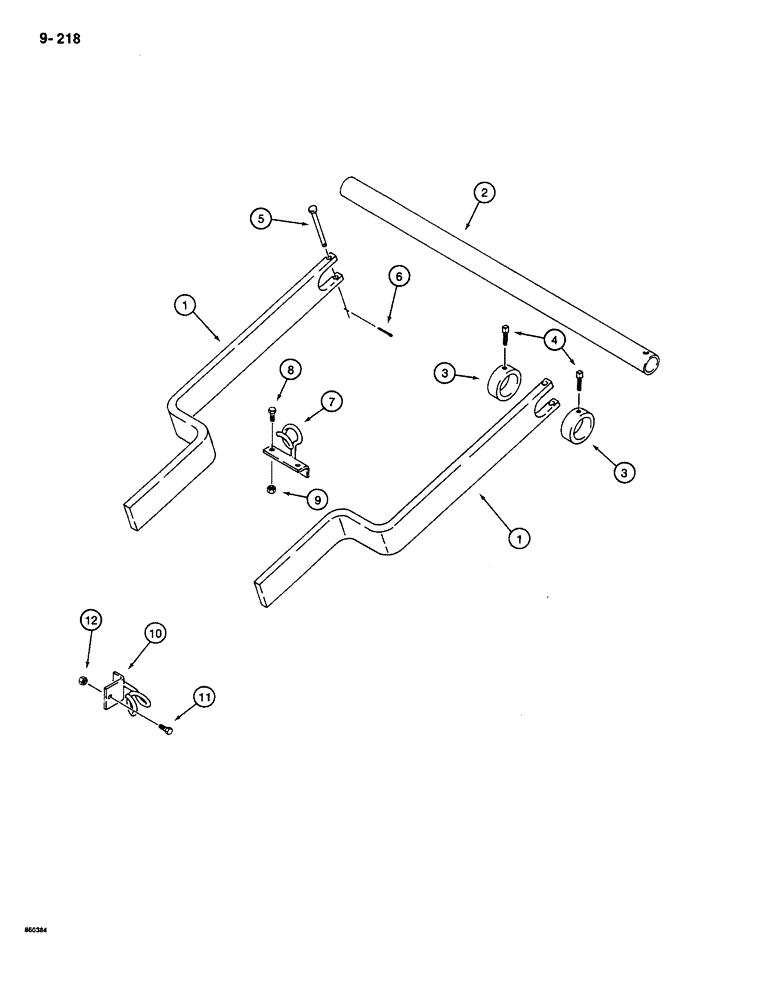

Запчасти Case CASE (9-218) - REEL CARRIER (09) - CHASSIS

1

H347948

ARM

- reel carrier

2шт.

2

H350363

PIPE

- reel carrier

1шт.

3

H350355

COLLAR

- stop

4шт.

4

85-616

SET SCREW,Sq Hd, 3/8"-16 x 1"

- square head, cup point, 3/8" - 16 NC x 1"

4шт.

5

H230243

CLEVIS COUPLING

CLEVIS PIN - 3/8" x 3-5/8" long

2шт.

6

132-334

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

7

H633065

GUIDE

- cable, Serial Range: mounts-hood

1шт.

8

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

9

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.

10

H633081

GUIDE

- cable, Serial Range: mounts-ROPS

1шт.

11

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

12

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

1шт.
