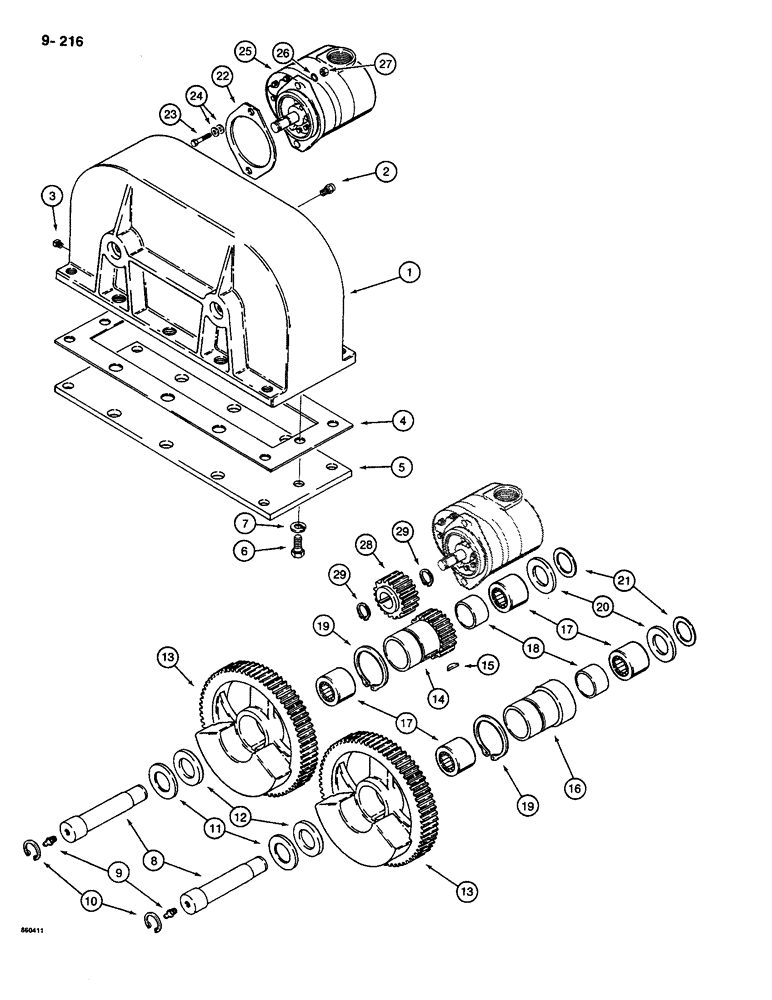

Запчасти Case CASE (9-216) - PLOW GEARBOX ASSEMBLY AND MOTOR MOUNTING (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
H530204
GEAR WHEEL
GEARBOX ASSEMBLY - plow, Includes: Refs. 1-24
1шт.
1
H113209
CASE
HOUSING - gearbox assembly
1шт.
2
L33264
BREATHER
- housing
1шт.
3
221-849
PLUG,Hex Soc, 1/8"-27
- hex socket head, 1/8" NPT, non-plated, drain
1шт.
4
H113266
GASKET
GASKET - housing to cover plate
1шт.
5
H113274
PLATE
- cover, bottom
1шт.
6
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
2шт.
7
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
8
H113258
PIN
- gear and shaft retaining
2шт.
9
219-8
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg
2шт.
10
A21145
SNAP RING,1.25, Int, #125
Ring, Snap, 1.25", Int, #125, shaft
2шт.
11
H159160
WASHER
SHIM - 1/16" (1.5 mm) thick
2шт.
12
H126201
WASHER
THRUST WASHER - hardened, 3/32" (2.5 mm) thick
1шт.
13
H113217
GEAR
- drive and driven
2шт.
14
H113225
HUB
PINION SHAFT - drive gear
1шт.
15
H120550
KEY
- pinion shaft, gear retaining
1шт.
16
H113233
HUB
CARRIER - driven gear
1шт.
17
H748210
NEEDLE BEARING,Needle, 31.75mm ID x 44.45mm OD x 31.75mm W
- pinion shaft and carrier
4шт.
18
H369496
SPACER
- needle bearings
2шт.
19
F40807
SNAP RING,#225, Ext
RING, Snap, , gear #225, Ext
2шт.
20
H113241
BEARING WASHER
SHIM - 1/8" (3.5 mm) thick, next to needle bearing
1шт.
21
H357517
BEARING WASHER
SHIM - 1/32" (0.8 mm) thick, do not use next to needle bearing
1шт.
22
H32375
GASKET
- motor
1шт.
23
113-348
BOLT
- hex head, 7/16" - 14 NC x 1-1/2", plated
2шт.
24
195-529
WASHER,7/16", SAE
- flat, 7/16", plated
4шт.
25
H654806
GEAR WHEEL
MOTOR ASSEMBLY - plow drive, parts list figure 8-158
1шт.
26
193-97
LOCK WASHER,Ext Tooth, 7/16"
WASHER, LOCK, Ext Tooth, 7/16"
2шт.
27
131-1129
LOCK NUT,7/16"-14, GA
NUT - hex, self-locking, 7/16" - 14 NC, plated
2шт.
28
H113282
GEAR
DRIVE GEAR - plow gearbox
1шт.
29
A27521
SNAP RING,#68, Ext
Ring, Snap, , gear #68, Ext
2шт.
Выбрано товаров: 30
