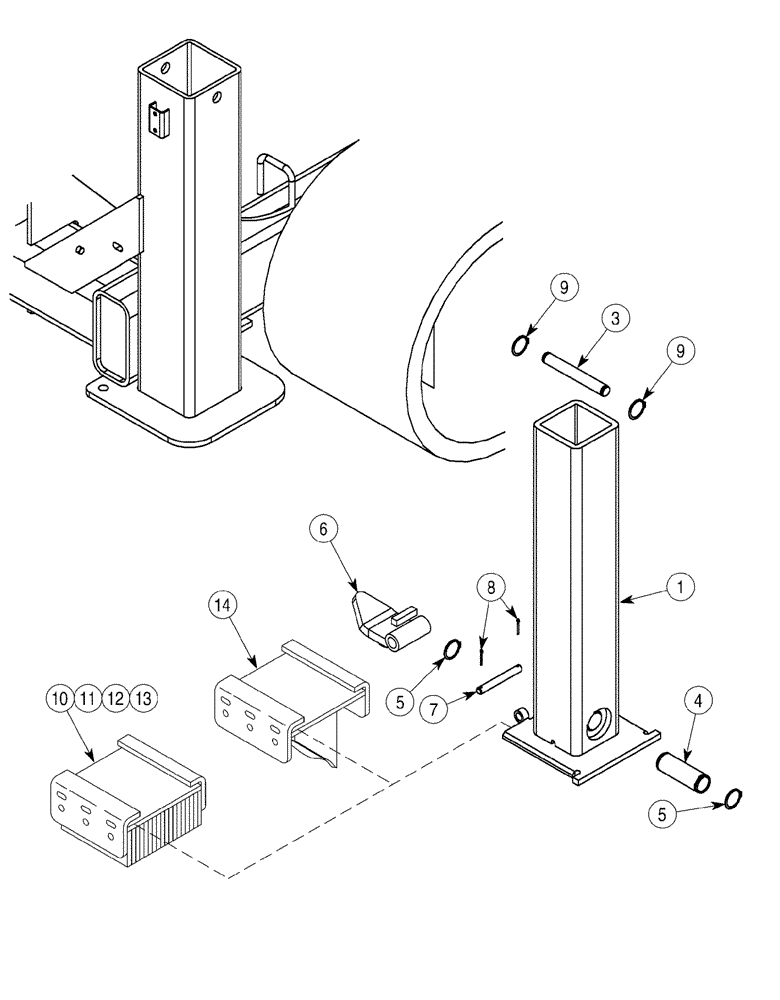

Запчасти Case 6030 (09-15) - STABILIZERS (09) - CHASSIS/ATTACHMENTS

1

329343A1

SUPPORT ASSY.

2шт.

335699A1

CYLINDER

Rear Stabilizer, See Page(s) 8-83, Not Illustrated

2шт.

3

329337A1

PIN

Upper

2шт.

4

329338A1

PIN

Lower

2шт.

5

103-11150

SNAP RING,#150, Ext

4шт.

6

329347A1

LATCH

2шт.

7

329333A1

PIN

2шт.

8

432-816

COTTER PIN,1/8" x 1"

4шт.

9

103-1187

SNAP RING,#87, Ext

4шт.

10

394059A1

FOOT

Rubber Foot, If Used, Consists Of 11 - 13

2шт.

11

NSS

NOT SOLD SEPARAT

Foot

1шт.

12

NSS

NOT SOLD SEPARAT

Rod

3шт.

13

NSS

NOT SOLD SEPARAT

Segment

24шт.

14

396354A1

PAD

Spade Foot, If Used

2шт.
