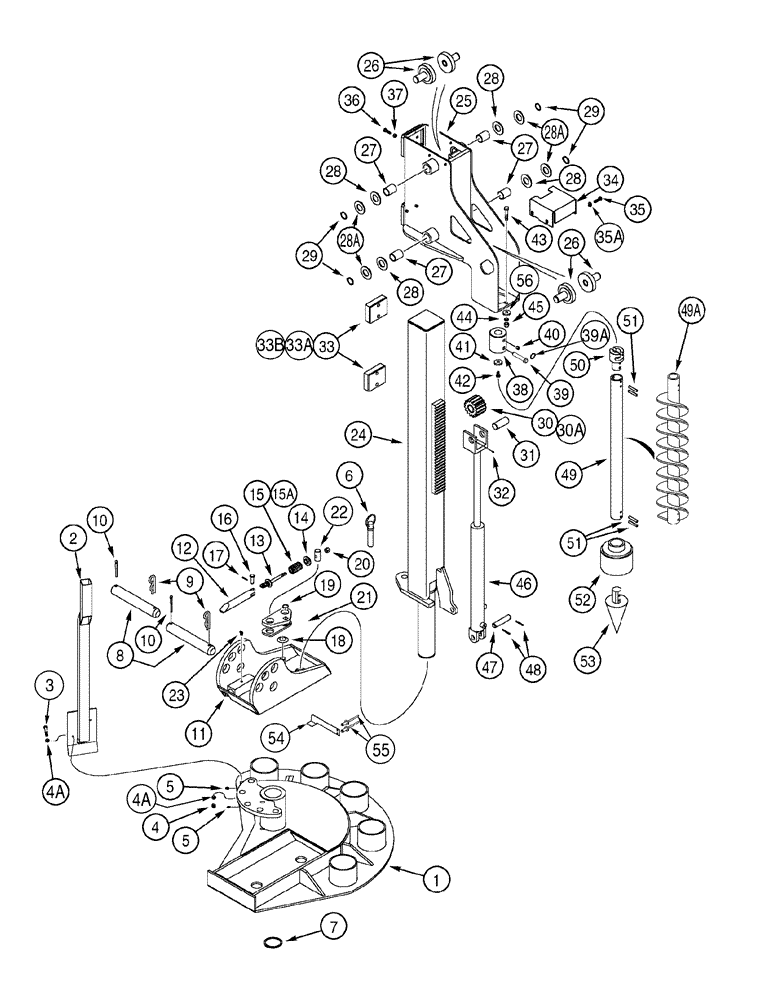

Запчасти Case 6030 (09-14) - STAKEDOWN (09) - CHASSIS/ATTACHMENTS

1

326057A3

BASE

1шт.

2

353349A2

SUPPORT

1шт.

3

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

4

231-4146

NUT,3/8"-16, GB

1шт.

4a

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

6

352609A1

PIN

Quick Release

1шт.

7

103-11300

SNAP RING,#300, Ext

1шт.

8

329292A1

PIN

Base Adjusting

2шт.

9

352608A1

PIN

2шт.

10

432-2448

COTTER PIN,3/8" x 3"

3/8" x 3"

2шт.

11

326058A3

BRACKET

Quick Attach, Replaces 236058A2

1шт.

12

240484A1

PIN,31.83mm OD x 206mm L

1шт.

13

410762A1

ROD

1шт.

14

240486A1

GUIDE

1шт.

15

A27289

SPRING

No Longer Used, Order 15A

1шт.

15a

401539A1

SPRING

Has Additional Coil

1шт.

16

728-1240

CLEVIS PIN,M12 x 40

1шт.

17

733-3220

COTTER PIN,M3.2 x 20

1шт.

18

A76552

SPRING

1шт.

19

800-1124

SNAP RING,M22, Ext

1шт.

20

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

21

329285A2

HANDLE

1шт.

22

H436001

TRUNNION

1шт.

23

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

Used with 326058A2

1шт.

23

219-92

LUBE NIPPLE,90 Degree Elbow, 1/8" NPTF

Used With 326058A3

1шт.

24

326055A2

POST

1шт.

25

339329A1

HEAD

1шт.

26

339320A1

PIN ASSY.

4шт.

27

325868A1

BUSHING

4шт.

28

496-11131

WASHER,1 5/16" x 2 1/2" x .150", HDN

No Longer Used, Order H113241

4шт.

H113241

BEARING WASHER

4шт.

28a

HI59160

4шт.

29

103-11125

SNAP RING,#125, Ext

4шт.

30

325857A1

GEAR

Includes 30A

1шт.

30a

325977A1

BUSHING

2шт.

31

329221A1

SHAFT

1шт.

32

483-2088

SCREW

1шт.

33

339313A1

PLATE

2шт.

33a

325864A1

WEAR PAD

2шт.

33b

461-4258

HEX SOC SCREW,Flat Hd, 1/4"-20 x 1/2"

4шт.

34

348905A1

COVER

1шт.

35

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

4шт.

35a

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

Not Illustrated

4шт.

36

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

37

425-106

NUT,3/8"-16, Cl 5

4шт.

38

325848A1

COUPLING

Auger

1шт.

39

379873A1

PIN

1шт.

39a

100-3362

SNAP RING,#62, .480" Dia, E-Type

1шт.

40

83-1508

SET SCREW,Hex Soc, 1/2"-13 x 1/2"

1шт.

41

325979A1

WASHER

1шт.

42

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

43

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

44

95-81207

WASHER,0.53" ID x 0.81" OD x 0.07" Thk

2шт.

45

231-4148

NUT,1/2"-13, GB

2шт.

46

329251A2

CYLINDER

Stakedown Control, See Page(s) 8-81

1шт.

47

329254A1

PIN

1шт.

48

432-1224

COTTER PIN,3/16" x 1-1/2"

2шт.

49

325858A1

TUBE,54 mm OD, 768.6 mm Length

Auger, Plain, If Used

1шт.

49a

400654A1

TUBE

Auger, Spiral, If Used

1шт.

50

325849A2

END

1шт.

51

38-32432

PIN,3/8" x 2", Coiled

3/8" x 2", Coiled

4шт.

52

325862A1

COLLAR

1шт.

53

325291A1

AUGER

1шт.

54

383470A1

PLATE

Spring, Quick Attach

1шт.

55

151-509

RIVET,Pop, 3/16" x .325"

2шт.

56

496-11131

WASHER,1 5/16" x 2 1/2" x .150", HDN

3шт.
