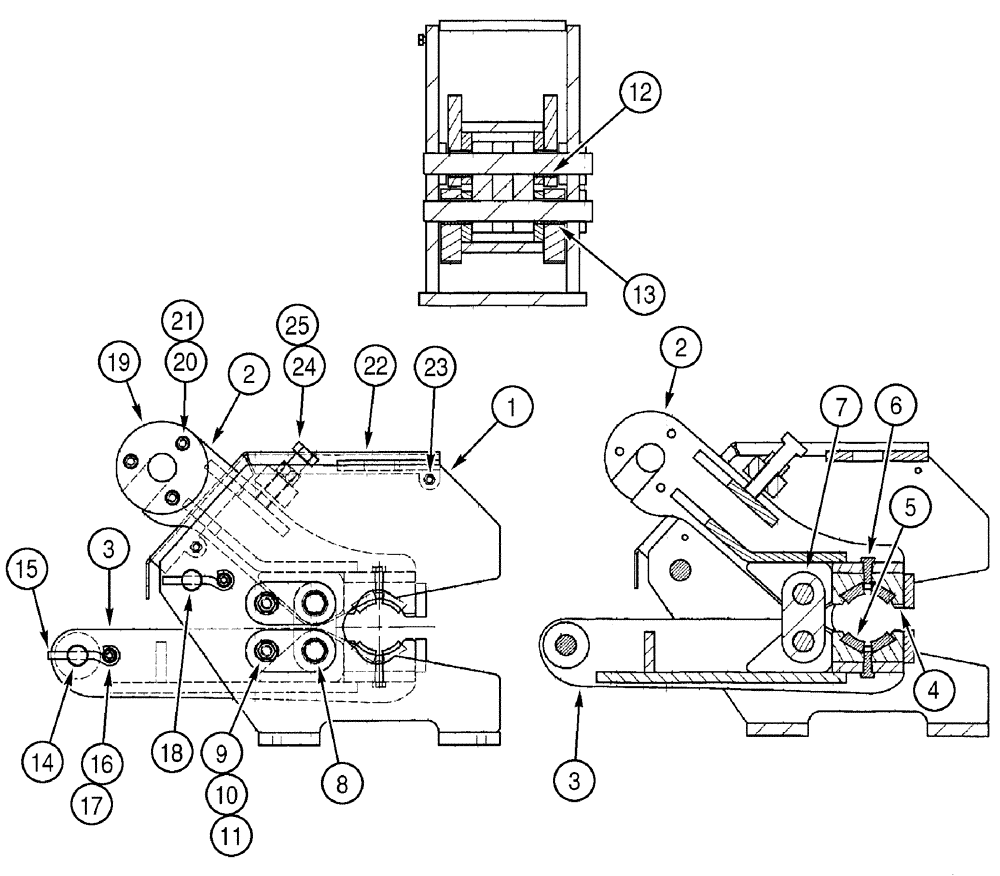

Запчасти Case 6030 (09-13) - WRENCH, POWER, FIXED, CLAMP ASSY (09) - CHASSIS/ATTACHMENTS

Fixed, Clamp Assy

1шт.

NSS

NOT SOLD SEPARAT

Wrench, Fixed, Clamp Assy, Not Serviced As An Assembly, Consists Of 1 - 25

1шт.

1

339309A4

HOUSING

1шт.

2

382583A3

CLAMP

Upper

1шт.

3

382569A2

BRACKET

Lower

1шт.

4

378920A1

INSERT

2шт.

5

349369A1

INSERT

4шт.

6

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

7

382578A3

LINK ASSY.

1шт.

8

388588A1

PIN

2шт.

9

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

10

49335K

SPACER,1/2" X-Strng Pipe x .406"

2шт.

11

496-21053

WASHER,17/32" x 1 1/16" x .134"

2шт.

12

382564A1

BUSHING

2шт.

13

64601C1

BUSHING

2шт.

14

382572A1

PIN

1шт.

15

H313981

PIN

2шт.

16

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

17

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

18

325991A1

PIN

1шт.

19

349419A1

PLATE

2шт.

20

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

21

492-11038

LOCK WASHER,3/8"

6шт.

22

383674A2

GUARD

Mud

1шт.

23

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

24

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

25

425-1012

NUT,3/4"-10, G5

1шт.
