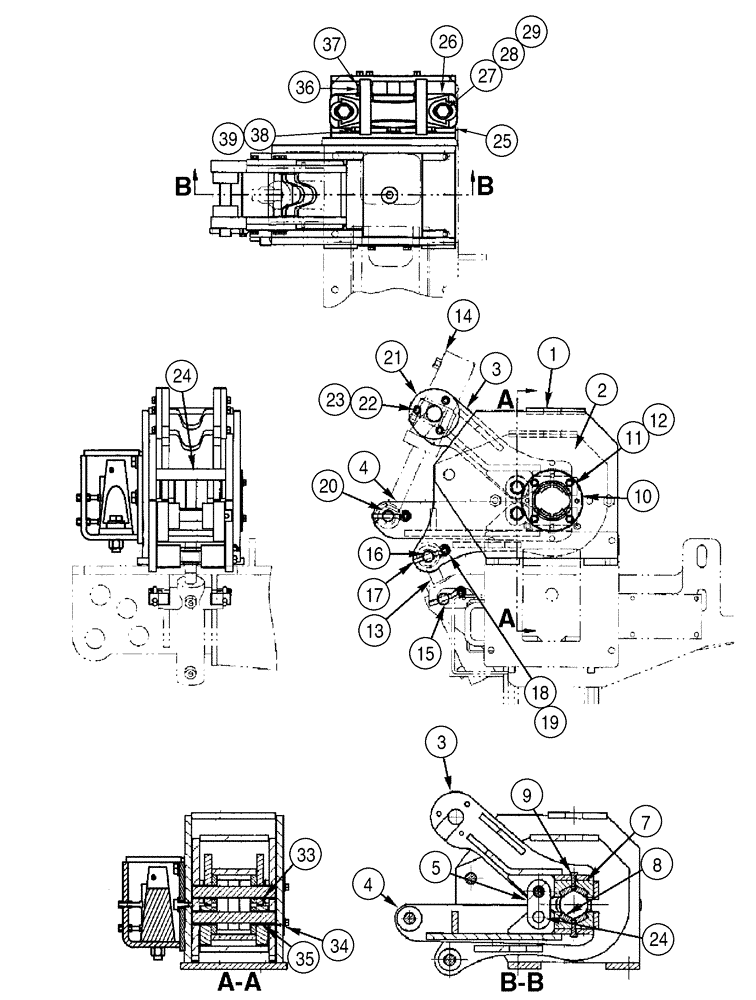

Запчасти Case 6030 (09-12) - WRENCH, POWER, ROTATE, JAW CLAMP (09) - CHASSIS/ATTACHMENTS

Rotate, Jaw Clamp

1шт.

NSS

NOT SOLD SEPARAT

Wrench, Rotate, Jaw Clamp, Not Serviced As An Assembly, Consists Of 1 - 12, 15 - 35

1шт.

1

339311A2

HOUSING ASSY.

Outer

1шт.

2

382573A4

HOUSING

Inner

1шт.

3

382583A3

CLAMP

Upper

1шт.

4

382569A2

BRACKET

Lower

1шт.

5

382578A3

LINK ASSY.

1шт.

7

378920A1

INSERT

2шт.

8

349369A1

INSERT

4шт.

9

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

10

325985A2

TRUNNION

2шт.

11

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

8шт.

12

492-11038

LOCK WASHER,3/8"

8шт.

13

135825A1

CYLINDER,Double Acting, 25.4mm Rod, 142.7mm Stroke

Power Wrench Rotate, Not Included In Assembly, Purchase Separately, See Page(s) 8-79

1шт.

14

384320A1

CYLINDER

Power Wrench Clamp, Not Included In Assembly, Purchase Separately, See Page(s) 8-77

2шт.

Rotate, Jaw Clamp

1шт.

NSS

NOT SOLD SEPARAT

Wrench, Continued From Previous Page

1шт.

15

127396A1

PIVOT PIN

2шт.

16

325991A1

PIN

1шт.

17

H313981

PIN

Retainer

4шт.

18

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

19

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

20

382572A1

PIN

1шт.

21

349419A1

PLATE

2шт.

22

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

6шт.

23

492-11038

LOCK WASHER,3/8"

6шт.

24

388589A1

PIN

Stop

3шт.

25

393145A1

MOUNTING PARTS

Drill Pipe Wiper

1шт.

26

393693A1

BEARING CARRIER

1шт.

27

426-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

2шт.

28

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

2шт.

29

232-41112

NUT,3/4"-10, GC

2шт.

32

231-4146

NUT,3/8"-16, GB

2шт.

33

64601C1

BUSHING

4шт.

34

97772C1

BUSHING

2шт.

35

382565A1

BUSHING

2шт.
