Запчасти Case 6030 (09-11) - WRENCH, POWER MOUNTING (09) - CHASSIS/ATTACHMENTS

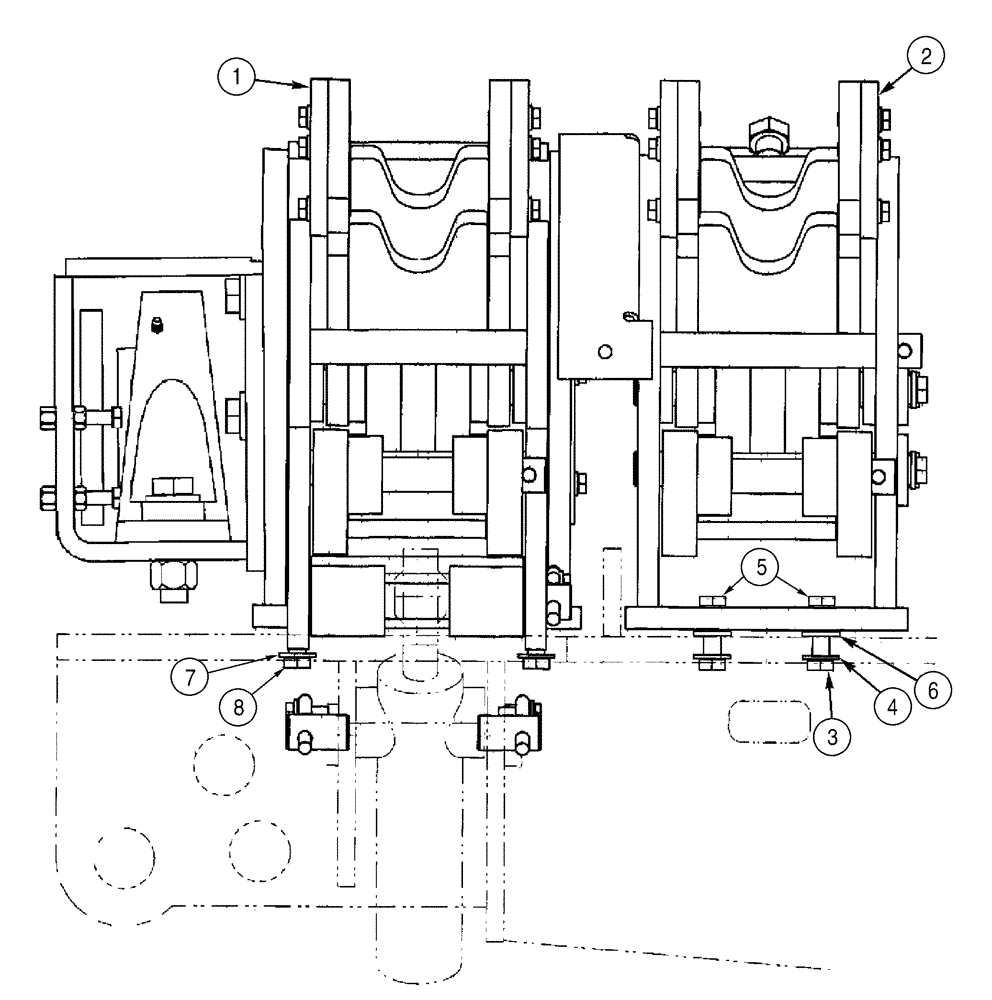

Схема запчастей Case 6030 - (09-11) - WRENCH, POWER MOUNTING (09) - CHASSIS/ATTACHMENTS
3
8
7
2
6
1
4
5

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Wrench, Rotate, Jaw Clamp, Not Serviced As An Assembly, See Page(s) 9-33, 9-35

1шт.

2

NSS

NOT SOLD SEPARAT

Wrench, Fixed, Clamp Assy, Not Serviced As An Assembly, See Page(s) 9-37

1шт.

3

426-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

4шт.

4

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

No Longer Used, Order 496-41081

8шт.

496-41081

WASHER,13/16" x 1 3/4" x .219", HDN

8шт.

5

232-41112

NUT,3/4"-10, GC

4шт.

6

H434644

SPACER

8шт.

7

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

8

496-11053

WASHER,17/32" x 1 1/16" x .095", HDN

4шт.

Выбрано товаров: 9
