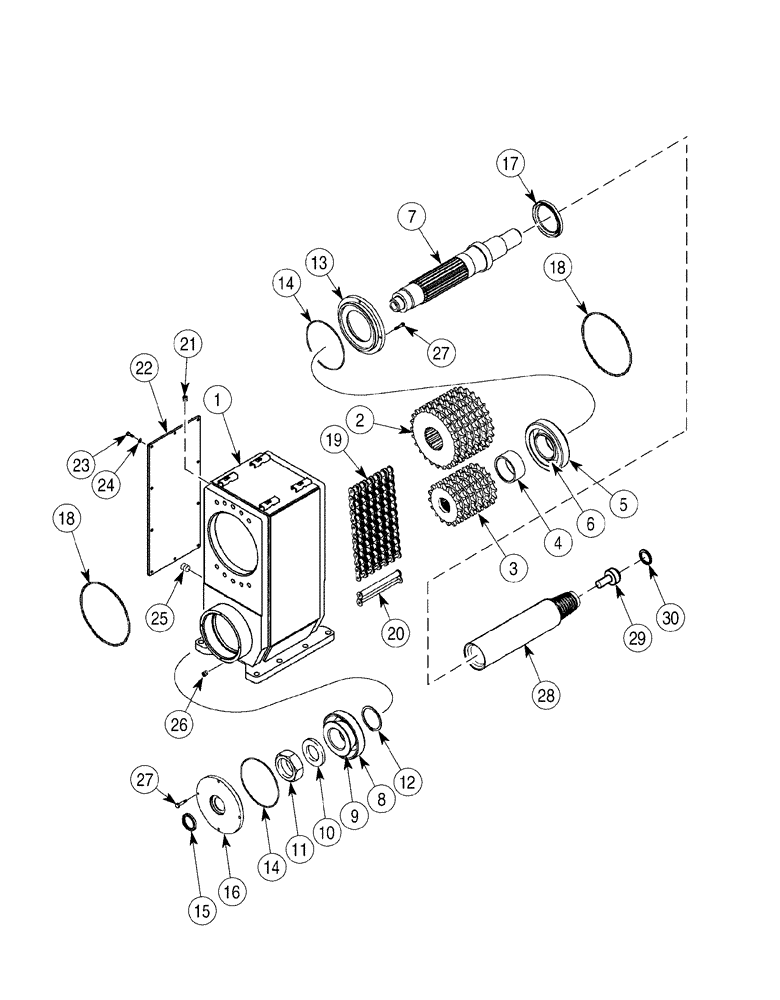

Запчасти Case 6030 (09-08) - DRIVE DRILL (09) - CHASSIS/ATTACHMENTS

362355A3

DRIVE ASSY.

Drill, Not Serviced As An Assembly, Order Components, Consists Of 1 - 27

1шт.

1

362354A1

HOUSING

1шт.

2

362107A1

SPROCKET ASSY.

No. 80; 28T

1шт.

3

362109A1

SPROCKET ASSY.

No. 80; 20 T

1шт.

4

339331A1

SPACER

1шт.

5

345802A1

BEARING CUP

1шт.

6

345801A1

ROLLER BEARING

1шт.

7

382643A2

SHAFT

Drill Drive

1шт.

8

345804A1

BEARING CUP

1шт.

9

345803A1

ROLLER BEARING,2.6875" ID

1шт.

10

395176A1

WASHER

1шт.

11

395178A1

BEARING LOCK NUT

1шт.

12

103-11300

SNAP RING,#300, Ext

1шт.

13

348859A1

CAP

1шт.

14

238-5259

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

2шт.

15

382295A1

SEAL

1шт.

16

382641A2

CAP

1шт.

362355A3

DRIVE ASSY.

Continued From Previous Page

1шт.

17

348860A1

SEAL

1шт.

18

238-5269

O-RING,0.139" Thk x 8.73" ID, -269, Cl 5, 75 Duro

2шт.

19

362224A1

CHAIN (AG)

80-6; 51P

1шт.

20

348171A1

LINK, CONNECTING

1шт.

21

R11152

FITTING

1/8 NPT

1шт.

22

362562A1

COVER

1шт.

23

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

10шт.

24

496-21028

WASHER,.281" x 5/8" x .075", HDN

9/32 x 5/8 x 5/64

10шт.

25

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

1шт.

26

217-432

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

27

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

8шт.

391840A1

SPINDLE

Spindle, Drill Pipe, Consists Of 28 - 30

1шт.

28

329394A3

SPINDLE

Replaces 329394A2

1шт.

29

387987A1

VALVE, PRESSURE RELI

EF , 60 psi

1шт.

30

100-21106

SNAP RING,1.06", Int, #106

1шт.
