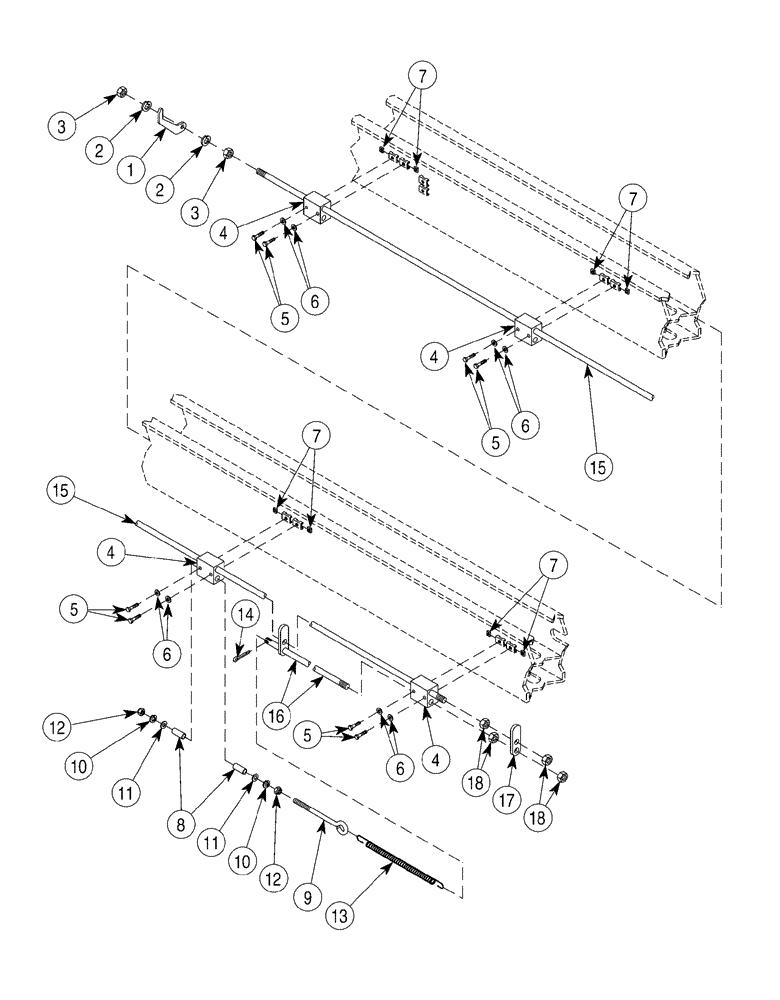

Запчасти Case 6030 (09-07) - INDICATOR DRILL DRIVE POSITION (09) - CHASSIS/ATTACHMENTS

369613A1

Not Serviced As An Assembly, Order Components, Consists Of 1 - 18

1шт.

1

360551A2

INDICATOR

Indicator

1шт.

2

493-21052

LOCK WASHER,Int Tooth, 1/2"

1/2, Internal Tooth

2шт.

3

425-108

NUT,1/2" - 13, Gr 5

2шт.

4

360492A1

BLOCK

Alignment

4шт.

5

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

8шт.

6

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

8шт.

7

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

8шт.

8

369612A1

SPACER

6,35 ID x 12,7 OD x 38,1

2шт.

9

369611A1

BOLT

1/4 x 5

1шт.

10

492-11025

LOCK WASHER,1/4"

2шт.

11

496-21028

WASHER,.281" x 5/8" x .075", HDN

9/32 x 5/8 x 5/64, Hardened

2шт.

12

425-104

NUT,1/4"-20, Cl 5

2шт.

13

366421A1

SPRING

1шт.

14

432-1012

COTTER PIN,5/32" x 3/4"

5/32" x 3/4"

1шт.

15

360490A1

ROD

Indicator

1шт.

16

374669A1

LOCK

Alignment

1шт.

17

360489A2

PLATE

1шт.

18

425-108

NUT,1/2" - 13, Gr 5

4шт.
