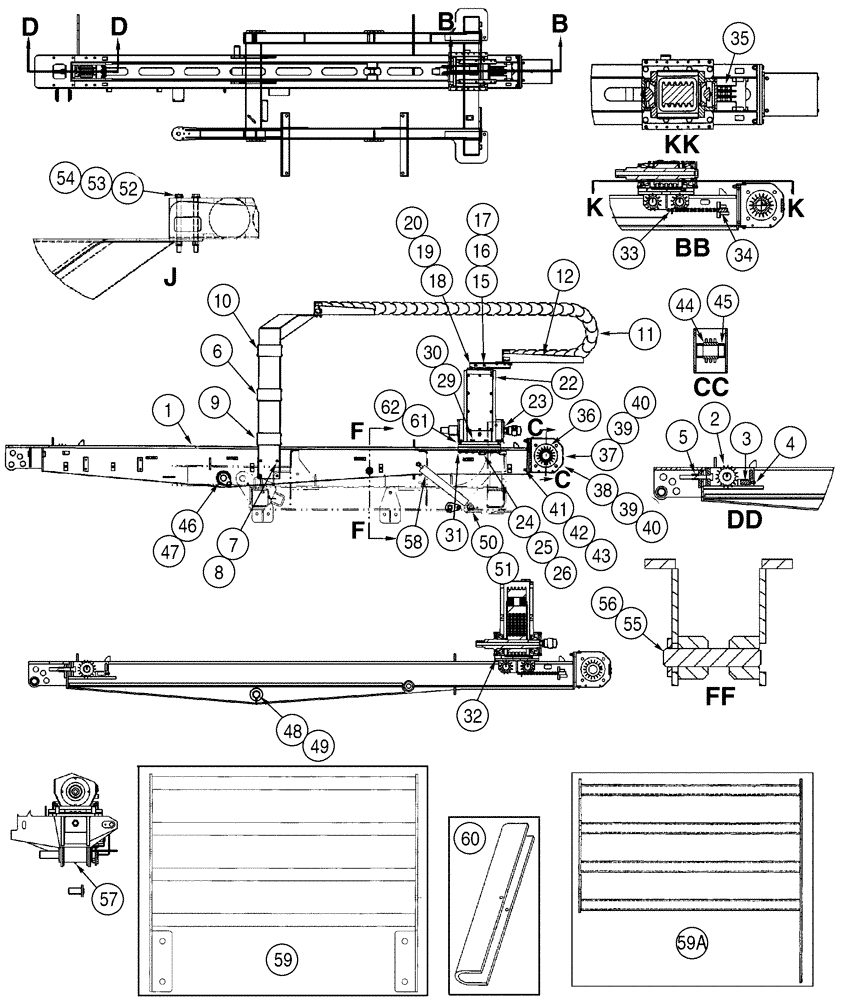

Запчасти Case 6030 (09-06) - BOOM (09) - CHASSIS/ATTACHMENTS

1

329271A3

BOOM

1шт.

2

329224A2

TENSIONER

See Page(s) 9-27

1шт.

3

326081A1

PLATE

Dead End Plate

1шт.

4

338597A1

LINK

1шт.

5

429-1016

NUT,1"-8, G8

2шт.

6

376445A3

BRACKET

Mounting, Power Tube

1шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

8

231-1446

NUT,3/8" - 16, Gr 5

4шт.

9

374306A1

BRACKET

Hose Retaining

3шт.

10

231-5345

FLANGE NUT,Flg, 5/16"-18

12шт.

11

393981A1

PLASTIC-RUBBER TUBE

1шт.

12

394001A1

BRACKET

1шт.

12a

374483A3

BRACKET

1шт.

15

372405A3

BRACKET

Mounting, Power Tube

1шт.

16

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

17

232-4115

LOCK NUT,5/16"-18, GC

3шт.

18

372404A2

BRACKET

Mounting, Manifold

2шт.

19

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

4шт.

20

224-2206

SQUARE NUT,Sq, 3/8"-16

4шт.

22

362355A3

DRIVE ASSY.

Drill Drive, See Page(s) 9-23, 9-25

1шт.

23

394607A1

COUPLING

1шт.

24

339340A1

BAR

Lower

2шт.

25

329314A1

SHIM

2шт.

26

329313A1

BAR

2шт.

27

329312A1

BAR

Upper

2шт.

28

329315A1

PLATE

Slide

2шт.

29

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

8шт.

30

492-11062

BEARING WASHER,5/8"

8шт.

31

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

32

329225A1

DRILL

Drill Drive, See Page(s) 9-29

1шт.

33

338595A1

CHAIN (AG)

1шт.

34

326081A1

PLATE

Dead End Plate

1шт.

35

338597A1

LINK

1шт.

36

329240A2

BRACKET

Chain Drive Motor

1шт.

37

339287A2

COVER

1шт.

38

329245A2

COVER

1шт.

39

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

6шт.

40

496-21028

WASHER,.281" x 5/8" x .075", HDN

6шт.

41

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

42

496-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

43

231-1448

NUT,1/2"-13, GB

4шт.

44

329246A1

SPROCKET ASSY.

1шт.

45

329340A1

SPACER

2шт.

46

413-1216

BOLT,Hex, 3/4" - 10 x 1", Gr 5

1шт.

47

329318A2

PIN

1шт.

48

329289A1

SPACER

1шт.

49

339210A1

BUSHING

2шт.

50

329375A1

PIN ASSY.

1шт.

51

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

52

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

8шт.

53

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

8шт.

54

231-1445

NUT,5/16"-18, GB

8шт.

55

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

56

329321A2

PITMAN

1шт.

57

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

58

335700A1

CYLINDER

Boom, See Page(s) 8-85

1шт.

59

348840A1

GUARD

1шт.

59a

383982A2

GUARD

1шт.

60

375113A2

BRACKET

Cylinder Lock, Replaces 375113A1

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Used With 348840A1

4шт.

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

Used with 348840A1

4шт.

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

Used with 348840A1

4шт.

61

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

62

232-1446

NUT,3/8"-16, GC

4шт.
