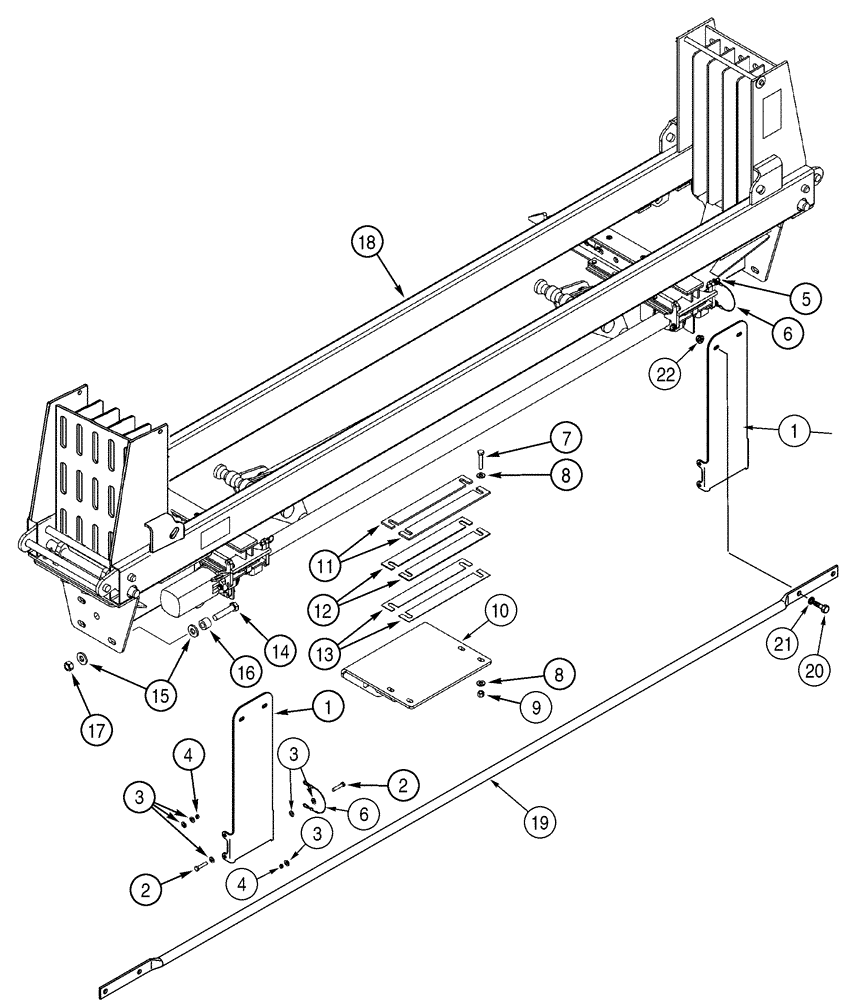

Запчасти Case 6030 (09-05) - DRILL PIPE LOADER PLATE TO BRACKET (09) - CHASSIS/ATTACHMENTS

, Serial Range: Plate-Bracket

1шт.

1

379938A2

GUARD

2шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

3

496-21041

WASHER,13/32" x 13/16" x .089", HDN

14шт.

4

231-4146

NUT,3/8"-16, GB

4шт.

5

D94535

PIN,9.52mm OD

Locking

2шт.

6

L78786

CABLE RETAINER

Retainer

2шт.

7

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

4шт.

8

496-21053

WASHER,17/32" x 1 1/16" x .134"

8шт.

9

231-4148

NUT,1/2"-13, GB

4шт.

10

348799A2

SUPPORT

Center Support, No Longer Available, Order 348799A3

1шт.

10a

348799A3

SUPPORT

Center Support

1шт.

11

381692A1

SHIM

2шт.

12

381693A1

SHIM

2шт.

13

381694A1

SHIM

2шт.

14

426-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

6шт.

15

496-41081

WASHER,13/16" x 1 3/4" x .219", HDN

12шт.

16

376446A1

SPACER

6шт.

17

429-1012

NUT,3/4"-10, G8

6шт.

18

393823A1

FRAME

Drill Pipe Storage Rack, Not Serviced As An Assembly, Order Components, For Component Parts, See Page(s) 9-13

1шт.

19

394143A1

BAR

Guard

1шт.

20

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

21

496-21041

WASHER,13/32" x 13/16" x .089", HDN

8шт.

22

231-5146

FLANGE NUT,3/8"-16

4шт.
