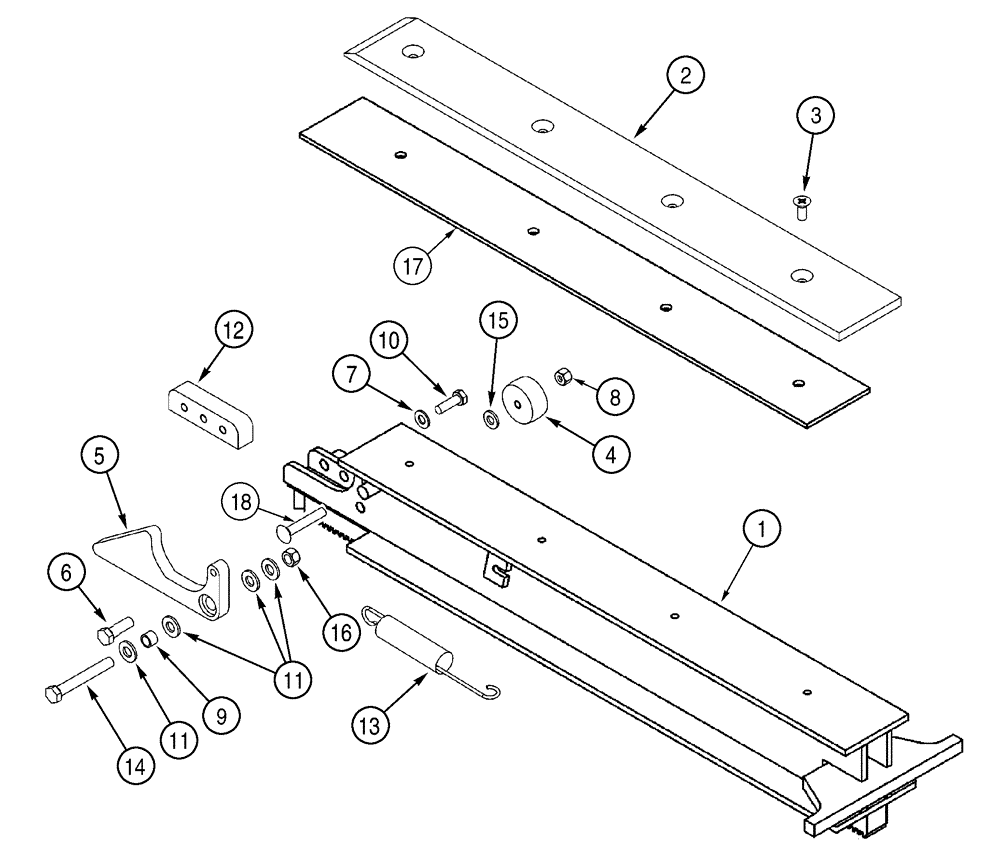

Запчасти Case 6030 (09-02) - MOVER ASSY, SLIDE RAIL DRILL PIPE LOADER (09) - CHASSIS/ATTACHMENTS

Drill Pipe Loader

1шт.

325940A2

REGULATING SYSTEM

Slider/Mover Assy, For Drill Pipe Loader Assy, Not Serviced As An Assembly, Order Components, Consists Of 1 - 18

1шт.

1

325933A3

CARRIER ASSY.

Rail

1шт.

2

325943A2

WEAR PLATE

1шт.

3

443-13112

SCREW,Cross Flat Hd, 5/16"-18 x 3/4"

4шт.

4

353018A1

WHEEL

1шт.

5

394434A1

PLATE

1шт.

6

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

7

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

8

231-4145

NUT,5/16"-18, GB

1шт.

9

368850A1

SPACER

1шт.

10

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

11

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

12

348425A2

WEAR PLATE

Wear Bar

1шт.

13

H128280

VALVE SPRING

Tension Adjusting

1шт.

14

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

15

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

1шт.

16

231-4146

NUT,3/8"-16, GB

1шт.

17

394416A1

SHIM

1шт.

18

433-536

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 5

1шт.
