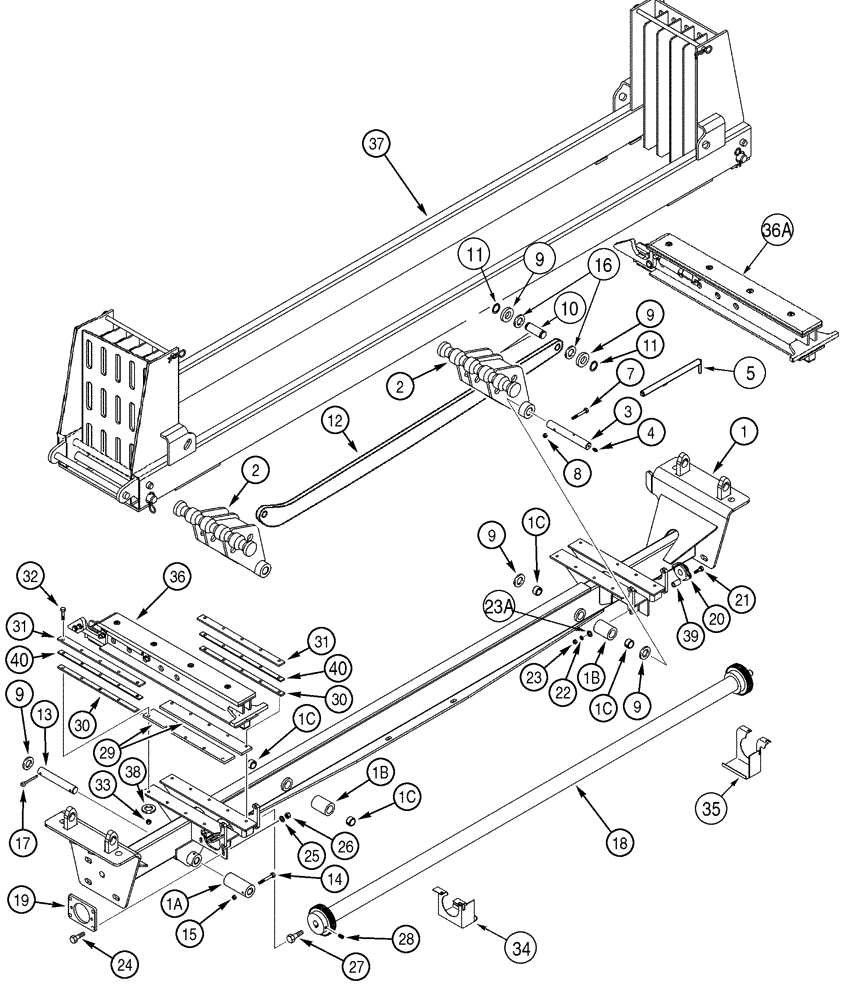

Запчасти Case 6030 (09-01) - DRILL PIPE LOADER (09) - CHASSIS/ATTACHMENTS

1

326020A3

FRAME

Drill Pipe Loader, Includes 1A, 1B

1шт.

1a

NSS

NOT SOLD SEPARAT

Bushing, Cylinder Bracket

1шт.

1b

NSS

NOT SOLD SEPARAT

Bushing, Tube, Welded-On

2шт.

1c

1337411C1

BUSHING

4шт.

2

393805A1

ARM

Pipe

2шт.

3

326013A1

PIN

Lift Arm

2шт.

4

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

5

394346A1

PIN

Stop

1шт.

7

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

2шт.

8

231-4144

NUT,1/4"-20, GB

2шт.

9

495-11106

WASHER,1", SAE

13шт.

10

347819A1

PIN

3шт.

11

100-11100

SNAP RING,#100, Ext

6шт.

12

326074A2

LINK

1шт.

13

326011A1

PIN

Cylinder

1шт.

14

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

1шт.

15

231-4144

NUT,1/4"-20, GB

1шт.

16

496-21106

WASHER,1 1/16" x 2" x .209", HDN

1шт.

17

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

1шт.

18

325950A1

SHAFT

1шт.

19

326009A2

FLANGE

1шт.

20

377255A1

FLANGED BEARING

2шт.

21

426-740

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 8

2шт.

22

496-21047

WASHER

4шт.

23

232-4117

LOCK NUT,7/16"-14, GC

2шт.

23a

495-11094

WASHER,7/8", SAE

5шт.

24

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

25

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

26

231-4146

NUT,3/8"-16, GB

4шт.

27

380-2824

12 PT SCREW,Flg, 1/2" - 13 x 1 1/2"

2шт.

28

83-13816

SET SCREW,Hex Soc, 3/8"-16 x 1"

1шт.

29

326032A2

PLATE

Slider/Mover Assy, Lower

4шт.

30

326031A1

PLATE

Slider/Mover Assy, Middle

4шт.

31

326014A1

PLATE

Slider/Mover Assy, Upper

4шт.

32

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

20шт.

33

231-4145

NUT,5/16"-18, GB

20шт.

34

394061A1

COVER

Rod Loader, Front

1шт.

35

394060A1

COVER

Rod Loader, Rear

1шт.

36

325940A2

REGULATING SYSTEM

Slider/Mover Assy, Not Serviced As An Assembly, Order Components, For Component Parts, See Page(s) 9-9

1шт.

36a

394152A1

Drill Pipe, Not Serviced As An Assembly, Order Components, For Component Parts, See Page(s) 9-11

1шт.

37

393823A1

FRAME

Drill Pipe Storage Rack, Not Serviced As An Assembly, Order Components, For Component Parts, See Page(s) 9-13

1шт.

38

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

20шт.

39

276884A1

SPACER

No Longer Used, Order 412245A1

2шт.

412245A1

SPACER

2шт.

40

366184A1

SPACER

4шт.

41

H674930

STEERING CYLINDER

Loader, See Page(s) 8-75, Not Illustrated

2шт.
